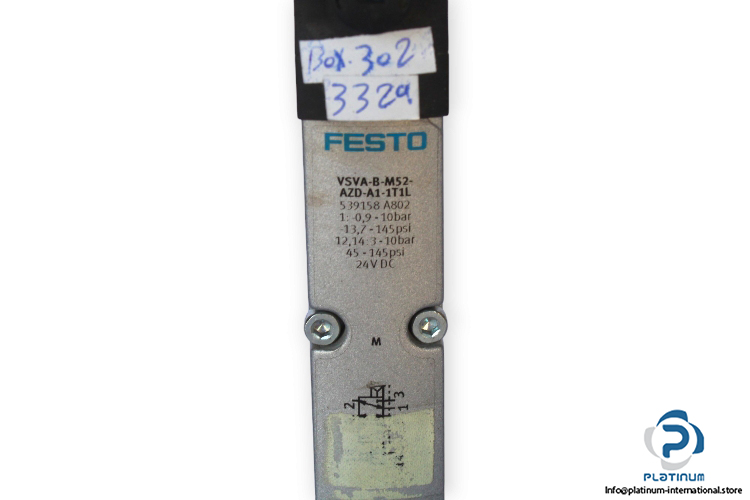

FESTO VSVA-B-M52-AZD-A1-1T1L AIR SOLENOID VALVE WITH 688865 COIL

The FESTO VSVA-B-M52-AZD-A1-1T1L is a high-performance 5/2-way monostable air solenoid valve designed for demanding pneumatic applications. Featuring a piston gate valve design, it delivers excellent flow capacity and operational reliability in a compact footprint. This valve comes with a FESTO 688865 solenoid coil for precise actuation and robust protection.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-AZD-A1-1T1L
Part No.: 539158

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminum / PA
• Ambient Temperature: -5 / 50 °C

Attachment: FESTO 688865 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 688865

• Voltage: 24 V DC
• Power Consumption: 1.6 W
• Protection Class: IP65
