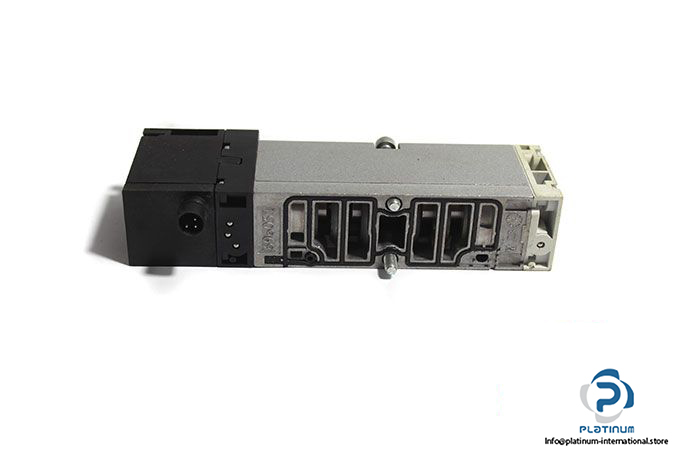

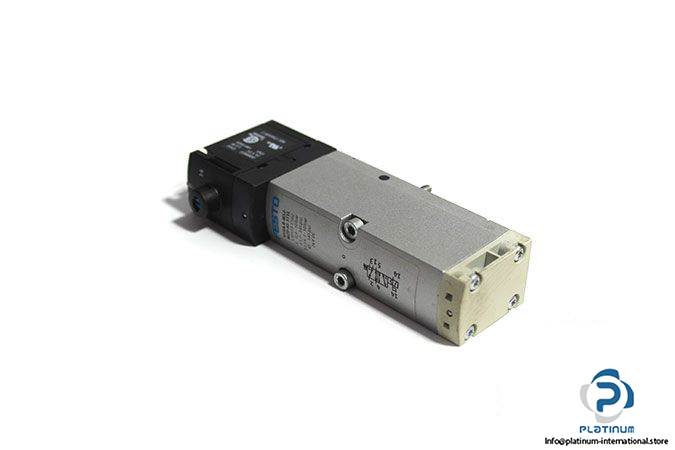

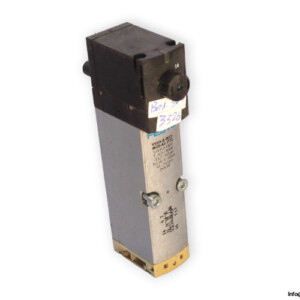

FESTO VSVA-B-M52-MZD-A1-1T1L SINGLE SOLENOID VALVE WITH COIL

The FESTO VSVA-B-M52-MZD-A1-1T1L is a high-performance single solenoid valve designed for fast and reliable pneumatic operations. Featuring a 5/2-way monostable function, durable die-cast aluminium body, and an electrically actuated piston gate design, this valve is ideal for automation systems. It includes the FESTO 688865 solenoid coil for precise control and long-term performance.

Manufacturer: FESTO
Type: Single Solenoid Valve

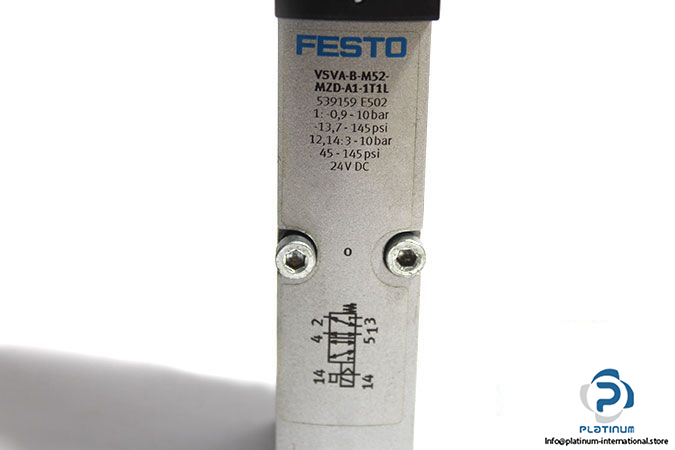

Model: VSVA-B-M52-MZD-A1-1T1L
Part No.: 539159

Technical Information

• Fluid: Air
• Design Structure: Piston gate valve
• Valve Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 / 10 bar
• Nominal Flow Rate: 1100 l/min
• Supply Voltage: 24 V DC
• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminium / PA
• Ambient Temperature: -5 / 50 °C

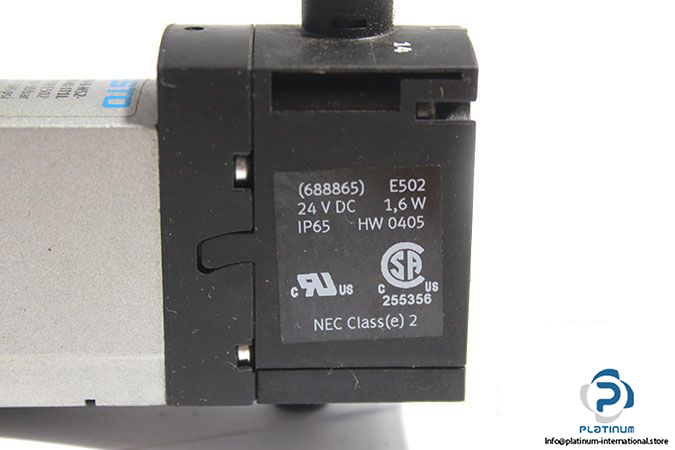

Attachment: FESTO 688865 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Part No.: 688865

Solenoid Coil Technical Information

• Supply Voltage: 24 VDC
• Power Consumption: 1.6 W
• Protection Class: IP65
