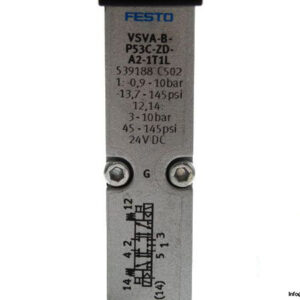

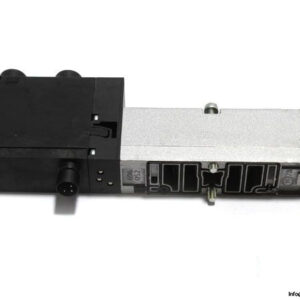

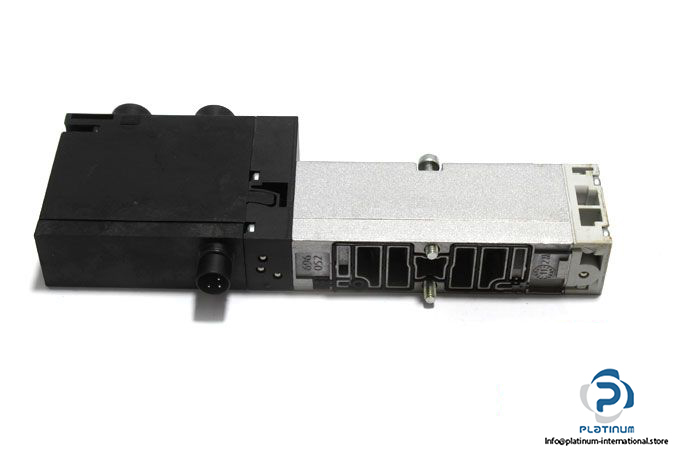

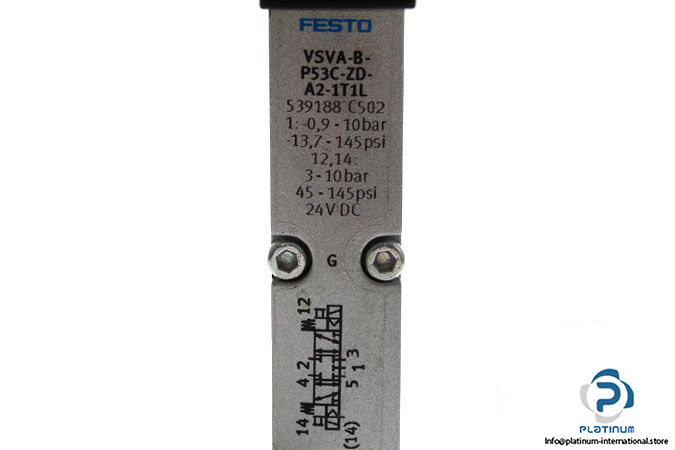

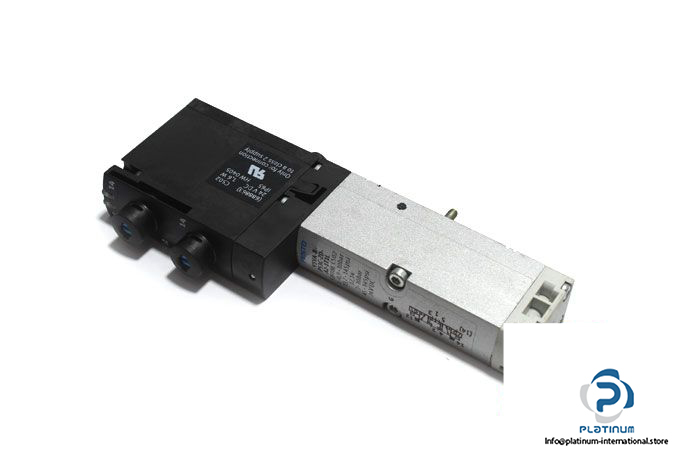

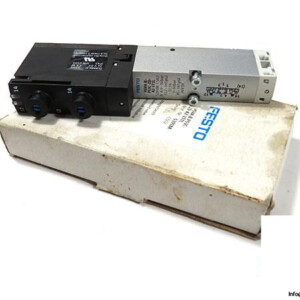

FESTO VSVA-B-P53C-ZD-A2-1T1L SINGLE SOLENOID VALVE WITH COIL

The FESTO VSVA-B-P53C-ZD-A2-1T1L is a high-performance 5/3 way single solenoid valve designed for precise pneumatic control. It is equipped with a sub-base connection and operates reliably across a wide pressure and temperature range. The valve is paired with the FESTO 688863 solenoid coil, ensuring energy-efficient electrical actuation with a high protection rating.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: VSVA-B-P53C-ZD-A2-1T1L
Part No.: 539188

Technical Information

• Fluid: Air
• Valve Function: 5/3 Way, Closed
• Type of Actuation: Electrical
• Working Pressure: -0.9 / 10 bar
• Flow Rate: 700 l/min
• Hydraulic Connection: Sub-base
• Fluid Temperature Range: -20 / 80 °C

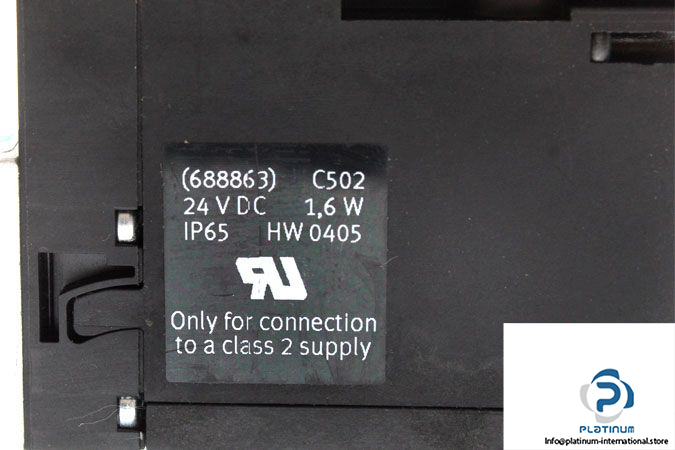

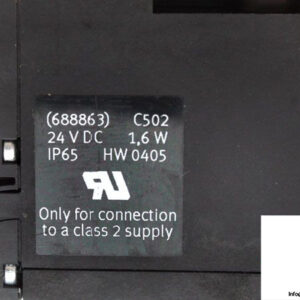

Attachment: FESTO 688863 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: 688863

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1 W
• Protection Class: IP65
