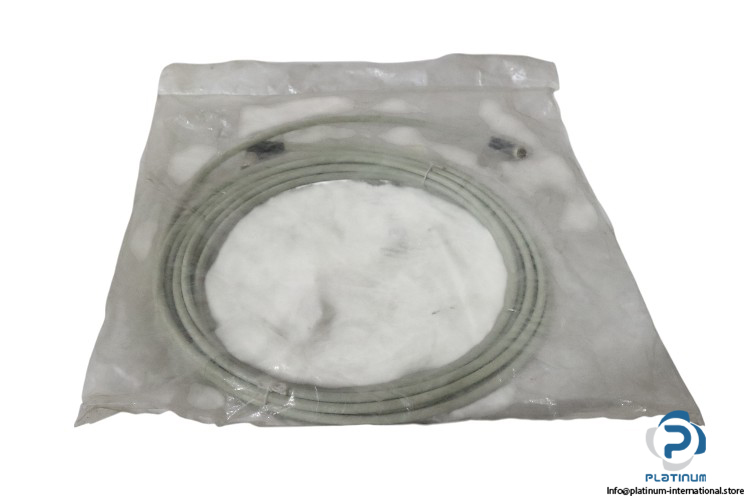

Festo KVI-CP-3-WS-WD-5 “ Connecting Cable
The Festo KVI-CP-3-WS-WD-5 is a high-quality connecting cable designed to provide reliable connectivity for industrial field devices and controllers. Featuring IP65/67 protection and a robust build, this cable is ideal for use in harsh environments.
- Manufacturer: Festo
- Type: Connecting Cable
- Model: KVI-CP-3-WS-WD-5
- Part No.: 540330
- Series: J4 (064)

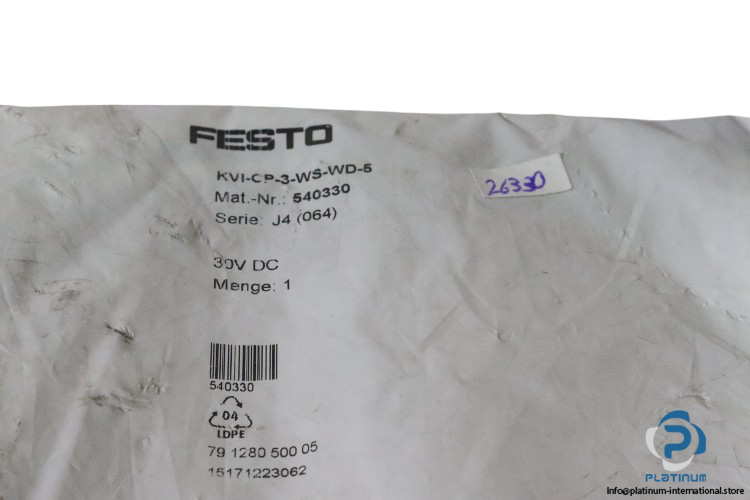

- Reference No.: 79 1280 500 05 / 15171223062 / 540330
Technical Information:
- Operating Voltage: 30 V DC
- Current: 1.6 A
- Electrical Connection 1/2, Connection Type: Socket/ Plug
- Electrical Connection 1/2, Function: Field device side/ Controller side

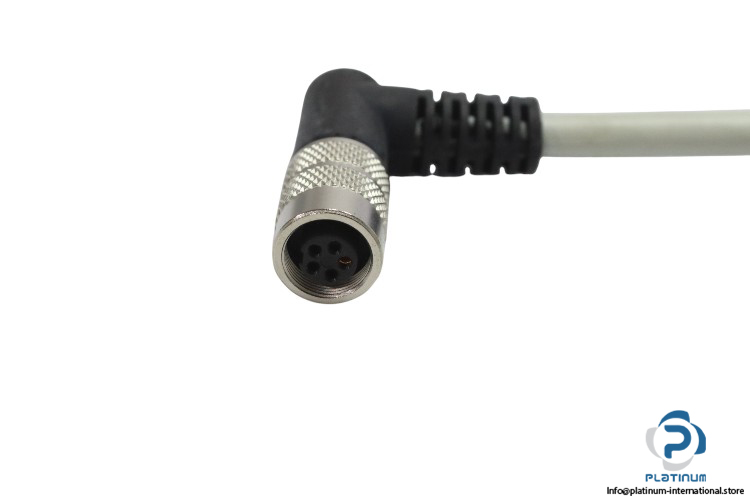

- Connection Technology: M9x0.5
- No. of Pins/Wires: 5
- Ambient Temperature: -20 to 80 °C
- Housing Material: PA, PBT, TPE-U(PUR)
- Cable Diameter: 5.5 mm
- Cable Length: 5 m
- Protection Class: IP65/67
