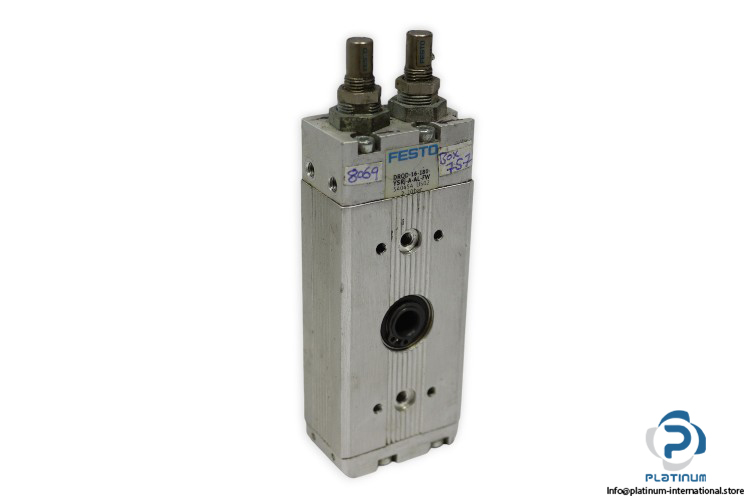

Manufacturer: FESTO
Type: Semi-rotary drive

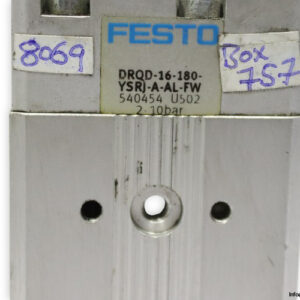

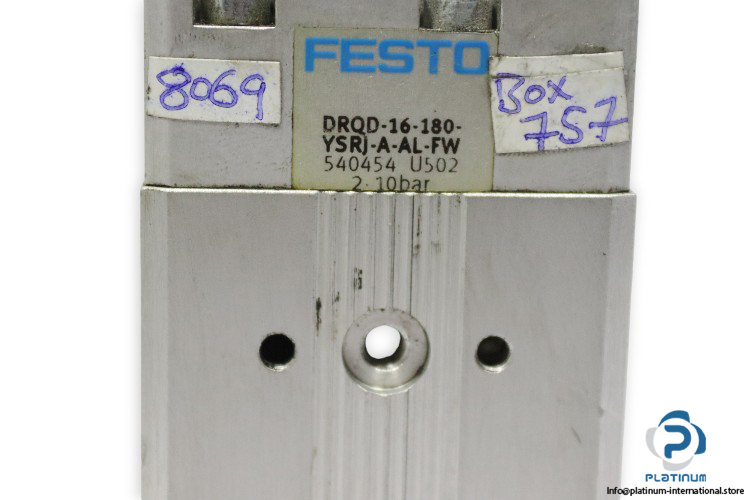

Model: DRQD-16-180-YSRJ-A-AL-FW
Part No.: 540454

Size: 16
Rotation angle adjustment range: -20 … 6 deg
 Swivel angle: 0 … 180 deg

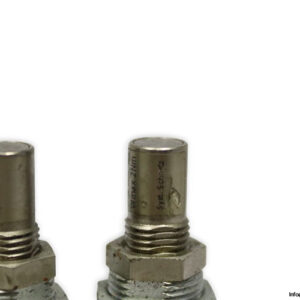

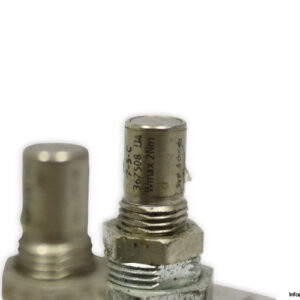

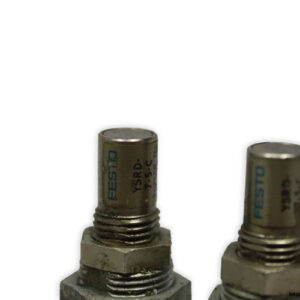

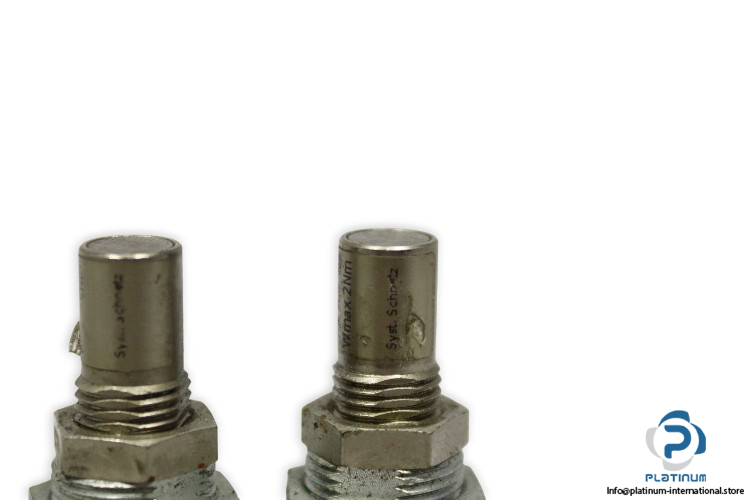

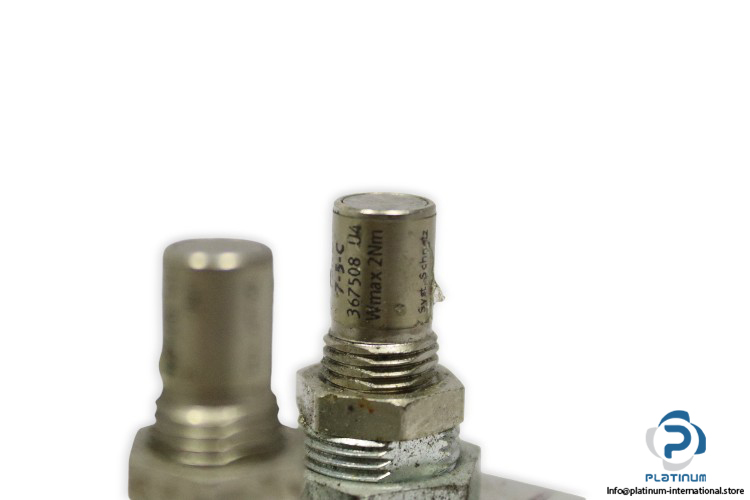

Cushioning: Shock absorber, hard characteristic curve, adjustable
Position detection: For proximity sensor
Operating pressure: 2 … 10 bar
Max. swivel frequency at 6 bar: 1.8 Hz
Mode of operation: double-acting
Operating medium: air
Corrosion resistance classification CRC: 1
Ambient temperature: -10 … 60 °C
Torque at 6 bar: 1.6 Nm
Connection: 5 mm
