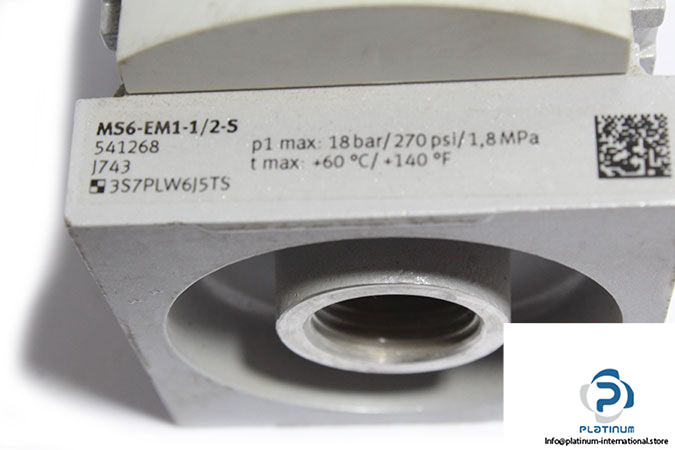

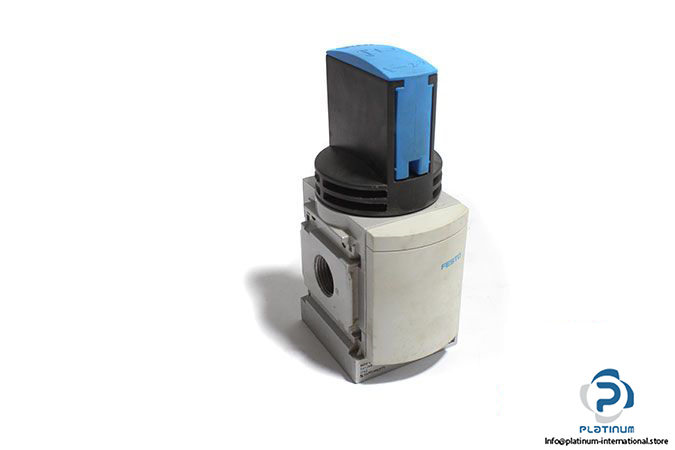

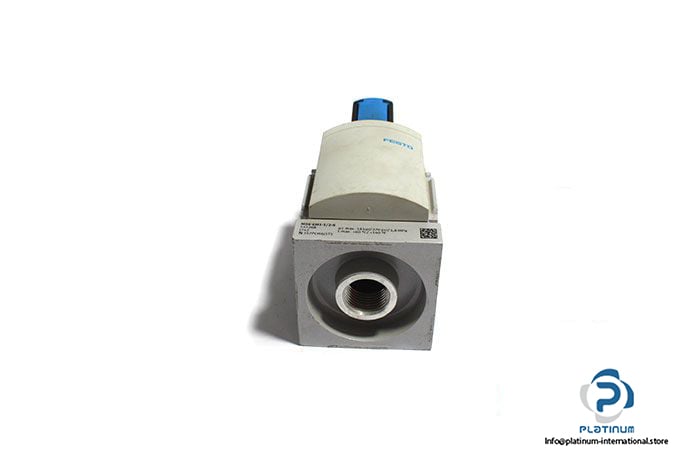

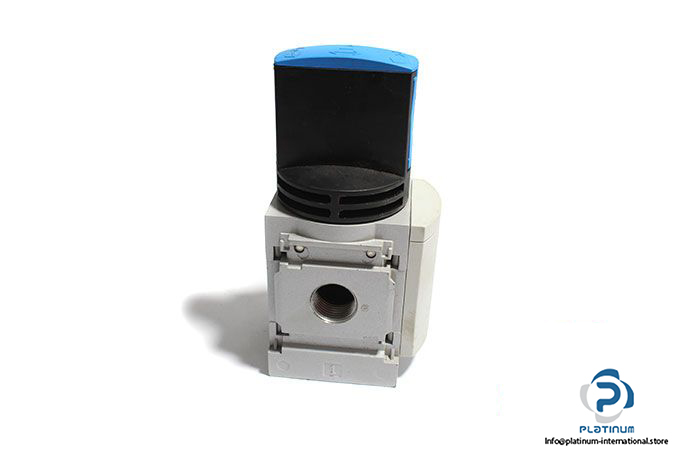

FESTO MS6-EM1-1/2-S ON/OFF VALVE

The FESTO MS6-EM1-1/2-S is a high-capacity manually actuated on/off valve engineered for precision air control in industrial pneumatic systems. Built with durable die-cast aluminum, this rotary gate valve ensures reliable bistable 3/2 functionality under demanding conditions.

Manufacturer: FESTO
Type: On/Off Valve
Model: MS6-EM1-1/2-S
Part No.: 541268

Technical Information

• Fluid: Air
• Design: Rotary gate valve
• Function: 3/2 bistable
• Type of Actuation: Manually
• Operating Pressure: 0 … 18 bar
• Nominal Flow Rate: 8700 l/min
• Pneumatic Connection: G1/2
• Material: Die-cast aluminum
• Ambient Temperature: -10 / 60 °C
