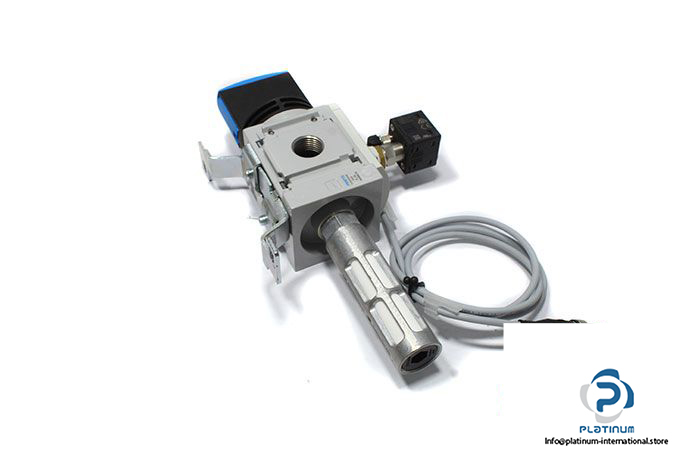

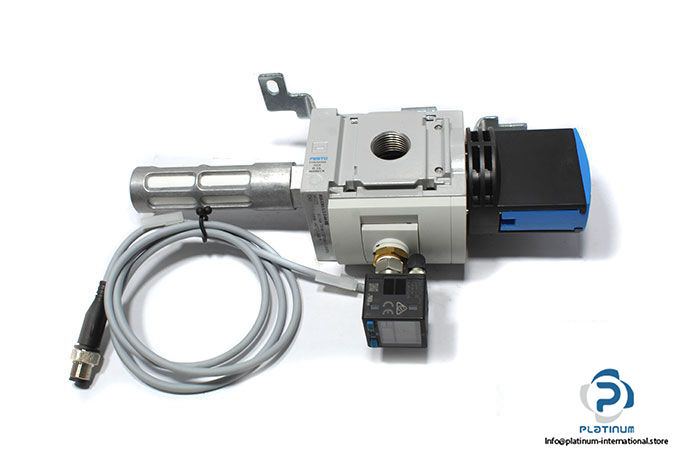

FESTO MS6-EM1-1/2-S-A4-WB ON/OFF VALVE WITH PRESSURE SENSOR
The FESTO MS6-EM1-1/2-S-A4-WB is a robust and efficient manually actuated on/off valve designed for high-performance pneumatic systems. With its rotary gate valve design and 3/2 bistable function, it handles large air volumes at pressures up to 18 bar. Integrated with the FESTO SPAB-P10R-G18-2P-M8 pressure sensor, the unit provides reliable pressure monitoring and control for critical applications.
Manufacturer: FESTO
Type: On/Off Valve

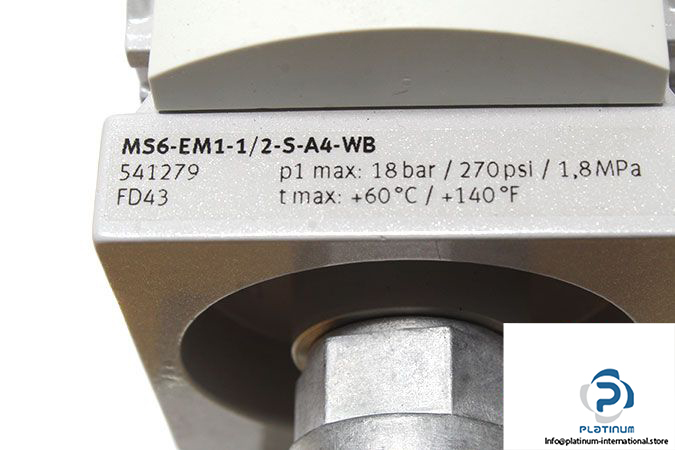

Model: MS6-EM1-1/2-S-A4-WB
Part No.: 541279
Valve Technical Information
- Fluid: Air
- Design: Rotary gate valve
- Function: 3/2 bistable
- Type of Actuation: Manually
- Operating Pressure: 0 / 18 bar
- Nominal Flow Rate: 3000 l/min
- Pneumatic Connection: G1/2
- Material: Die-cast aluminum
- Ambient Temperature: -10 / 60 °C

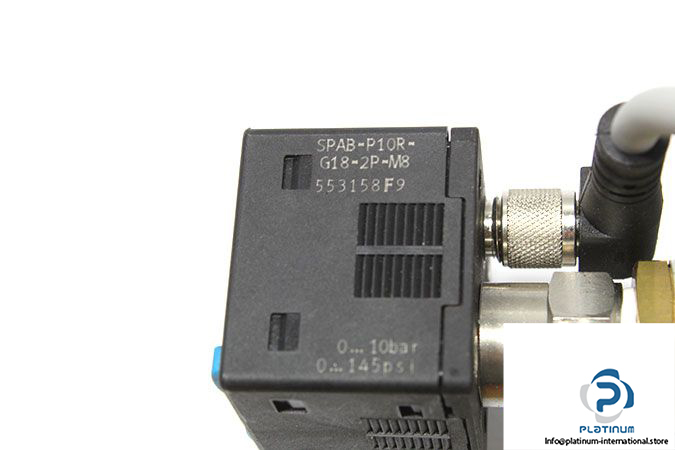

Attachment: FESTO SPAB-P10R-G18-2P-M8 PRESSURE SENSOR
Manufacturer: FESTO
Type: Pressure Sensor with Display
Model: SPAB-P10R-G18-2P-M8
Part No.: 553158
Sensor Technical Information
- Measurement Variable: Relative pressure
- Pressure Measuring Range: 0 / 15 bar
- Operating Voltage Range: 12 / 24 V DC
- Switch Output: 2xPNP
- Output Current Max.: 100 mA
- Pneumatic Connection: Male thread G1/8 / Female thread M5
- Material: ABS-reinforced
- Ambient Temperature: -10 / 50 °C
