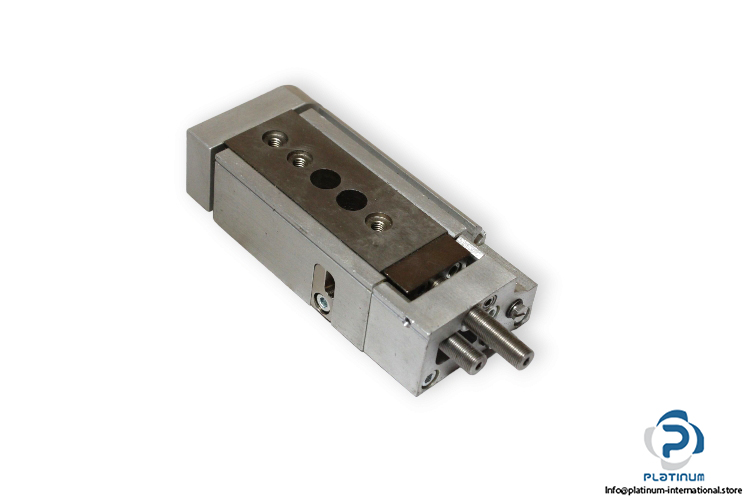

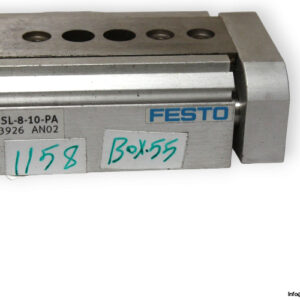

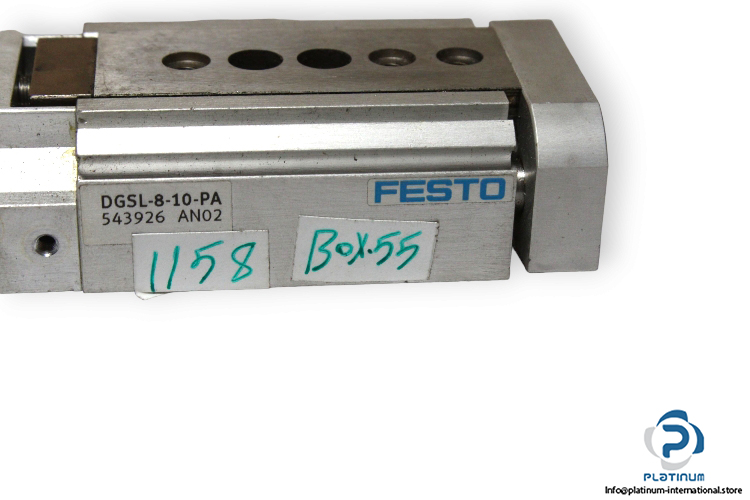

Manufacturer: FESTO
Type: Mini slide
Model: DGSL-8-10-PA
Part No.: 543926

Stroke: 10 mm
Adjustable end-position range/front length: 19.5 mm
Adjustable end-position range/rear length: 18.5 mm
Piston diameter: 10 mm
Cushioning: Elastic cushioning rings/pads at both ends
Guide: Ball bearing cage guide
Position sensing: For proximity sensor
Operating pressure: 1.5 bar … 8 bar
Max. speed: 0.8 m/s
Repetition accuracy: 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic connection: M3
Temperature: 0 °C … 60 °C
