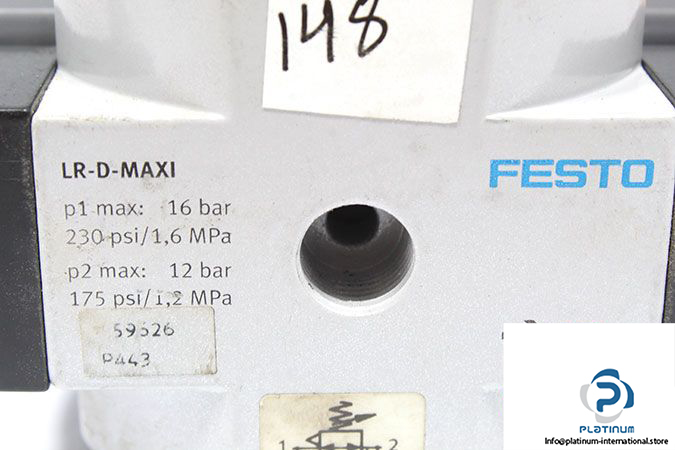

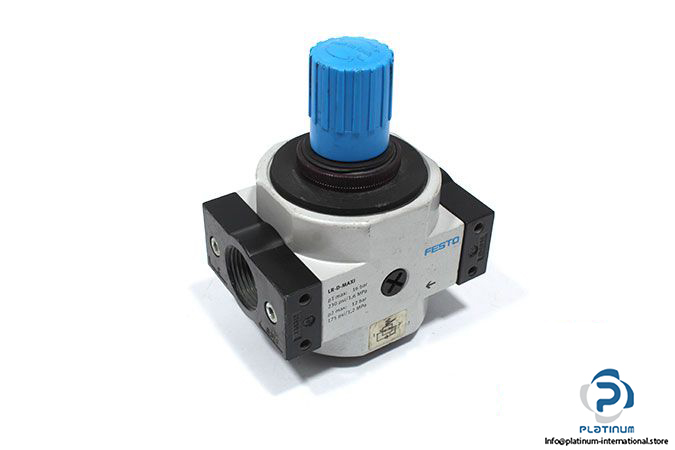

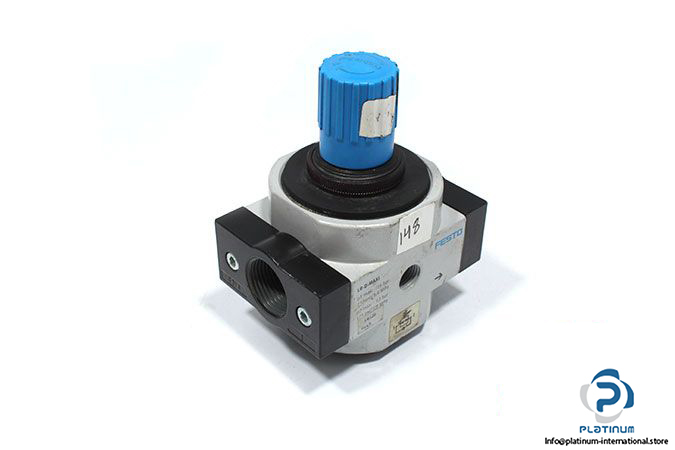

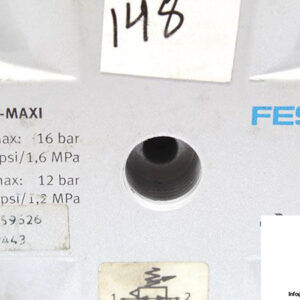

FESTO LR-D-MAXI PRESSURE REGULATOR
The FESTO LRDMAXI is a high-performance pressure regulator designed for precise control in compressed air systems. Its pilot-controlled piston design ensures reliable and consistent regulation for industrial pneumatic applications.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-MAXI
Part No.: 546436
Technical Information
- Size: MAXI
- Fluid: Compressed Air
- Design: Pilot-Controlled Piston Control Valve
- Pressure Regulation Range: 0.5 / 12 bar
- Operating Pressure: 0 / 16 bar
- Nominal Flow: 11500 l/min
- Actuator Lock: Rotary Knob with Detent
- Medium Temperature: -10 / 60 °C
- Pneumatic Connection: G 3/4
