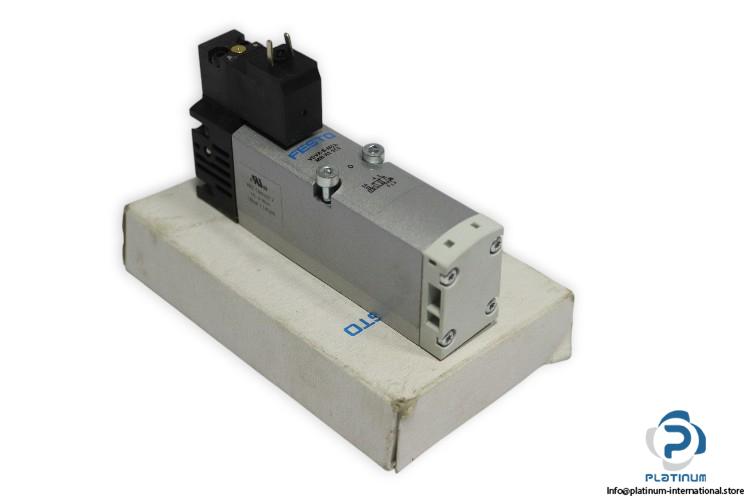

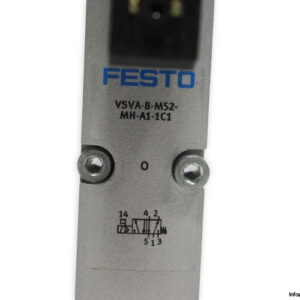

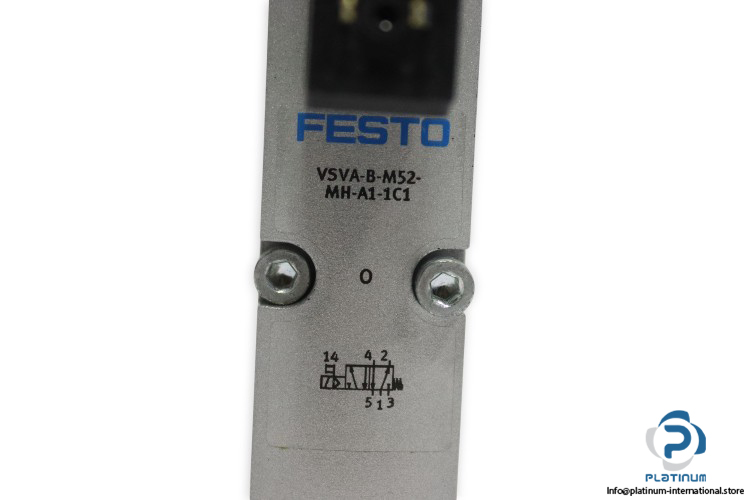

FESTO VSVA-B-M52-MH-A1-1C1 AIR SOLENOID VALVE WITH SOLENOID COIL

The FESTO VSVA-B-M52-MH-A1-1C1 is a high-performance air solenoid valve built for fast response and long-lasting operation in automated pneumatic systems. It features a monostable 5/2 function and is designed with a durable die-cast aluminum body. Attached with FESTO™s 546256 solenoid coil, it ensures precise and reliable actuation.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-MH-A1-1C1
Part No.: 546702

Valve Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminum
• Ambient Temperature: 5 / 50 °C

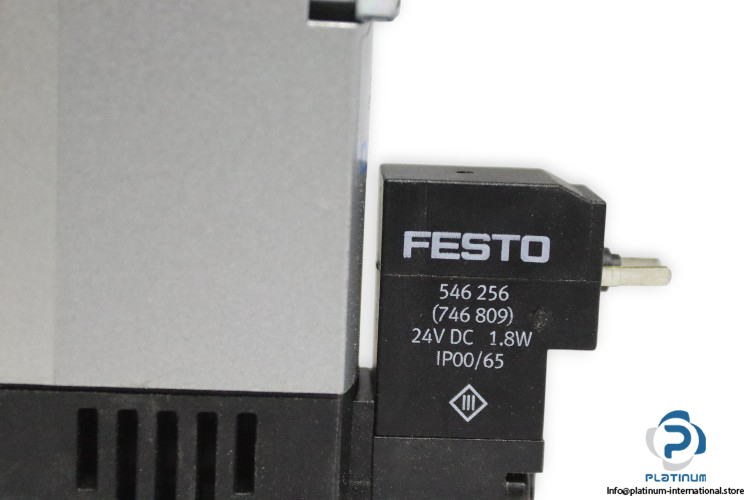

Attachment: FESTO 546256 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546256 / 746809

• Supply Voltage: 24 V DC
• Power Consumption: 1.8 W
• Protection Class: IP00 / IP65
