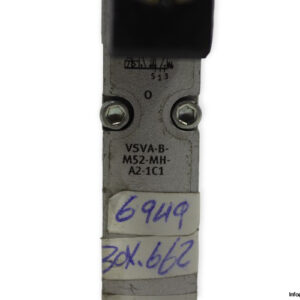

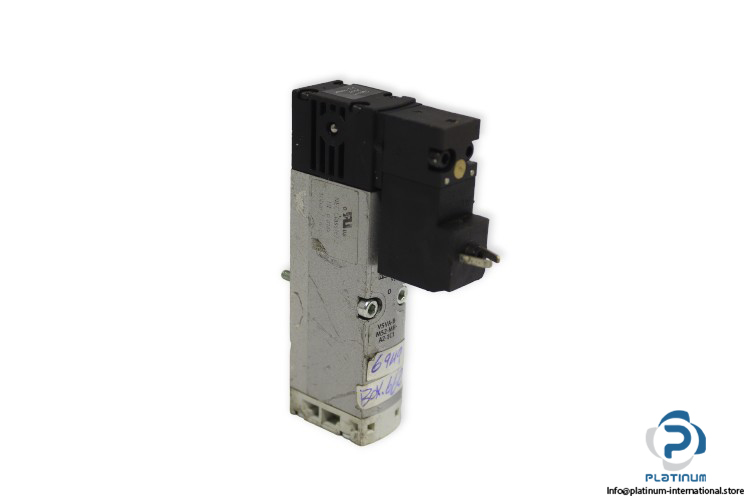

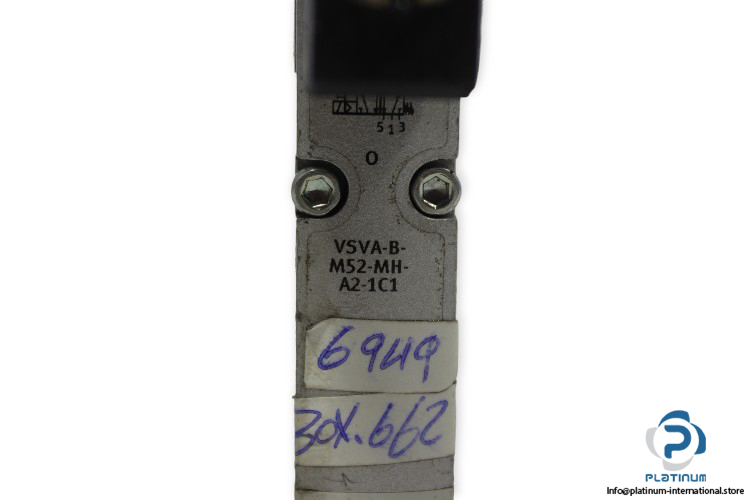

FESTO VSVA-B-M52-MH-A2-1C1 AIR SOLENOID VALVE WITH COIL

The FESTO VSVA-B-M52-MH-A2-1C1 is a high-performance 5/2-way monostable air solenoid valve, designed for fast and reliable pneumatic switching. Featuring a durable piston gate valve design and paired with the FESTO 546256 / 746809 solenoid coil, this system ensures precision flow control and efficient operation in demanding automation environments.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-MH-A2-1C1
Part No.: 546703

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Valve Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 / 16 bar
• Pilot Pressure: 3 / 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminum, PA
• Ambient Temperature: -5 / 50 °C

Solenoid Coil Attachment

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546256 / 746809

• Supply Voltage: 22 V DC
• Power Consumption: 1.8 W
• Protection Class: IP00 / IP65
