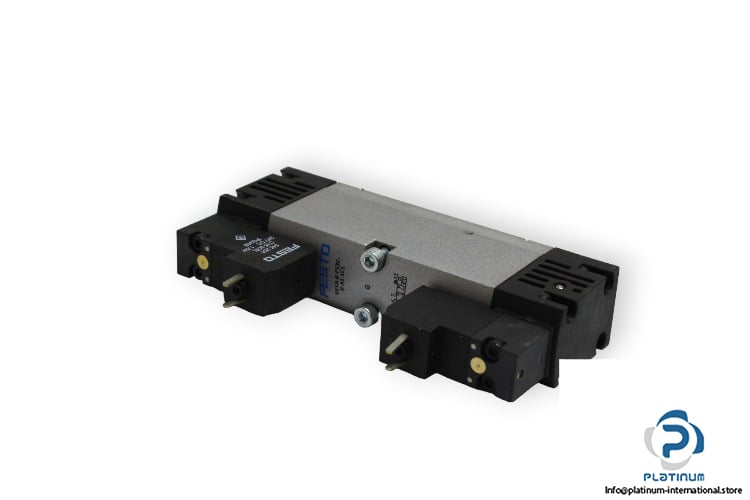

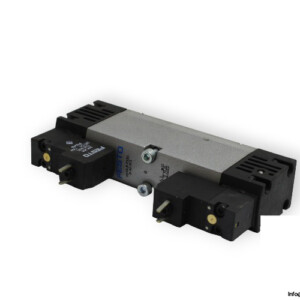

FESTO VSVA-B-P53C-H-A1-1C1 DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO VSVA-B-P53C-H-A1-1C1 is a precision-engineered double solenoid valve, built for high-flow pneumatic applications. Featuring a robust die-cast aluminium body and a 5/3 closed function, it ensures reliable air control performance. This unit is paired with the FESTO 546256 solenoid coil, offering efficient 24 V DC actuation and IP65 protection.

Manufacturer: FESTO
Type: Double Solenoid Valve

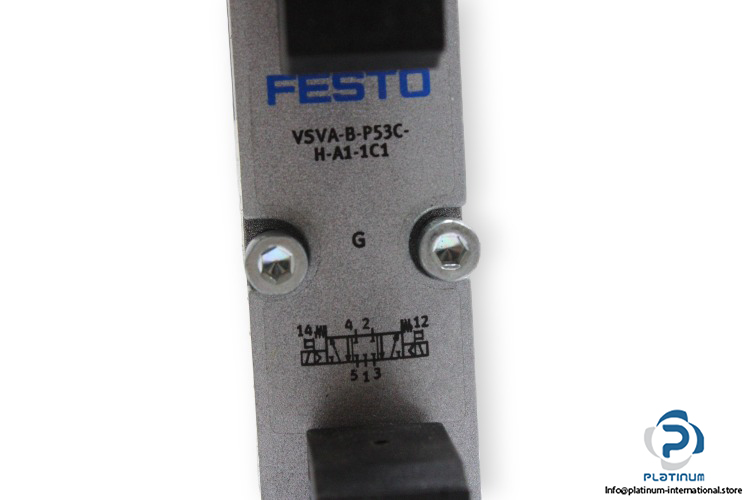

Model: VSVA-B-P53C-H-A1-1C1

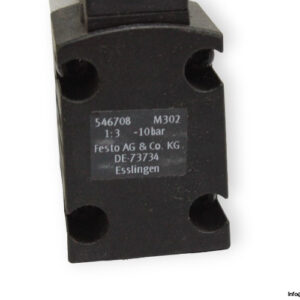

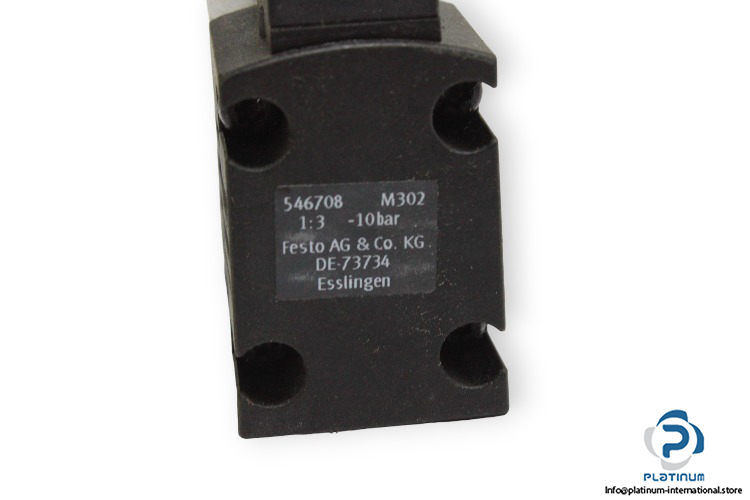

Part No.: 546708

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: 3 / 10 bar
• Pilot Pressure: 3 / 10 bar
• Nominal Flow Rate: 1000 l/min

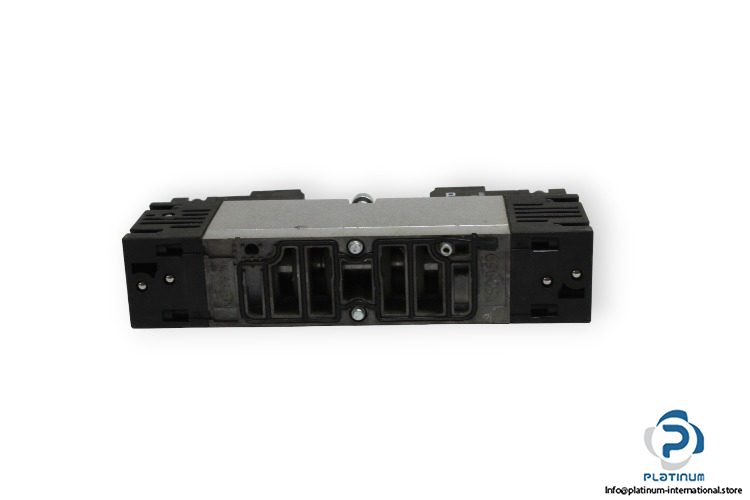

• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

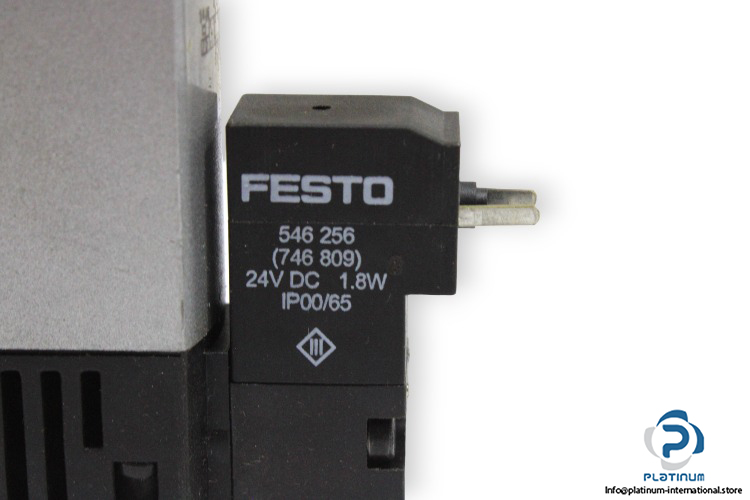

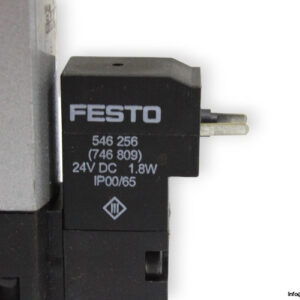

Attachment: FESTO 546256 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546256 / 746809

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.8 W
• Protection Class: IP00 / IP65
