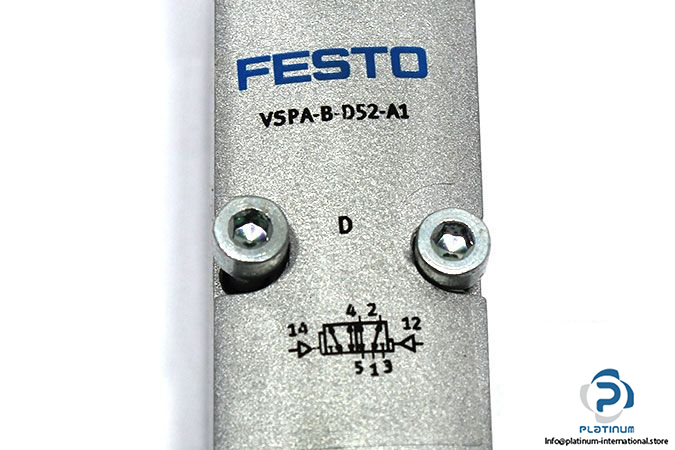

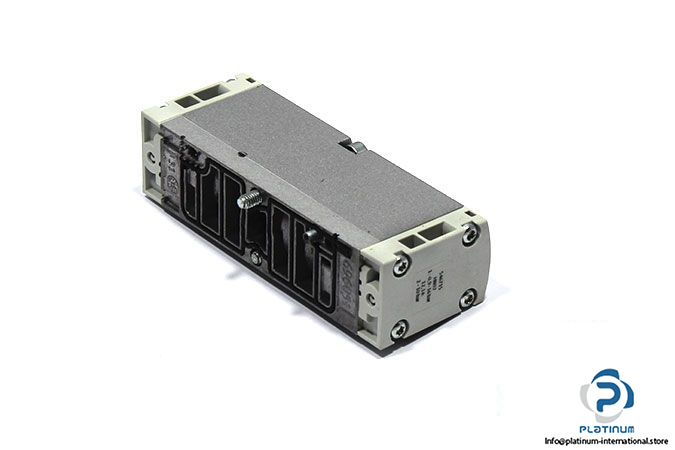

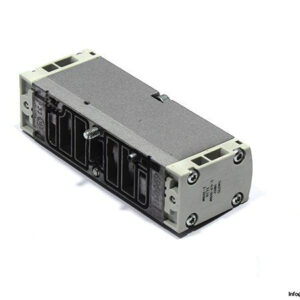

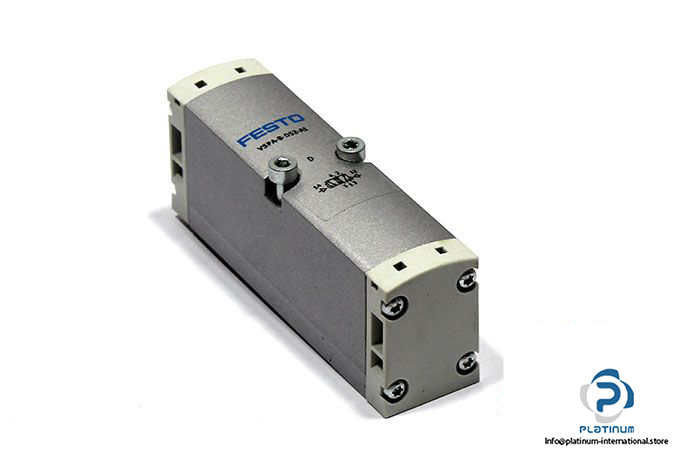

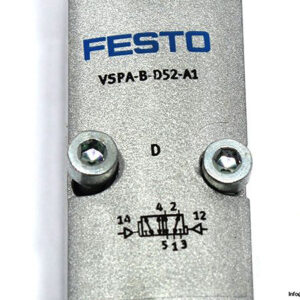

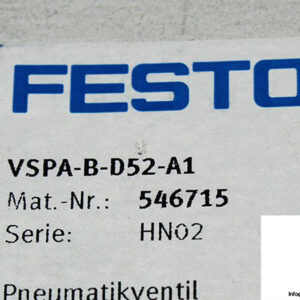

FESTO VSPA-B-D52-A1 PNEUMATIC VALVE

The FESTO VSPA-B-D52-A1 is a high-performance pneumatic valve designed for robust and dynamic industrial automation. With a bistable 5/2-way function and sub-base mounting, this piston gate valve ensures optimal control and reliability in air systems.

Manufacturer: FESTO
Type: Pneumatic Valve
Model: VSPA-B-D52-A1

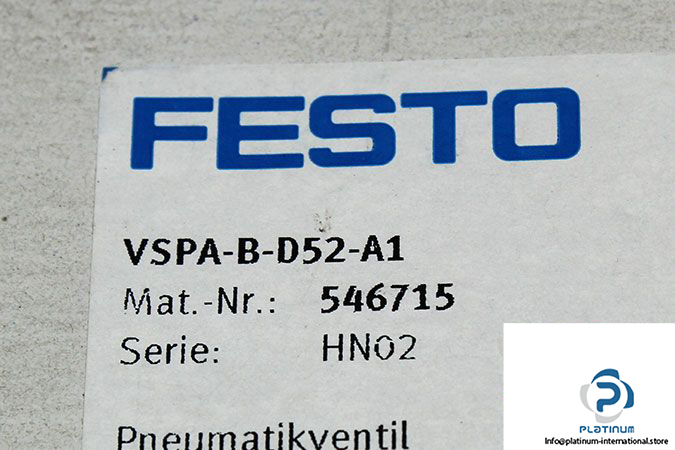

Part No.: 546715

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, bistable, dominant
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 to 16 bar
• Pilot Pressure: 2 to 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base, size 26 mm
• Material: Die-cast aluminum
• Ambient Temperature: -10 to 60 °C
