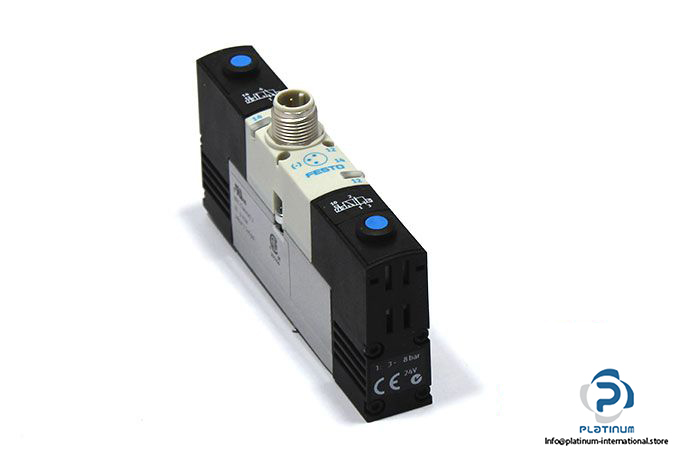

FESTO VSVA-B-T32H-AH-A2-1R5L DOUBLE AIR SOLENOID VALVE

The FESTO VSVA-B-T32H-AH-A2-1R5L is a high-performance double air solenoid valve engineered for reliable operation in demanding pneumatic systems. It features a 2×3/2-way function, monostable design, and compact integration using a sub-base pneumatic connection.

Manufacturer: FESTO
Type: Double Air Solenoid Valve

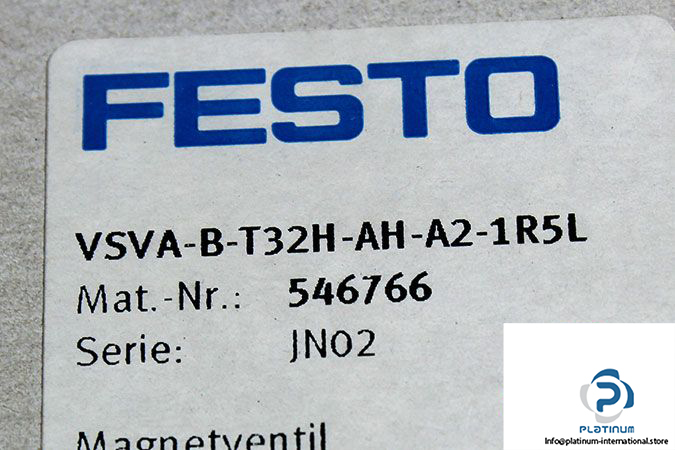

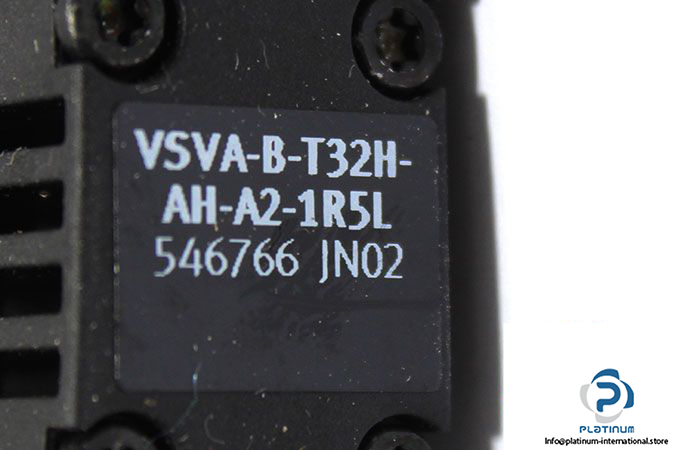

Model: VSVA-B-T32H-AH-A2-1R5L
Part No.: 546766

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 2×3/2-way, open/closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 8 bar
• Nominal Flow Rate: 400 l/min
• Supply Voltage: 24 V DC

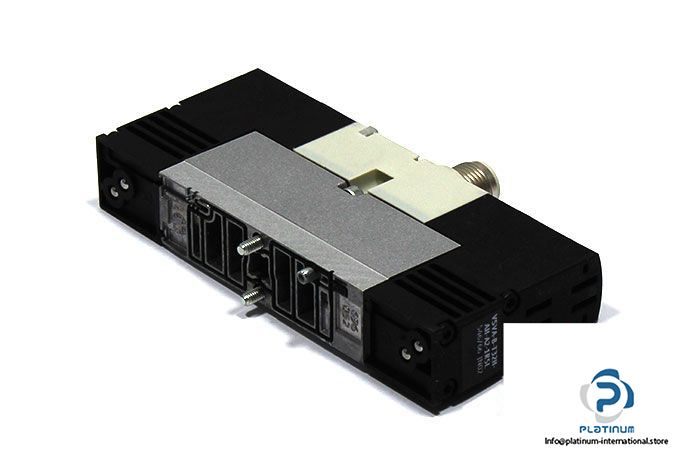

• Pneumatic Connection: Sub-base

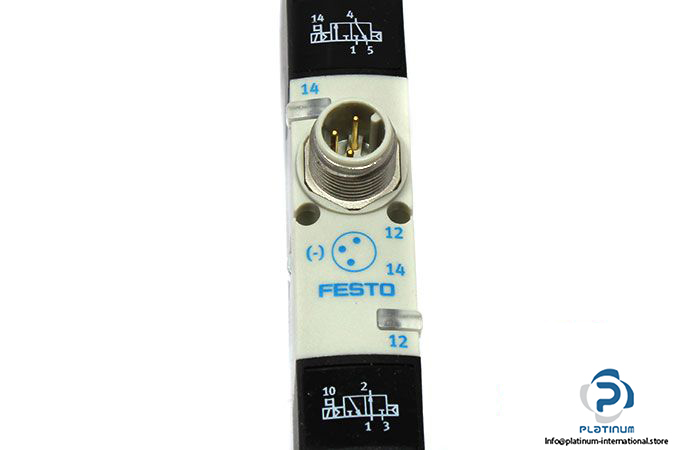

• Electrical Connection: 3-Pin M12x1 Central plug, Round design
• Material: Die-cast aluminum
• Ambient Temperature: -5 / 50 °C
