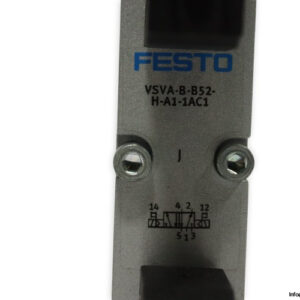

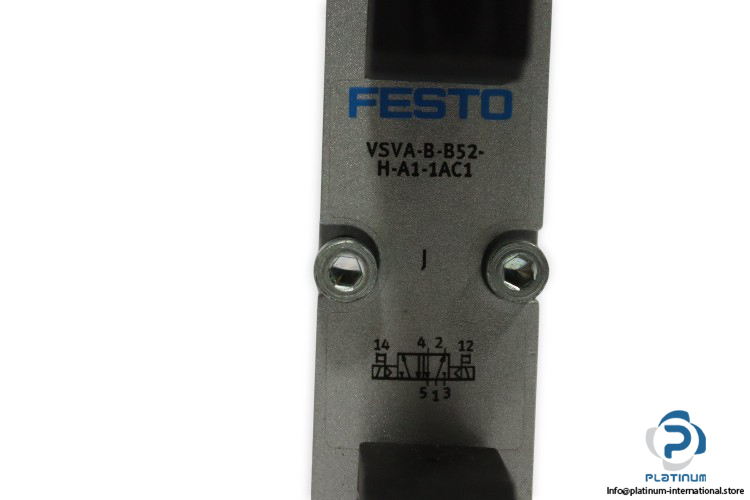

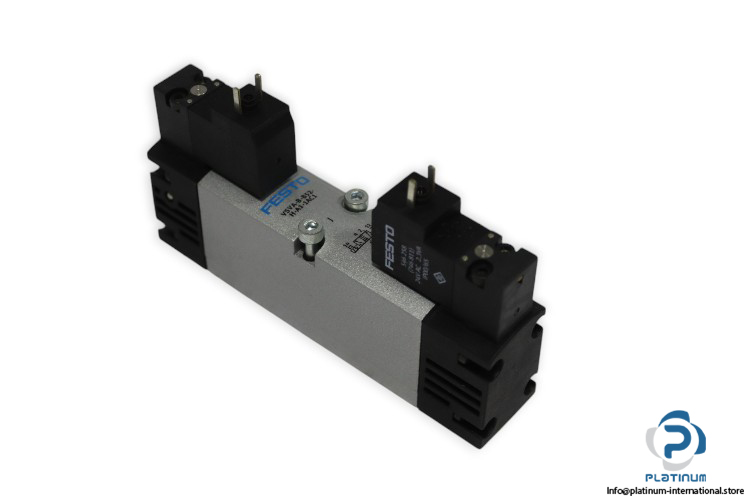

FESTO VSVA-B-B52-H-A1-1AC1 DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO VSVA-B-B52-H-A1-1AC1 is a high-performance double solenoid valve featuring a 5/2 bistable function and robust die-cast aluminum construction. Engineered for industrial pneumatic systems, it delivers precise air control and durable operation. It comes equipped with the FESTO 546258 / 746811 solenoid coil for optimal compatibility and efficiency.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VSVA-B-B52-H-A1-1AC1
Part No.: 547094

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: 2 / 10 bar
• Pilot Pressure: 3 … 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminum
• Ambient Temperature: -5 … 50 °C

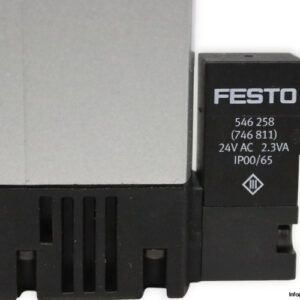

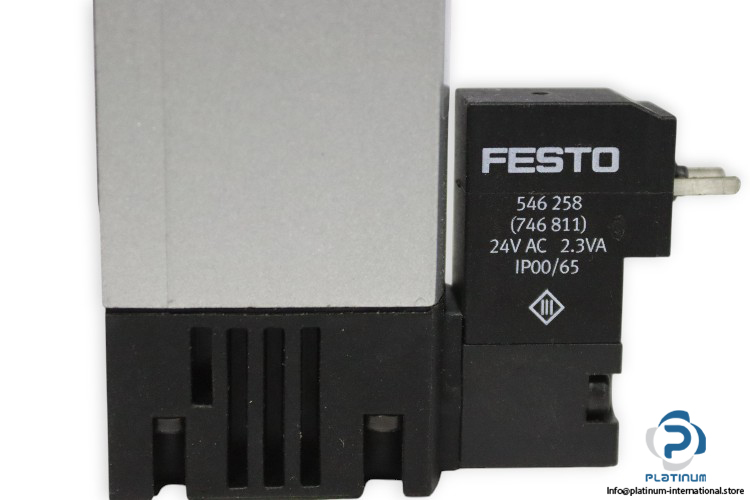

Attachment: FESTO 546258 / 746811 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546258 / 746811

Solenoid Coil Technical Information

• Supply Voltage: 24 V AC
• Power Consumption: 2.3 W
• Protection Class: IP65
