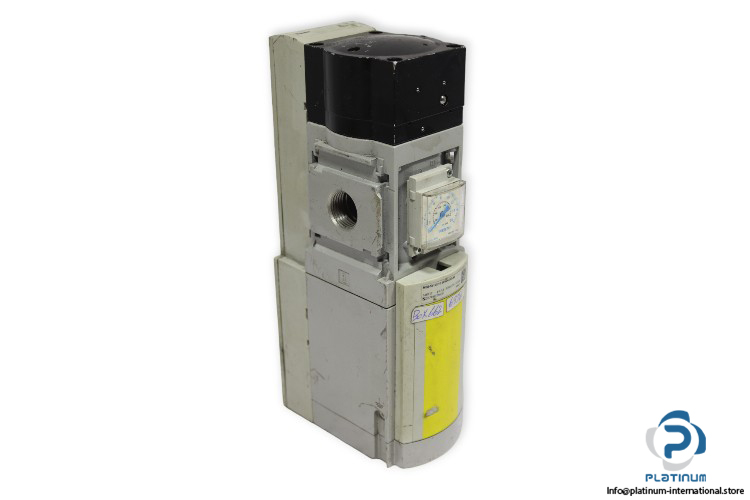

FESTO MS6-SV-1/2-E-10V24-SO-AG SOFT START/QUICK EXHAUST VALVE
The FESTO MS6-SV-1/2-E-10V24-SO-AG is a high-performance soft start and quick exhaust valve designed for safe, fast, and efficient pressurization and exhaust in pneumatic systems. With an electrically actuated mechanism and robust construction, this unit is ideal for automation and industrial safety applications.
Manufacturer: FESTO
Type: Soft Start/Quick Exhaust Valve
Model: MS6-SV-1/2-E-10V24-SO-AG
Part No.: 548717
Technical Information
- Fluid: Air
- Size: 6
- Width Dimension: 62 mm
- Type of Actuation: Electrically
- Operating Pressure: 3.5 / 10 bar

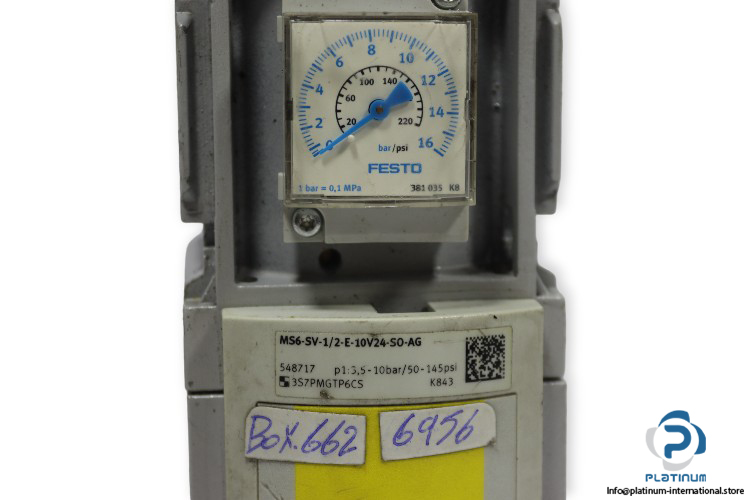

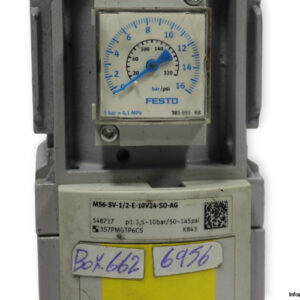

- Pressure Gauge: With pressure gauge
- Standard Nominal Flow Rate: 4300 l/min
- Switching Time Off: 40 ms
- On Switching Time: 130 ms
- Nominal Operating Voltage: 24 V DC
- Housing Material: Die-cast aluminum
- Pneumatic Connection: G1, G1/2
- Ambient Temperature: -10 / 50 °C
