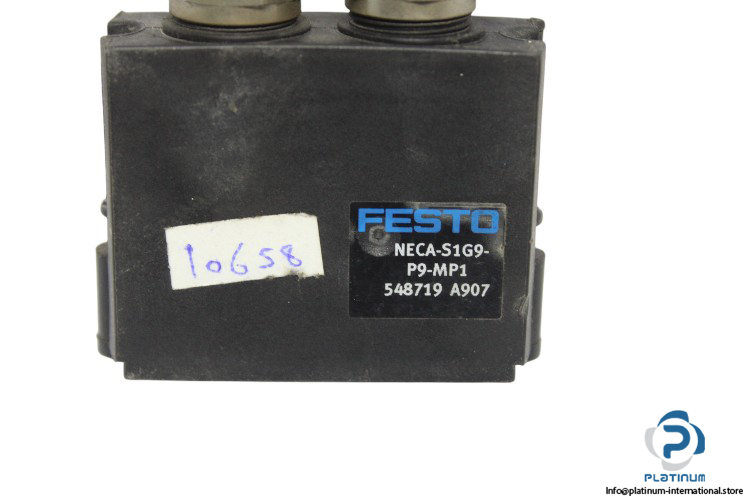

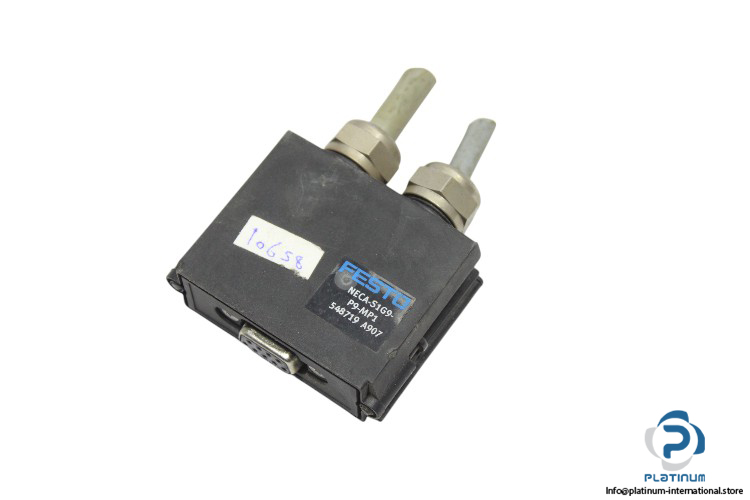

FESTO MULTI-PIN PLUG SOCKET

The Festo Multi-pin Plug Socket (Model: NECA-S1G9-P9-MP1, Part No. 548719) is designed for reliable electrical connections in industrial and automation systems. Featuring a 9-pin Sub-D socket and screw terminal connections, this plug socket supports a wide DC operating voltage range, ensuring versatile and efficient performance in various applications.

Manufacturer: Festo

Type: Multi-pin Plug Socket

Model: NECA-S1G9-P9-MP1

Part No.: 548719

Technical Specifications

• Type of Mounting: With through-hole
• Electrical Connection 1: Socket, Sub-D, 9-pin
• Electrical Connection 2: Screw terminal, 9-pin
• DC Operating Voltage Range: 21.6 V … 26.4 V
• Nominal Operating Voltage (DC): 24 V
• Current Rating at 40°C: 1 A
• Approved Cable Diameter: 5 mm … 10 mm
• Housing Material: PA-reinforced
