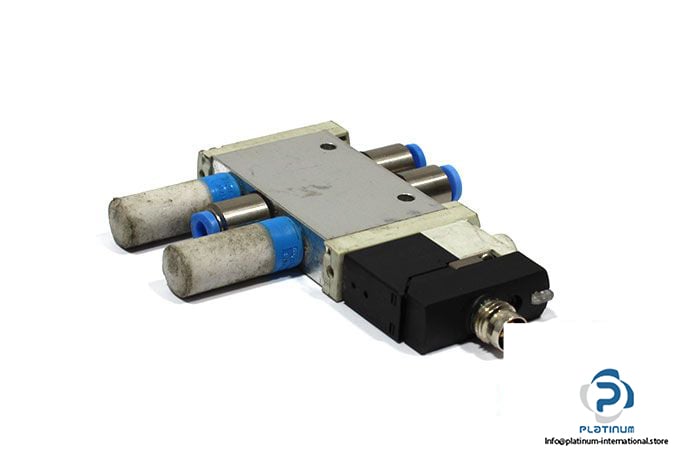

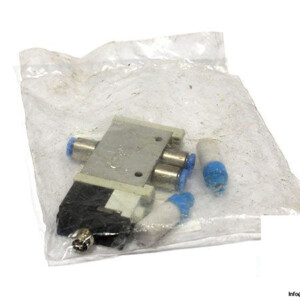

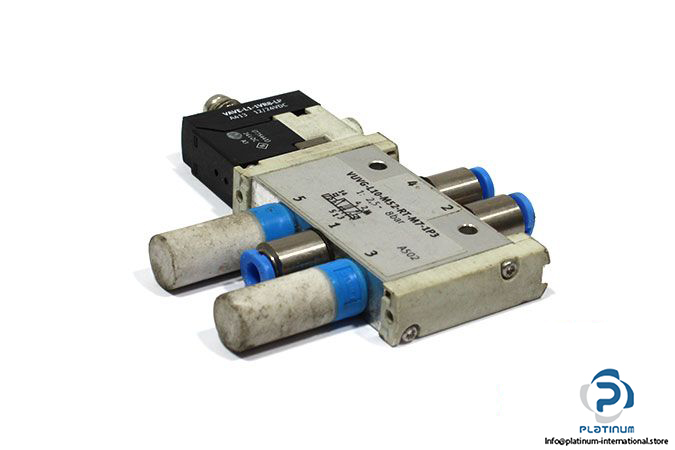

FESTO VUVG-L10-M52-RT-M7-1P3 AIR SOLENOID VALVE WITH COIL
The FESTO VUVG-L10-M52-RT-M7-1P3 is a high-performance air solenoid valve engineered for precise control in industrial pneumatic systems. Designed with a piston gate mechanism and 5/2-way monostable functionality, it ensures reliable switching and efficient air management. Supplied with the VAVE-L1-1VRB-LP solenoid coil for versatile voltage compatibility.
Manufacturer: FESTO
Type: Air Solenoid Valve

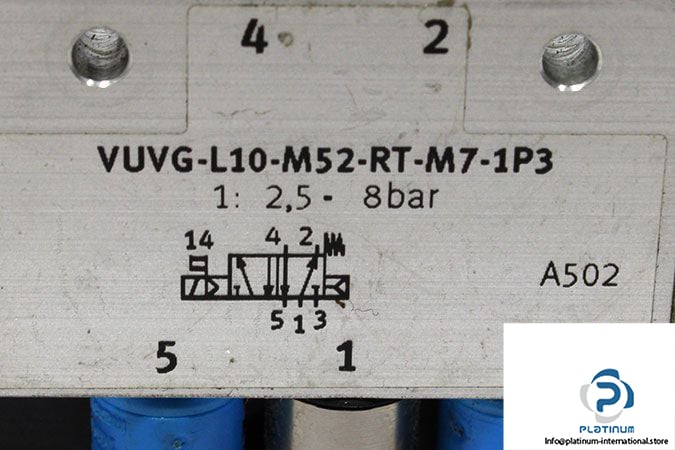

Model: VUVG-L10-M52-RT-M7-1P3
Alternative Model: VUVG-L10-M52-RT-Q4H-U-1R8L
Part No.: 566474
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/2-way, monostable
- Type of Actuation: Electrically
- Operating Pressure: 2.5 to 8 bar
- Nominal Flow Rate: 330 l/min
- Pneumatic Connection: M7
- Material: Wrought aluminum alloy
- Ambient Temperature: -5 to 60 °C

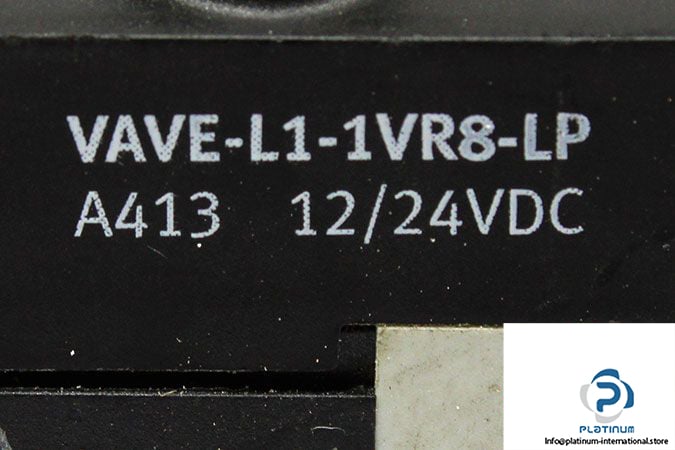

Solenoid Coil Attachment: FESTO VAVE-L1-1VRB-LP
Manufacturer: FESTO
Type: Solenoid Coil
Model: VAVE-L1-1VRB-LP
Supply Voltage: 12/24 V DC
