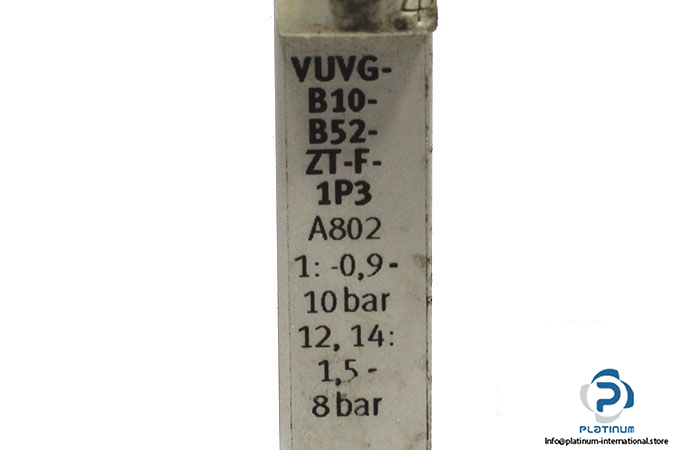

FESTO VUVG-B10-B52-ZT-F-1P3 AIR SOLENOID VALVE WITH 735441 COIL

The FESTO VUVG-B10-B52-ZT-F-1P3 is a high-performance air solenoid valve engineered for efficient and responsive pneumatic applications. With a bistable 5/2 function and piston gate design, it ensures precise control of compressed air flow. The unit comes equipped with the FESTO 735441 solenoid coil for reliable 24 V DC actuation.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VUVG-B10-B52-ZT-F-1P3
Part No.: 566491

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 1.5 … 8 bar
• Nominal Flow Rate: 210 l/min
• Pneumatic Connection: Sub-base
• Material: Wrought aluminium alloy
• Ambient Temperature: -5 / 60 °C

Attachment: FESTO 735441 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 735441
Supply Voltage: 24 V DC
