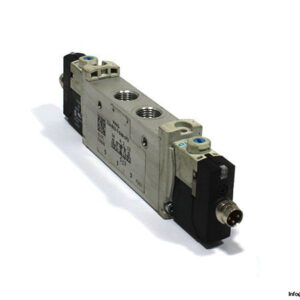

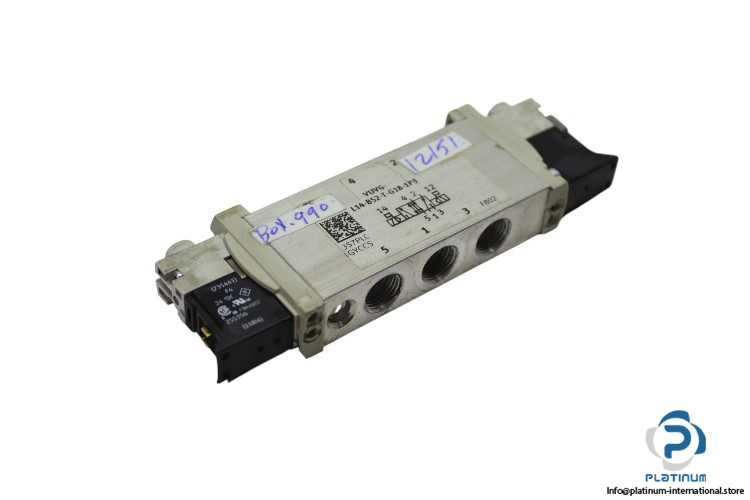

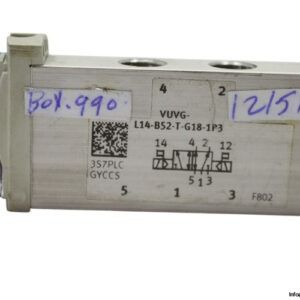

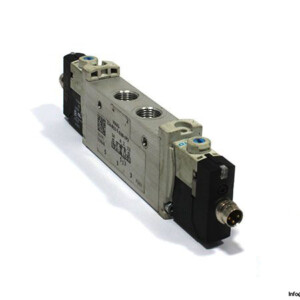

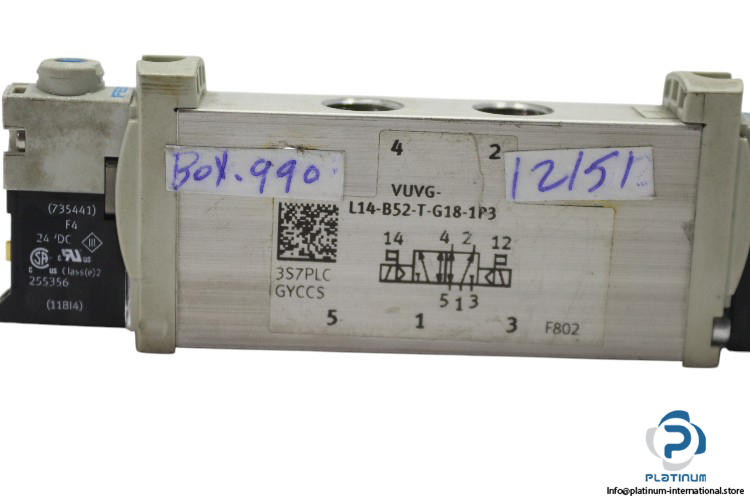

Festo VUVG-L14-B52-T-G18-1P3 Double Solenoid Valve Without E-box

The Festo VUVG-L14-B52-T-G18-1P3 is a high-performance double solenoid valve designed for precise pneumatic control in automation systems. With a compact piston gate design and a robust aluminum body, it supports high flow rates and offers reliable performance in demanding environments.

Manufacturer: Festo

Type: Double Solenoid Valve Without E-box

Model: VUVG-L14-B52-T-G18-1P3

Part No.: 566500

Technical Information:

• Type of Actuation: Electrically
• Operating Pressure: 1.5 to 8 bar
• Fluid: Air
• Function: 5/2 Way
• Design: Piston Gate Valve
• Flow Rate: 700 to 780 l/min
• Pneumatic Connection: G1/8
• Ambient Temperature: -5 to 60 °C
• Material: Aluminum
• Protection Class: IP65 / IP40

Attachment:

Solenoid Coil “ FESTO 735441 / 255356

• Manufacturer: Festo
• Type: Solenoid Coil
• Part No.: 735441 / 255356
• Voltage: 24 VDC
• Ambient Temperature: -5 to 60 °C
