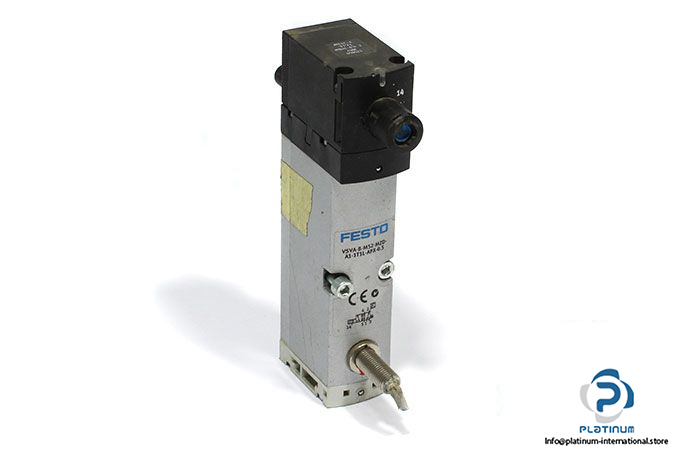

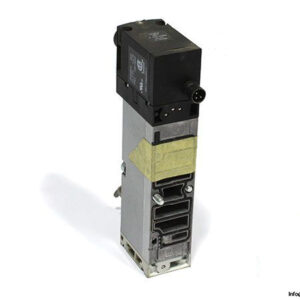

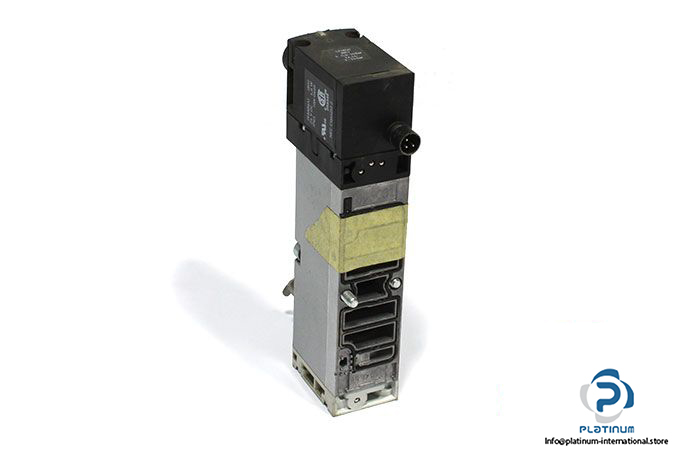

FESTO VSVA-B-M52-MZD-A1-1T1L-APX-0.5 AIR SOLENOID VALVE WITH COIL

The FESTO VSVA-B-M52-MZD-A1-1T1L-APX-0.5 is a high-performance 5/2-way monostable air solenoid valve engineered for precise control in pneumatic systems. Constructed with a robust wrought aluminium alloy body, it ensures durability and long service life. Paired with the FESTO 688865 solenoid coil, it offers fast and reliable actuation with energy-efficient 24 V DC input.

Manufacturer: FESTO
Type: Air Solenoid Valve

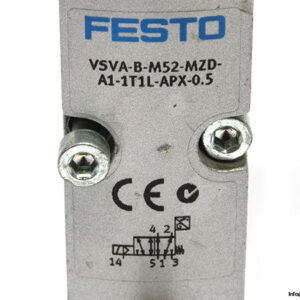

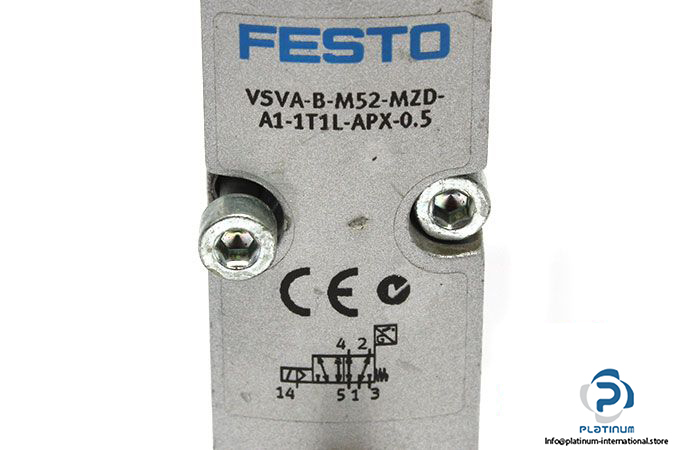

Model: VSVA-B-M52-MZD-A1-1T1L-APX-0.5
Part No.: 570850

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Electrically

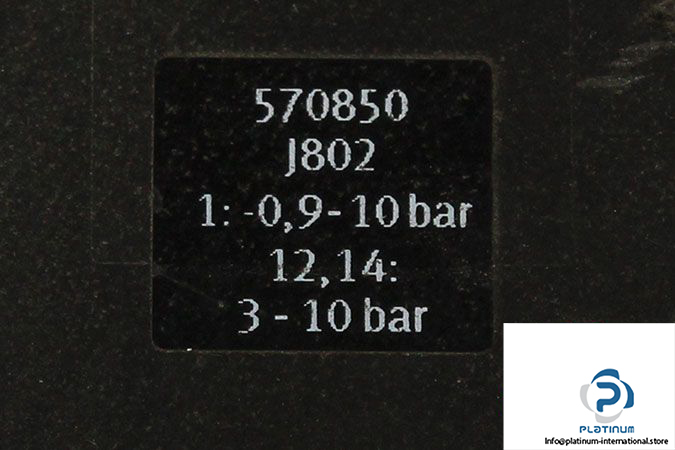

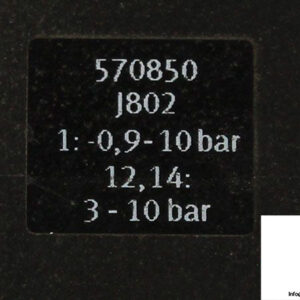

• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base, 26 mm
• Material: Wrought aluminium alloy
• Ambient Temperature: -5 to 60 °C

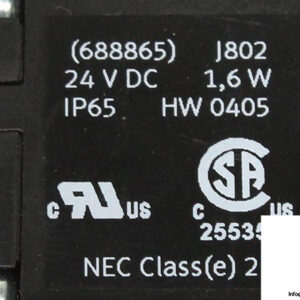

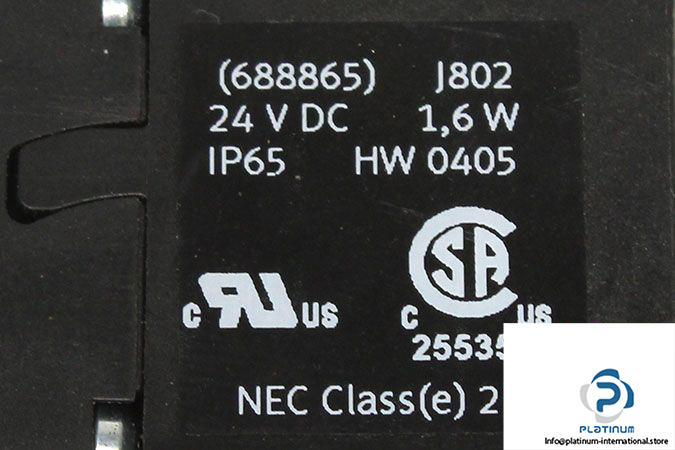

Attachment: FESTO 688865 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: 688865

• Supply Voltage: 24 V DC
• Power Consumption: 1.6 W
• Protection Class: IP00 / IP65
