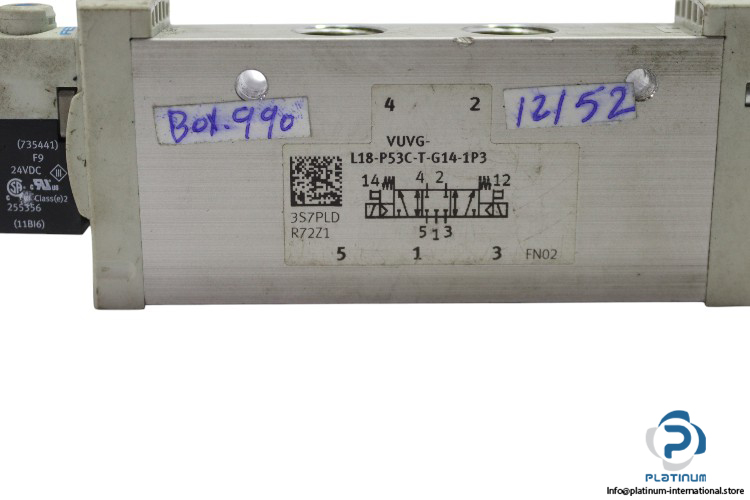

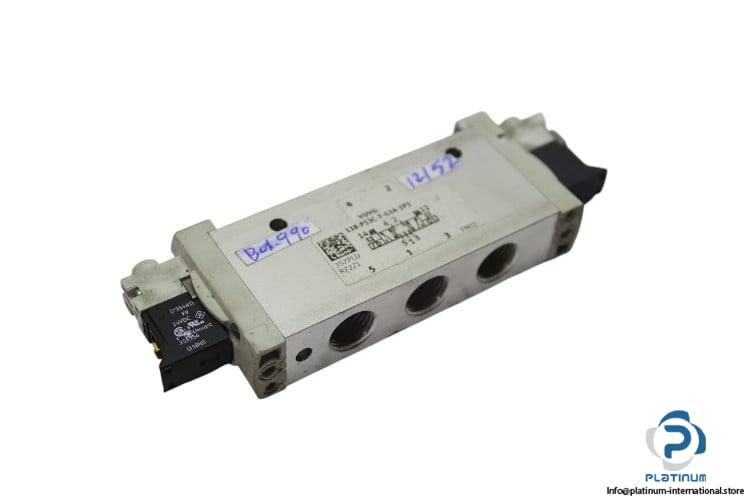

Festo VUVG-L18-P53C-T-G14-1P3 Double Solenoid Valve Without E-Box

The Festo VUVG-L18-P53C-T-G14-1P3 is a compact and efficient double solenoid directional control valve designed for high-performance pneumatic systems. Engineered with a piston gate design and rated IP65, it ensures reliable actuation in demanding industrial environments. This valve includes a 5/3 way configuration with closed center functionality and is suitable for use with clean compressed air per ISO 8573-1:2010 standards.

Manufacturer: Festo

Type: Double Solenoid Valve Without E-Box

Model: VUVG-L18-P53C-T-G14-1P3

Part No.: 574431

Technical Information:

• Type of Actuation: Electrical
• Coil Voltage: 24 V DC
• Design: Piston Gate Valve
• Function: Directional Control Valve, 5/3 Way Valve, Closed
• Operating Pressure: 3 to 8 bar
• Pilot Pressure: 3 to 8 bar
• Fluid: Compressed Air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic Connection: G ¼
• Seals Material: HNBR, NBR
• Housing Material: Wrought Aluminum Alloy
• Protection Class: IP65

Included Attachment:

• Festo Solenoid Coil
• Model: 735441 / 255356
• Voltage: 24 VDC
• Ambient Temperature: -5 to 60 °C
