FESTO VUVS-L30-M52-MD-G38-F8 AIR SOLENOID VALVE WITH VACF-B-B2-1 COIL

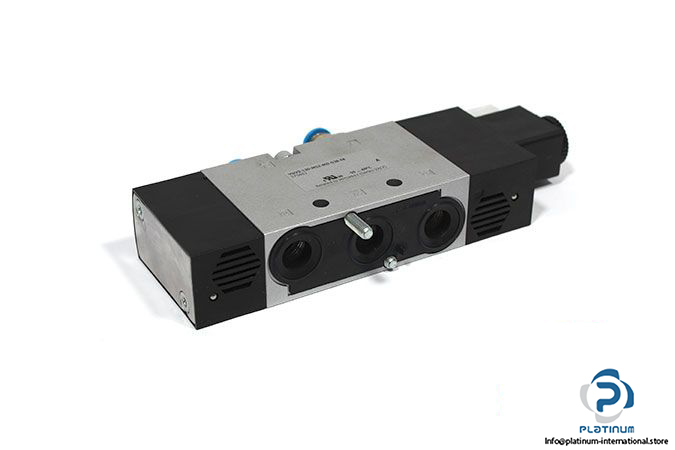

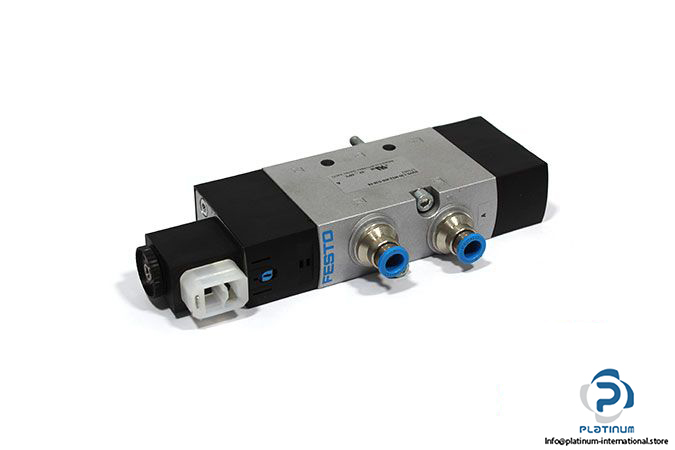

The FESTO VUVS-L30-M52-MD-G38-F8 is a robust 5/2-way monostable air solenoid valve engineered for reliable pneumatic control in high-performance industrial applications. Built with a durable piston gate design and a die-cast aluminum body, this valve ensures consistent flow and stable operation even under demanding conditions.
Manufacturer: FESTO
Type: Air Solenoid Valve

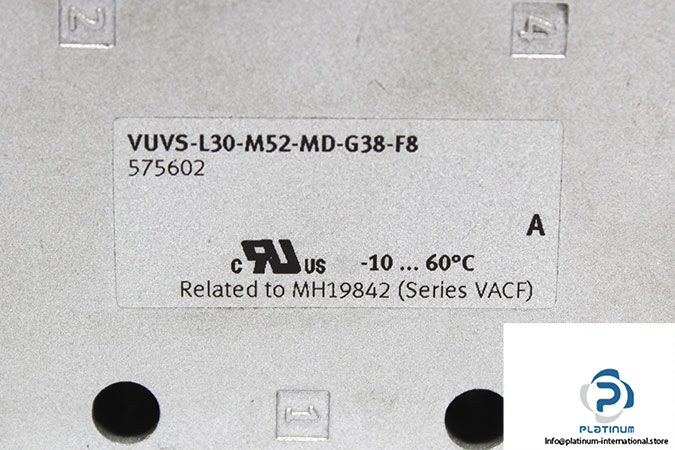

Model: VUVS-L30-M52-MD-G38-F8
Part No.: 575602
Technical Information
- Fluid: Air
- Design: Piston gate valve

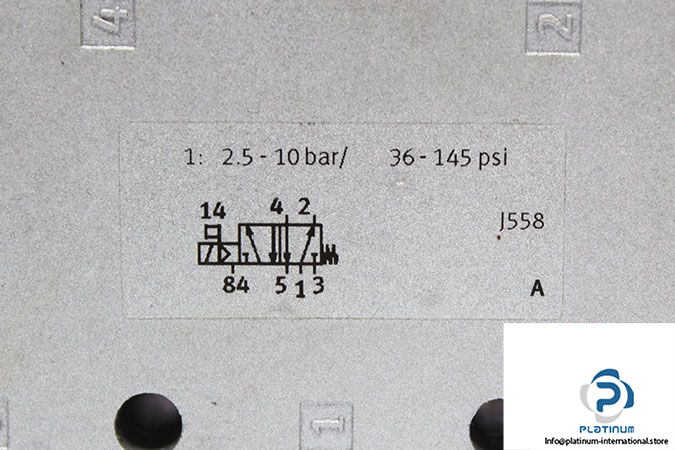

- Function: 5/2-way, monostable
- Type of Actuation: Electrically
- Operating Pressure: 2.5 to 10 bar
- Nominal Flow Rate: 2300 l/min
- Pneumatic Connection: G3/8
- Material: Die-cast aluminum, painted
- Ambient Temperature: -10 to 60 °C

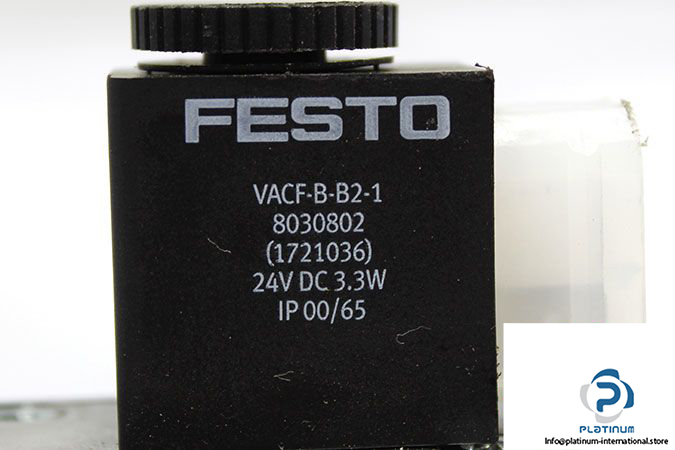

Attachment: FESTO VACF-B-B2-1 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: VACF-B-B2-1
Part No.: 8030802 / 1721036
Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 3.3 W
- Protection Class: IP00 / IP65
