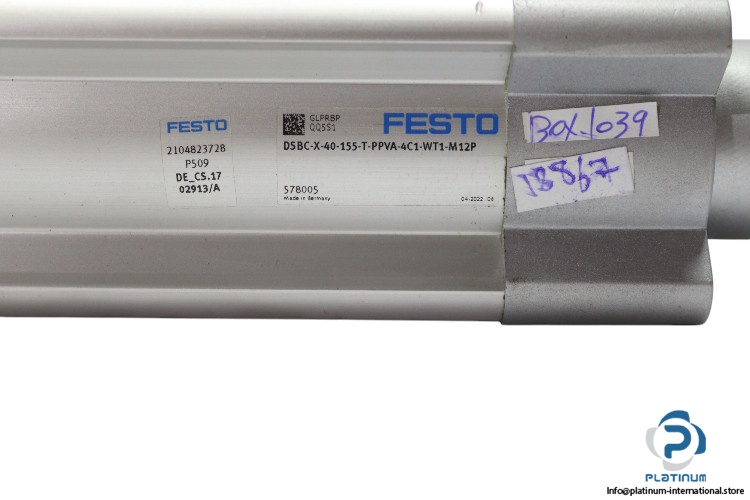

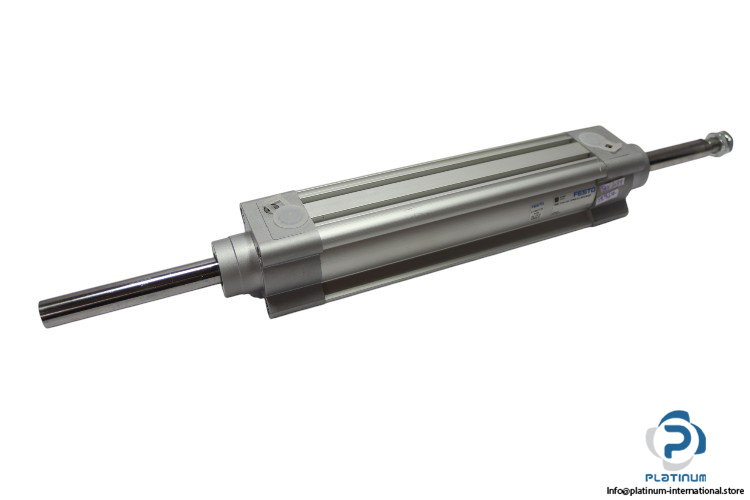

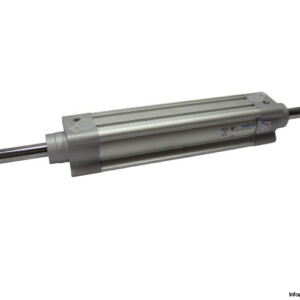

Festo DSBC-X-40-155-T-PPVA-4C1-WT1-M12P Compact Cylinder

The Festo DSBC-X-40-155-T-PPVA-4C1-WT1-M12P is a compact, double-acting pneumatic cylinder designed for reliable performance in industrial applications. With a 155 mm stroke length and 40 mm piston diameter, it offers precision movement with adjustable pneumatic cushioning at both ends. This cylinder is designed for proximity sensor position sensing and includes a pneumatic connection (G1/4).

Manufacturer: FESTO

Type: Compact Cylinder

Model: DSBC-X-40-155-T-PPVA-4C1-WT1-M12P

Part No.: 578005

Technical Data:

• Stroke Length: 155 mm
• Piston Diameter: 40 mm

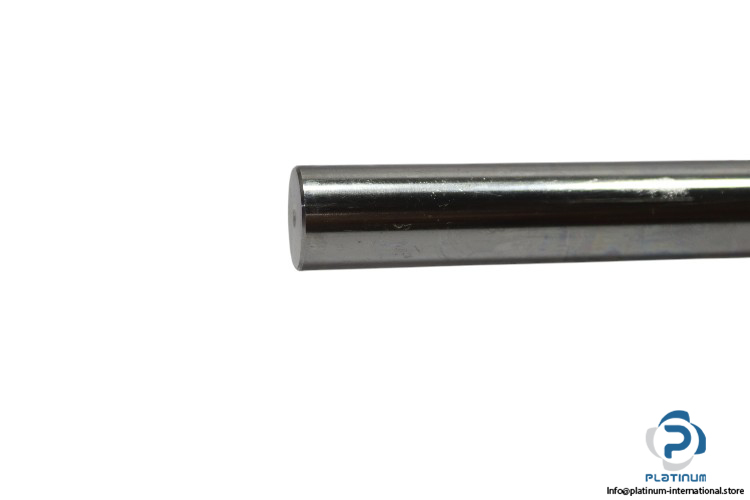

• Piston Rod Type: Through piston rod
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Position Sensing: For proximity sensor
• Mode of Operation: Double acting
• Pneumatic Connection: G1/4

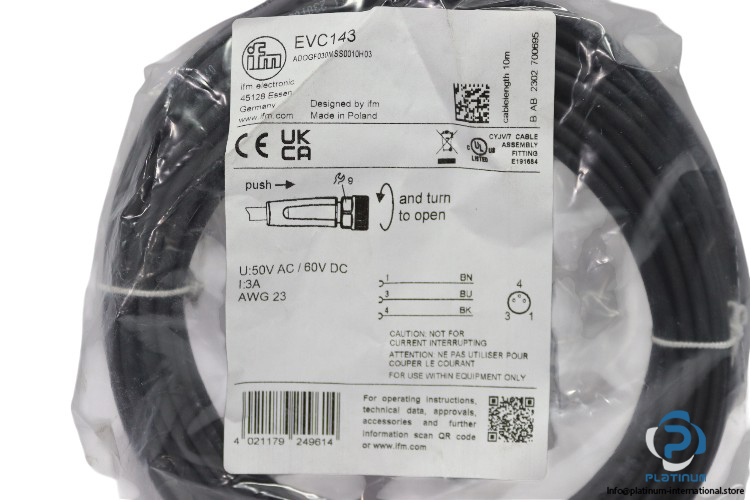

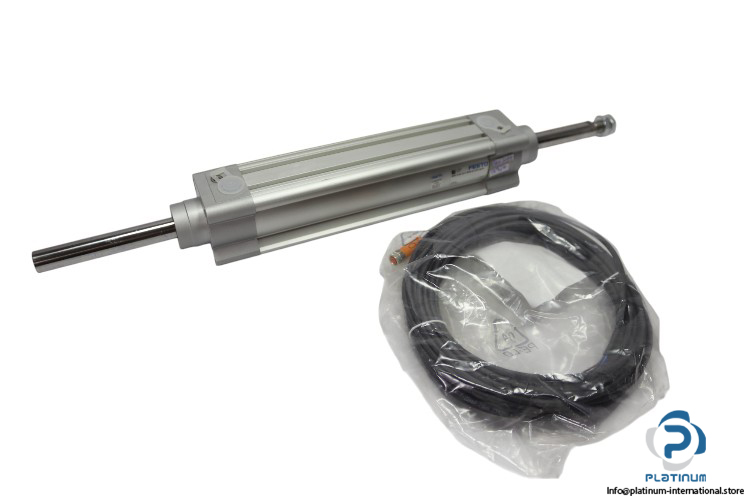

• Attached With: IFM EVC143 Connecting Cable

IFM EVT123 Connecting Cable

The IFM EVT123 is a durable connecting cable designed for reliable electrical connections. The cable has an M8 connector and is made from PVC with EPDM seals, offering IP65, IP67, IP68, and IP69K protection. It comes with a 5-meter length and is perfect for industrial environments.

Technical Data:

• Operating Voltage: 50 V AC, 60 V DC
• Max. Current Load Total: 3 A
• Materials Housing: PVC orange
• Sealing Material: EPDM
• Material Nut: Stainless steel
• Electrical Connection “ Cable: 5 m, PVC, orange, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm)
• Electrical Connection “ Socket: Connector: 1 x M8
• Ambient Operating Temperature: -25 / 80°C
• Protection Degree: IP 65; IP 67; IP 68; IP 69K
• Dimensions: 10 x 10 x 31 mm
