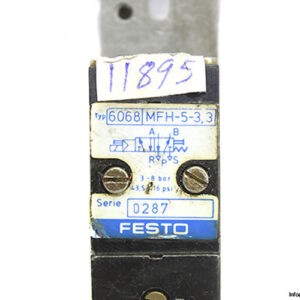

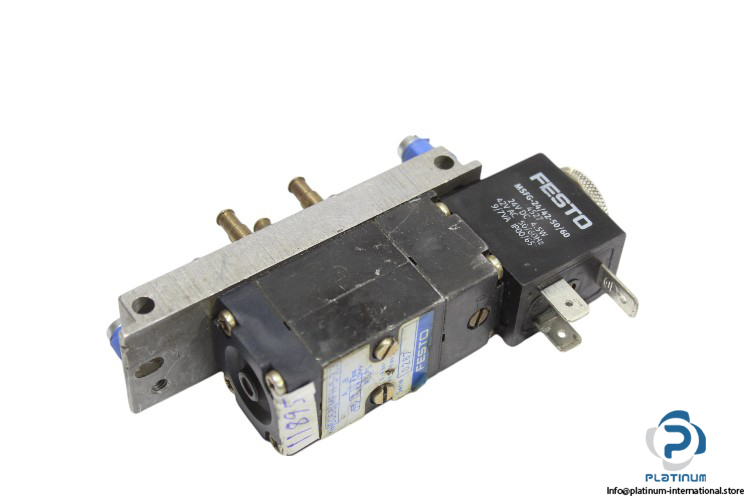

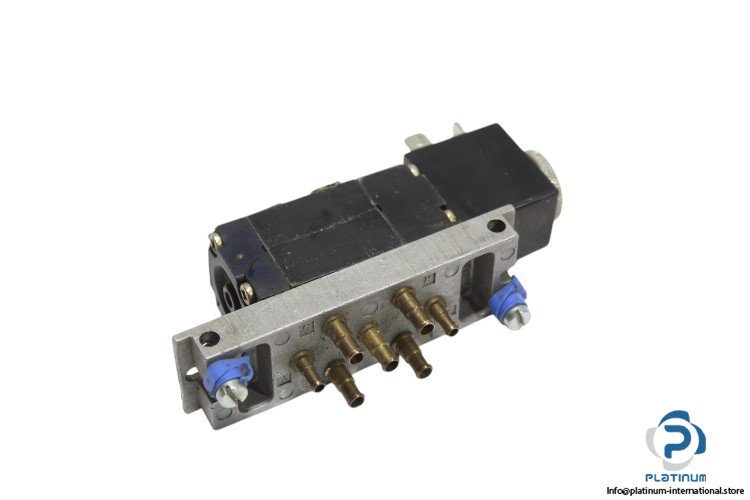

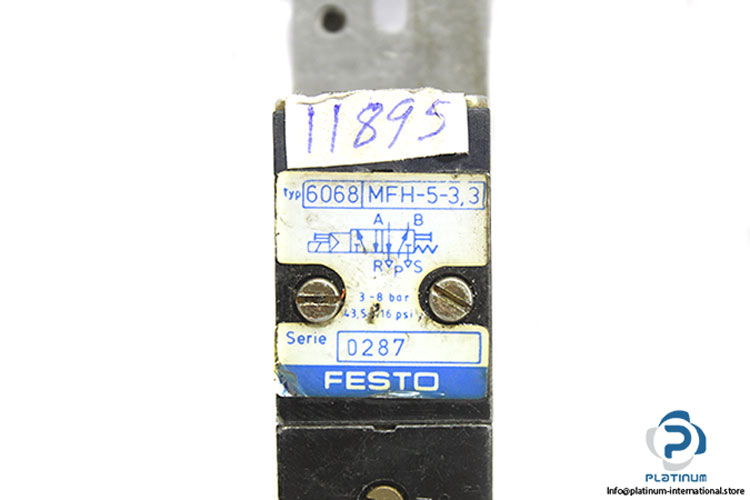

Festo MFH-5-3,3 Single Solenoid Valve with Coil

The Festo MFH-5-3,3 is a high-performance single solenoid valve designed for precise pneumatic control. It features a 5/2 way valve function and operates efficiently within a pressure range of 3 to 8 bar. This valve comes equipped with the FESTO 4527 solenoid coil, ensuring reliable actuation for industrial applications.

Manufacturer: Festo

Type: Single Solenoid Valve with Coil

Model: MFH-5-3,3

Part No.: 6068

Technical Information:

• Media: Air
• Type of Actuation: Electrical
• Valve Function: 5/2 Way Valve
• Operating Pressure: 3 to 8 bar (43.5 to 116 Psi)
• Nominal Flow Rate: 130 l/min
• Ambient Temperature: -5 to 40°C
• Pneumatic Connection: Sub-based

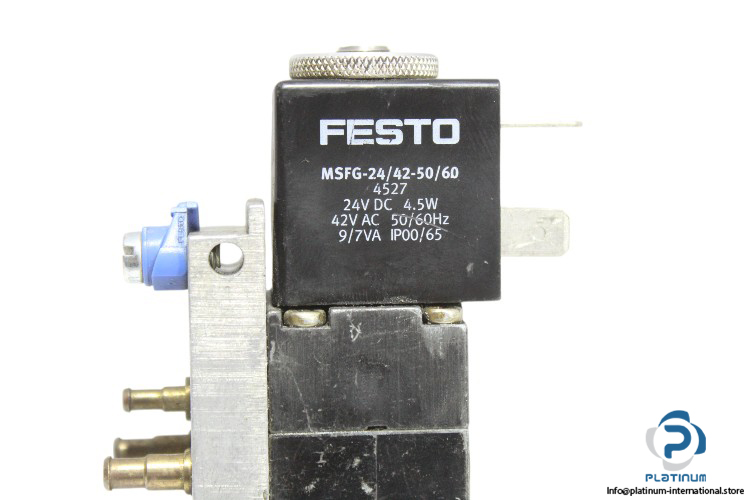

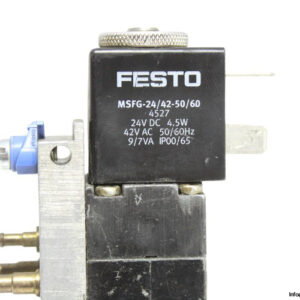

Attachment – Solenoid Coil

Manufacturer: Festo

Type: Solenoid Coil

Model: MSFG-24/42-50/60

Part No.: 4527

Technical Information:

• Coil Voltage: 24 V DC – 42 V AC, 50/60 Hz
• Power: 4.5 W, 9/7 VA
• Protection Degree: IP00/65
