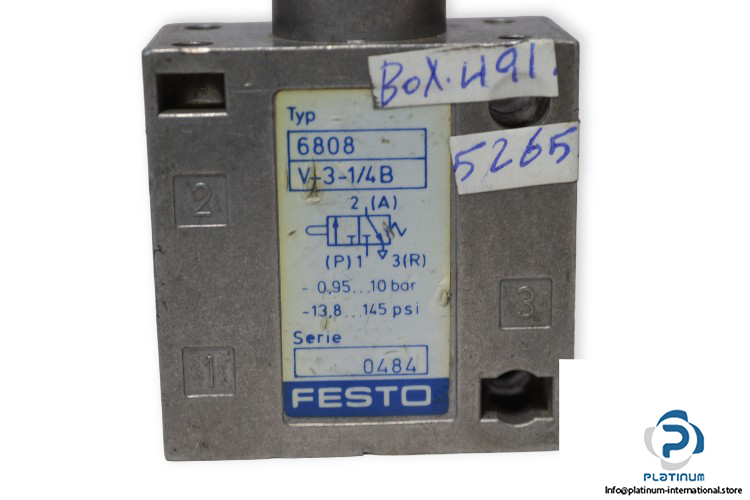

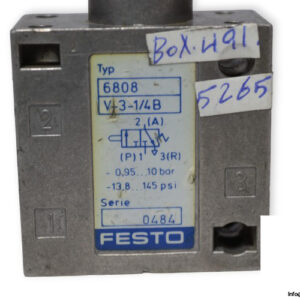

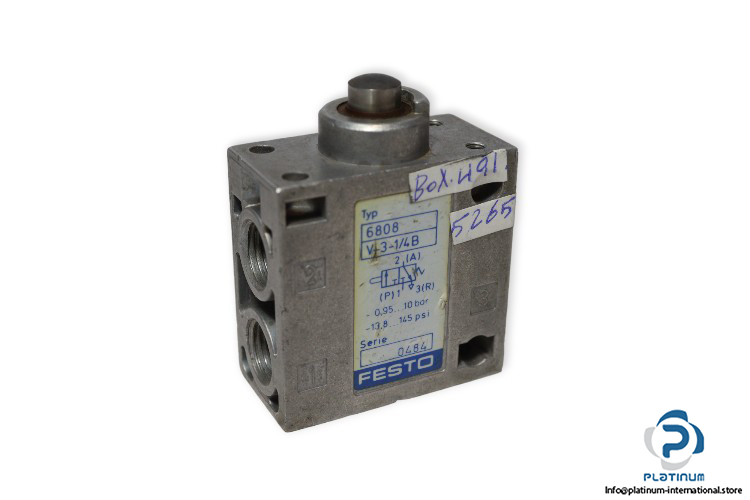

FESTO V-3-1/4B STEM ACTUATED VALVE

The FESTO V-3-1/4 B is a durable and precise stem actuated valve, engineered for effective mechanical control in pneumatic applications. With a robust aluminium die cast body and reliable 3/2-way monostable function, it offers dependable performance under varying pressure and temperature conditions.

Manufacturer: FESTO
Type: Stem Actuated Valve
Model: V-3-1/4-B
Part No.: 6808

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 3/2-way, closed, monostable
• Type of Actuation: Mechanically
• Medium Pressure: -0.95 … 10 bar
• Nominal Flow Rate: 600 l/min
• Actuating Force: 70 N
• Pneumatic Connection: G1/4
• Material: Aluminium die cast
• Ambient Temperature: -10 / 60 °C
