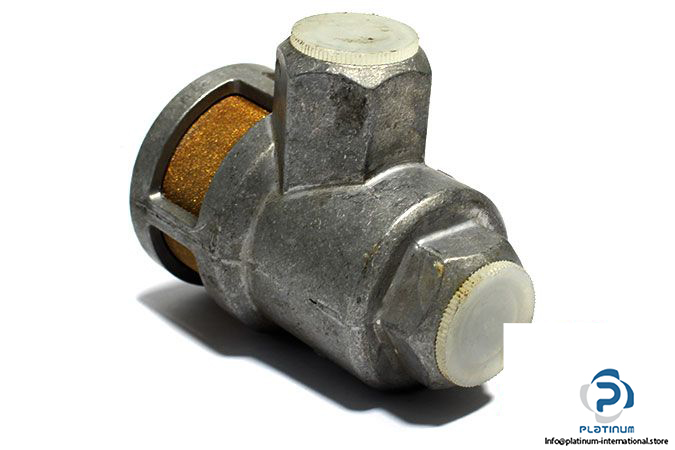

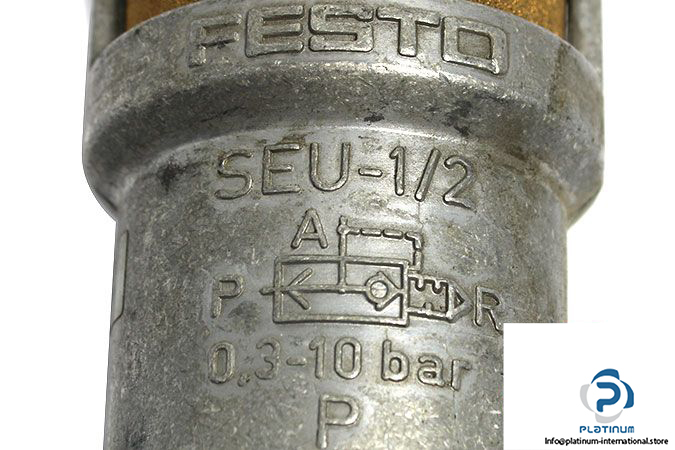

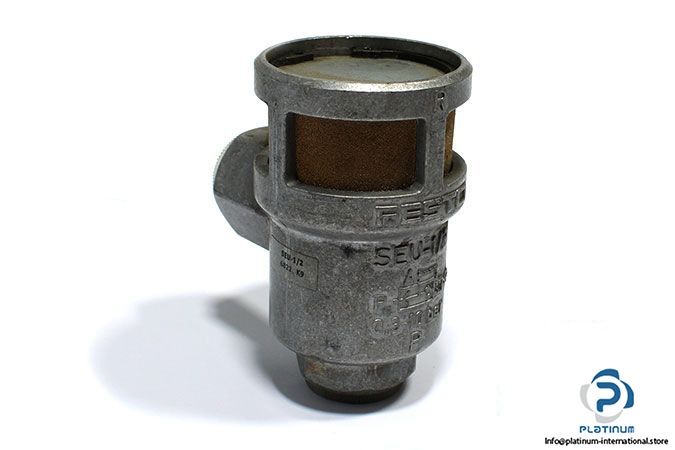

FESTO SEU-1/2 QUICK EXHAUST VALVE
The FESTO SEU-1/2 quick exhaust valve is engineered for high-speed pneumatic applications, enabling fast venting of compressed air to increase actuator response times. Made with durable die-cast aluminium and built to handle a wide pressure and temperature range, it ensures long-lasting performance in industrial automation systems.
Manufacturer: FESTO
Type: Quick Exhaust Valve
Model: SEU-1/2
Part No.: 6822
Technical Information
- Fluid: Air
- Operating Pressure: 0.3 / 10 bar
- Nominal Flow Rate: 4020 l/min
- Pneumatic Connection: G1/2
- Material: Die-cast aluminium
- Ambient Temperature: -20 / 75 °C
