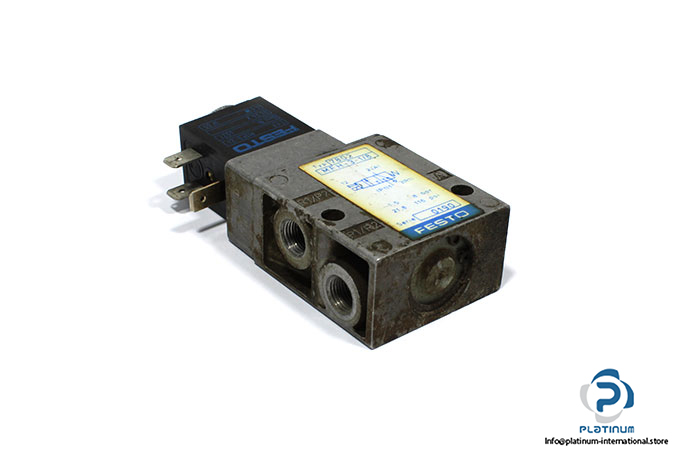

FESTO MFH-3-1/8 SINGLE SOLENOID VALVE WITH MSFG-24 COIL

The FESTO MFH-3-1/8 is a high-performance 3/2-way single solenoid valve, ideal for precision pneumatic control in industrial applications. With a robust poppet seat design and reliable monostable function, this valve is engineered for durability and consistent operation. Comes with the FESTO MSFG-24 solenoid coil for efficient electrical actuation.

Manufacturer: FESTO
Type: Single Solenoid Valve

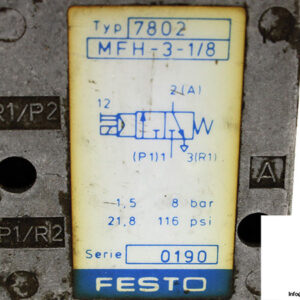

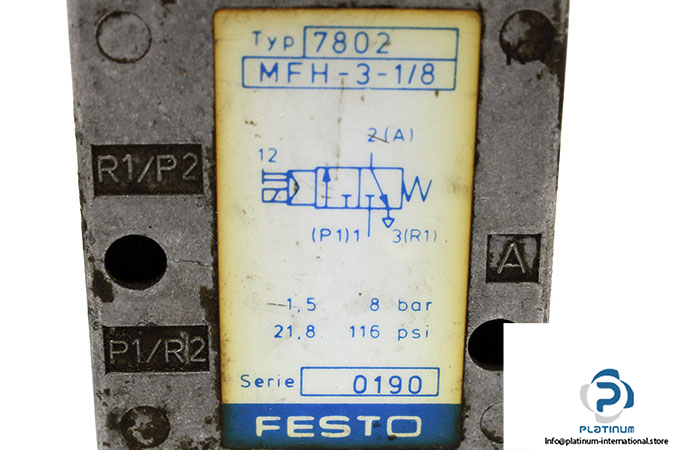

Model: MFH-3-1/8
Part No.: 7802

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 1.5 / 8 bar
• Nominal Flow Rate: 500 l/min
• Pneumatic Connection: G1/8
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 40 °C

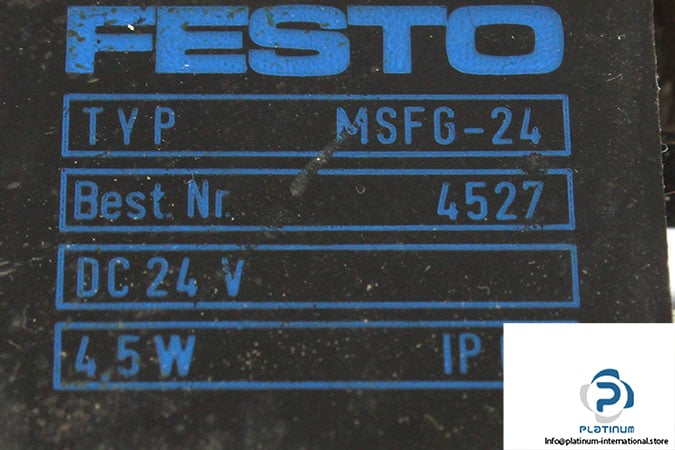

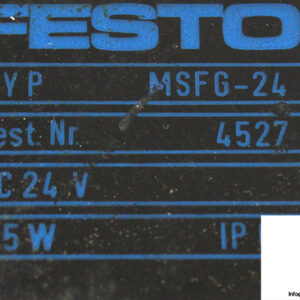

Attachment: FESTO MSFG-24 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFG-24
Part No.: 4527

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 4.5 W
• Protection Class: IP65
