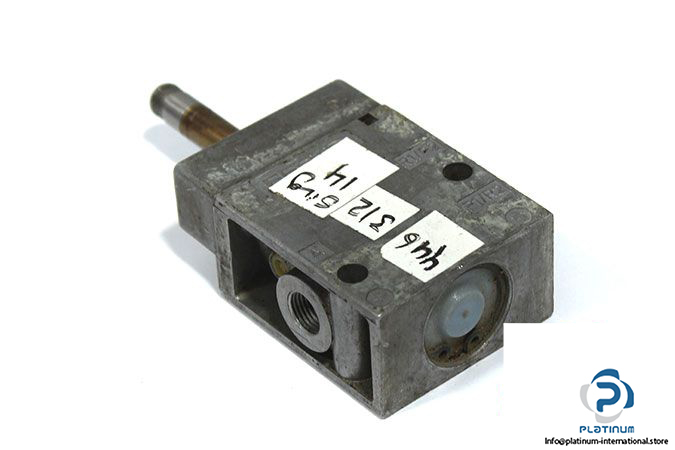

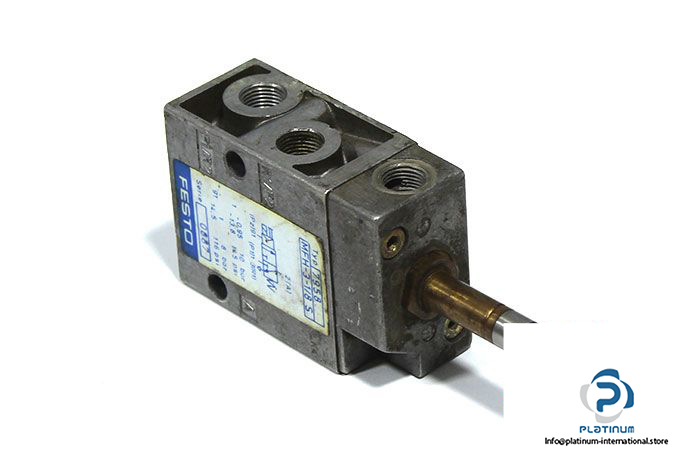

FESTO MFH-3-1/8 S SINGLE SOLENOID VALVE
The FESTO MFH-3-1/8S is a robust single solenoid valve designed for high-performance pneumatic applications. Featuring a poppet seat design and 3/2-way functionality, this valve ensures dependable air control with monostable operation.
Manufacturer: FESTO
Type: Single Solenoid Valve

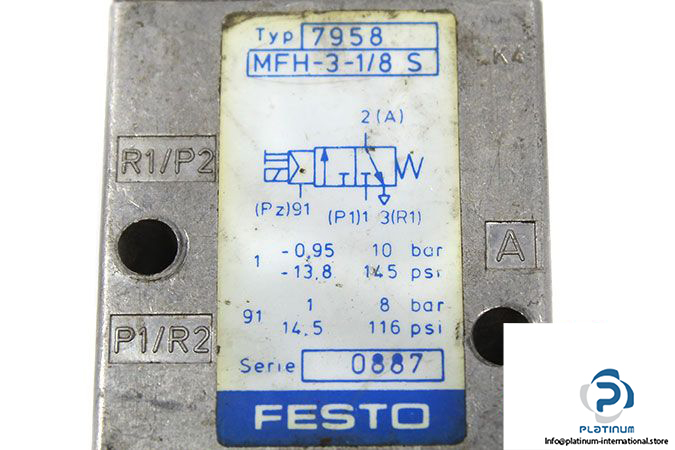

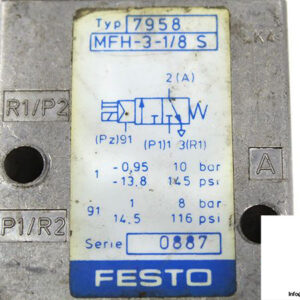

Model: MFH-3-1/8-S
Part No.: 7958
Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.95 to 10 bar
- Pilot Pressure: 1 to 8 bar
- Nominal Flow Rate: 500 l/min
- Pneumatic Connection: G1/8
- Material: Die-cast aluminium
- Ambient Temperature: -5 to 40 °C
