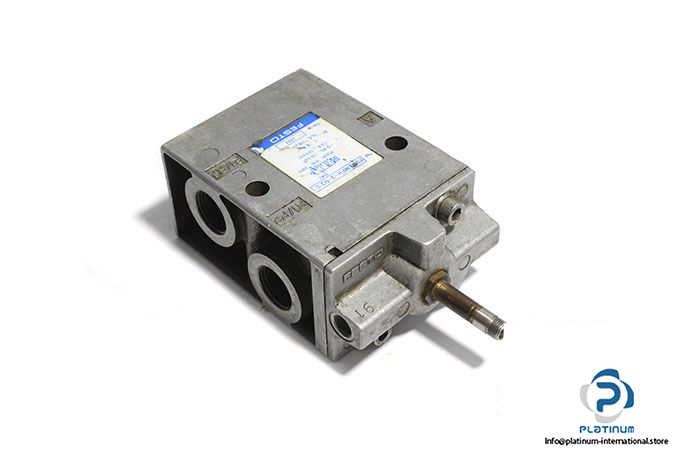

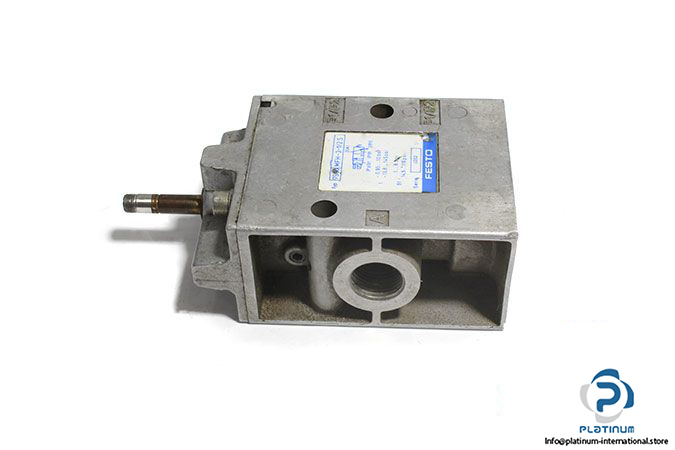

FESTO MFH-3-1/2-S SINGLE SOLENOID VALVE

The FESTO MFH-3-1/2-S is a high-performance single solenoid valve engineered for robust and reliable control of pneumatic systems. Featuring a 3/2-way closed, monostable function, and a die-cast aluminium body, it delivers precise air regulation under a wide range of operating pressures.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-1/2-S
Part No.: 7960

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.95 … 10 bar
• Pilot Pressure: 1 … 8 bar
• Nominal Flow Rate: 3700 l/min
• Pneumatic Connection: G1/2
• Material: Die-cast Aluminium
• Ambient Temperature: -5 / 40 °C
