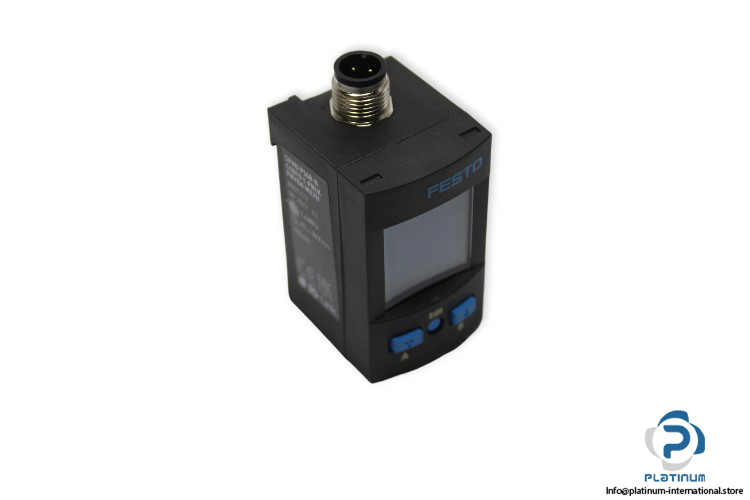

Manufacturer: FESTO
Type: Pressure Sensor

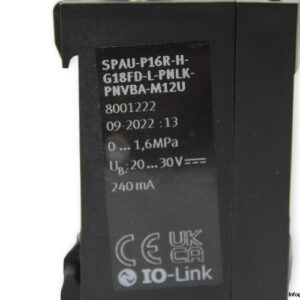

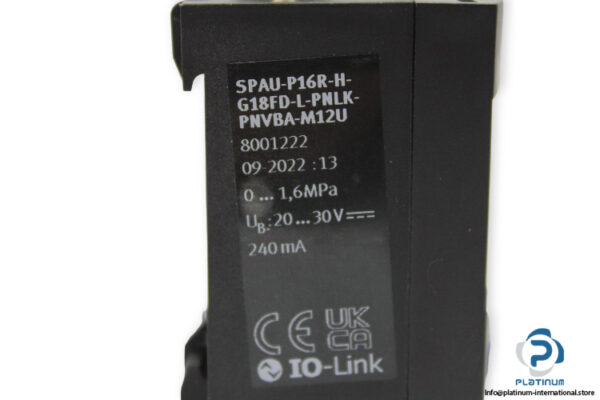

Model: SPAU-P16R-H-G18FD-L-PNLK-PNVBA-M12U
Part No.: 8001222

Media: Compressed Air
Pressure Measuring Range: 0 … 1. 6 MPa,0 … 16 bar
Overload Pressure: 20 bar
Switching Output: 2 x PNP or 2 x NPN, switchable
Switching element function: N/C or N/O contact, switchable
Connection: G 1/8
Electrical Connection: M12 Connector
Supply Voltage: 20 … 30 V DC
Current Rating: 240 mA
Media Temperature Range: 0 … 50°C
