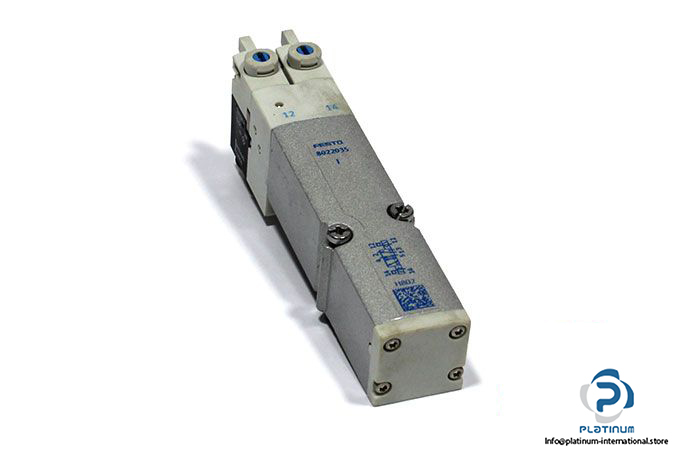

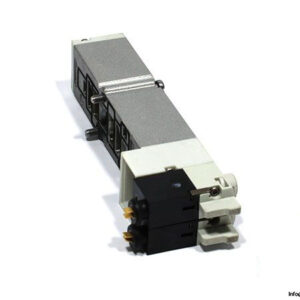

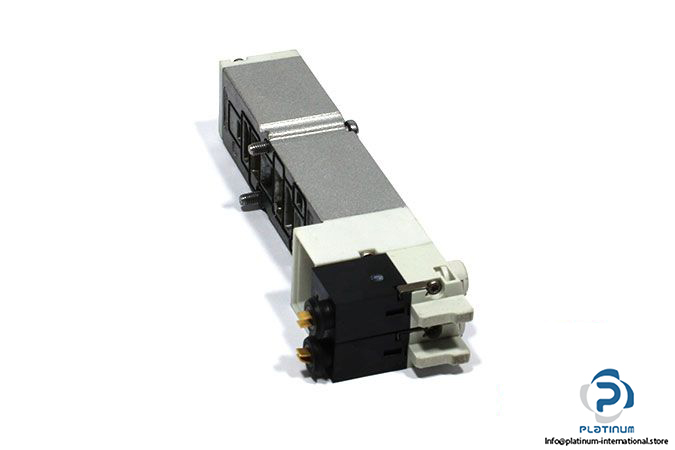

FESTO VMPA2-M1BH-J-PI DOUBLE SOLENOID VALVE WITH COIL

The FESTO VMPA2-M1BH-J-PI is a high-performance 5/2 bistable double solenoid valve, engineered for precision pneumatic control. Featuring a piston gate design and robust die-cast aluminium construction, this valve is ideal for demanding industrial environments. It comes with the FESTO 8002600 solenoid coil for efficient electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VMPA2-M1BH-J-PI

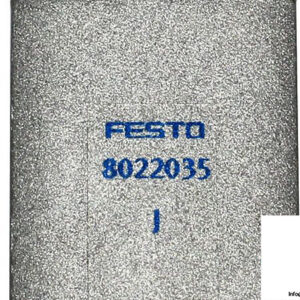

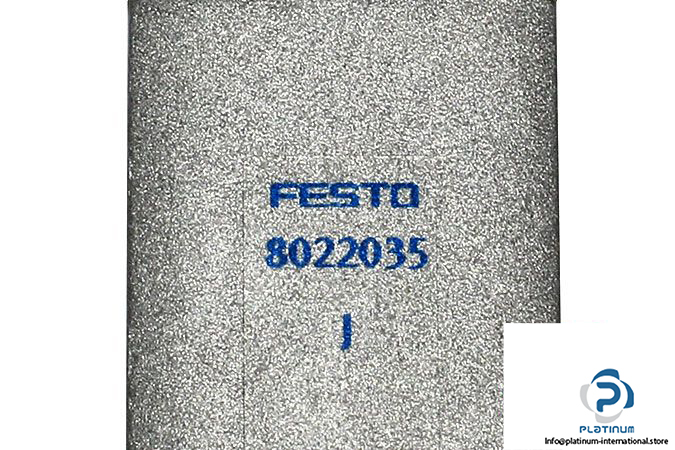

Part No.: 8022035

Technical Information

• Fluid: Air
• Design: Piston gate valve

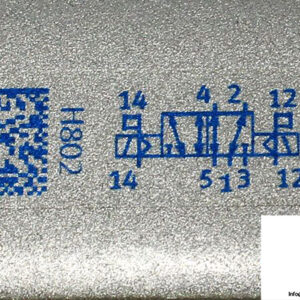

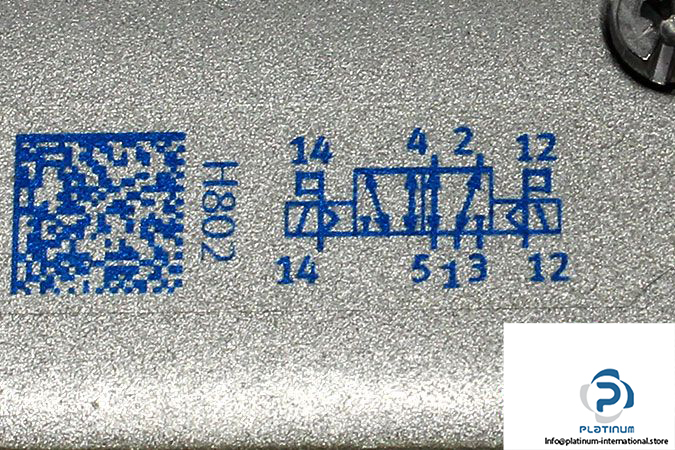

• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 860 l/min
• Pneumatic Connection: Sub based
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

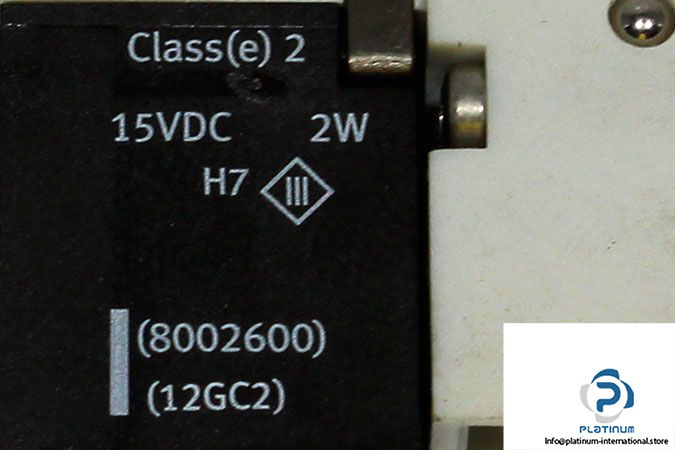

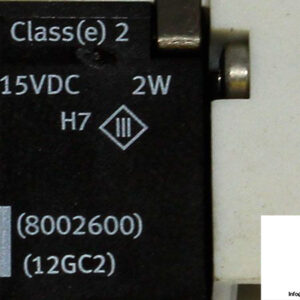

Solenoid Coil Attachment: FESTO 8002600

Manufacturer: FESTO
Type: Solenoid Coil
Model: 8002600

Coil Technical Information

• Supply Voltage: 15 V DC
• Power Consumption: 2 W
