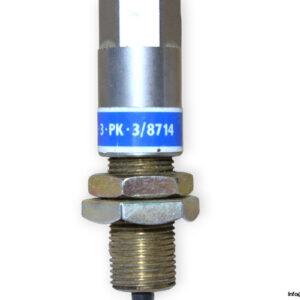

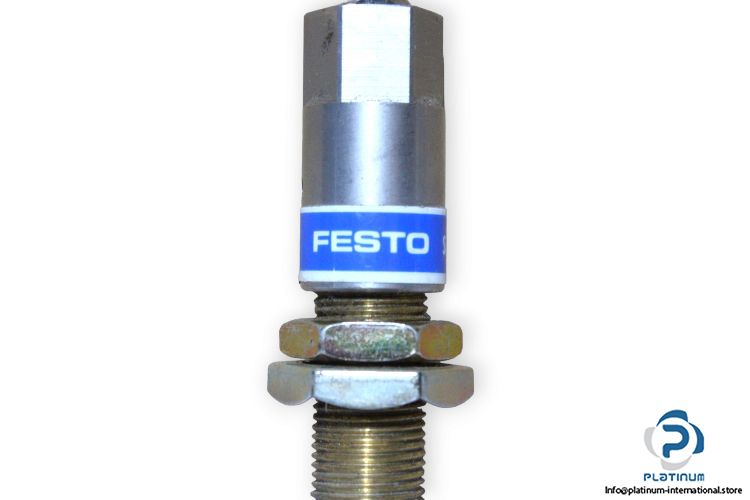

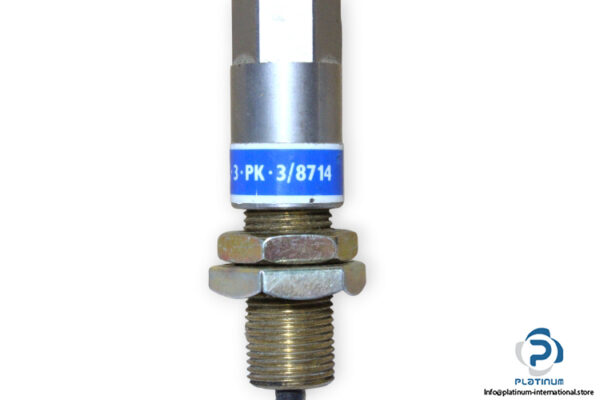

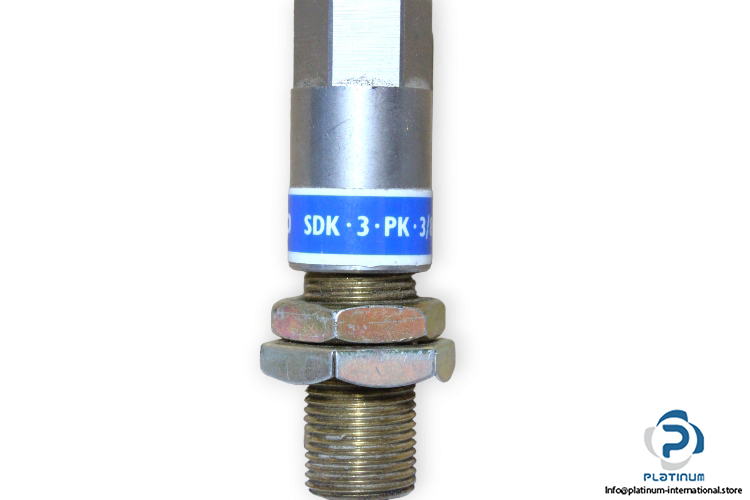

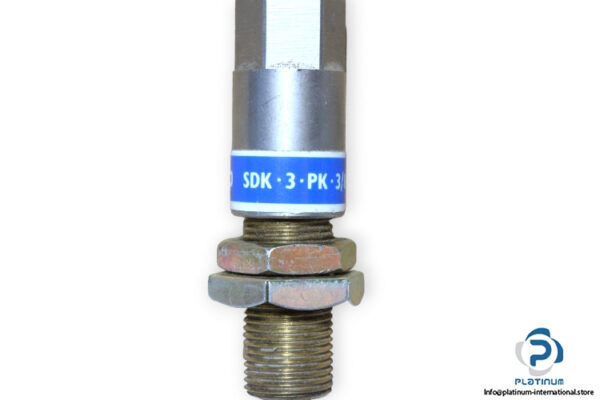

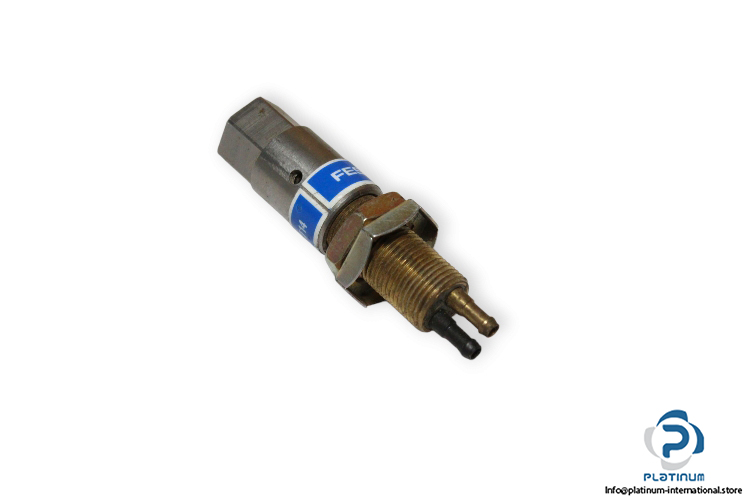

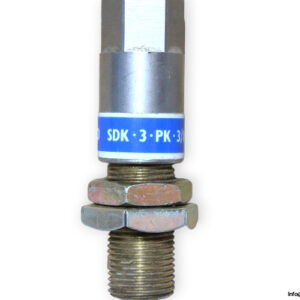

SDK-3-PK-3 END STOP LIMIT SWITCH
The SDK3PK3 is a mechanically actuated end stop limit switch designed for precise pneumatic control. Built with a ball seat structure and mechanical spring reset, it ensures reliable operation under varying pressure and temperature conditions.
Type: End Stop Limit Switch
Model: SDK-3-PK-3
Part No.: 8714
Technical Information
- Nominal Width: 0.6 mm
- Actuation Type: Mechanical
- Operating Pressure: 0 / 8 bar
- Standard Nominal Flow Rate: 16 l/min
- Actuating Force: 12 N
- Structural Design: Ball Seat
- Reset Method: Mechanical Spring
- Pneumatic Connection: PK-3
- Ambient Temperature: -10 / 80 °C
