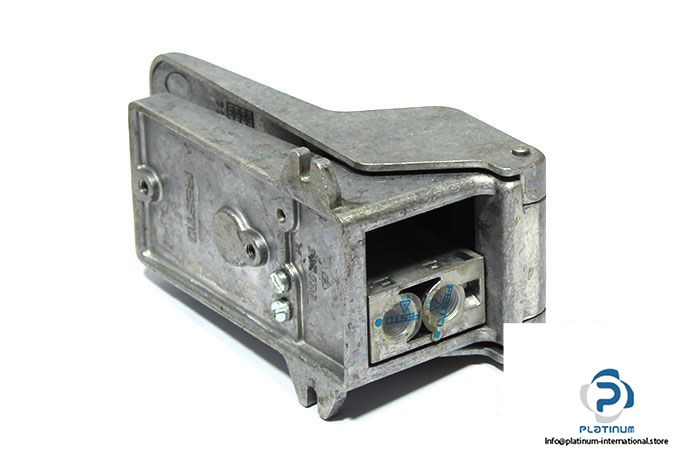

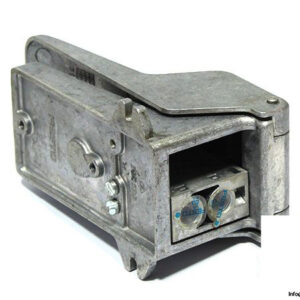

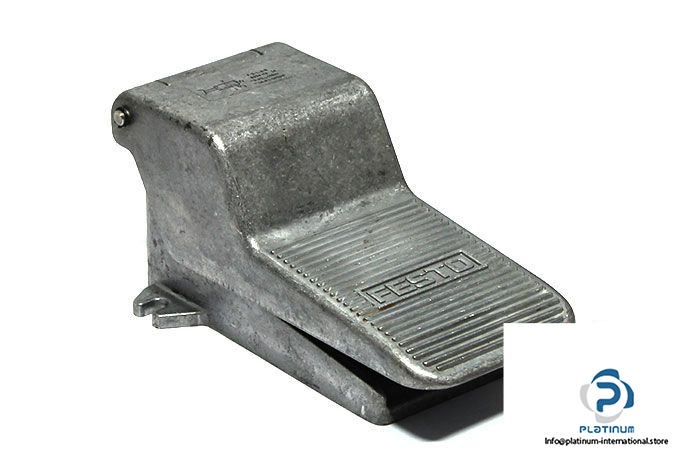

FESTO F-3-1/4-B FOOT VALVE
The FESTO F314B is a robust and ergonomically designed foot valve ideal for manual pneumatic control. Featuring a durable die-cast aluminum body, this 3/2-way poppet seat valve ensures safe and efficient operation in industrial air systems.
Manufacturer: FESTO
Type: Foot Valve
Model: F-3-1/4-B
Part No.: 8984
Technical Information
- Fluid: Air
- Design: Poppet seat

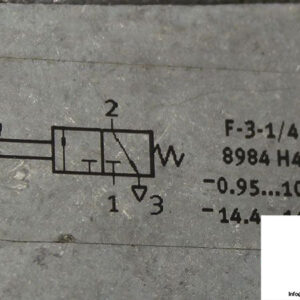

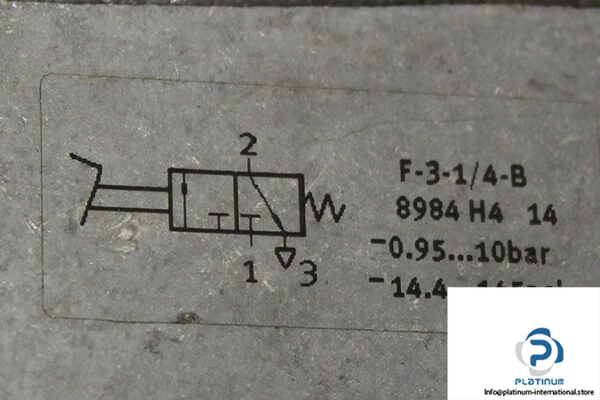

- Function: 3/2-way, closed, monostable
- Type of Actuation: Manually
- Operating Pressure: -0.95 to 10 bar
- Nominal Flow Rate: 600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Actuating Force: 50 N
- Temperature Range: -10 to 60 °C
