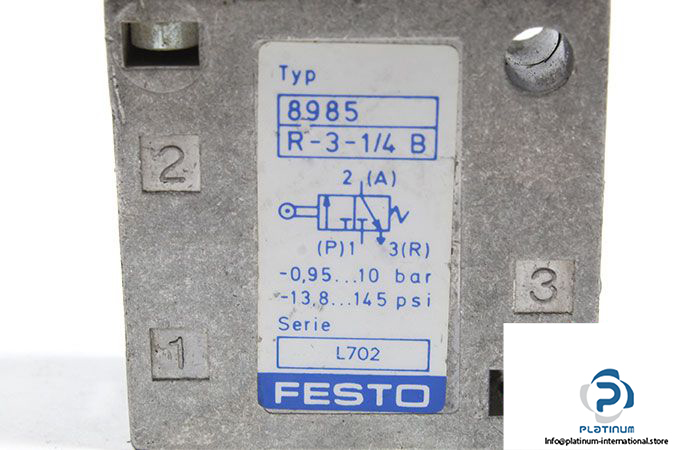

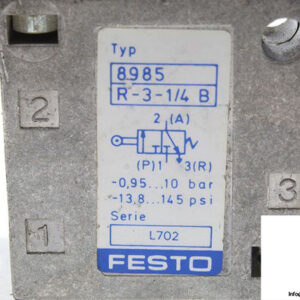

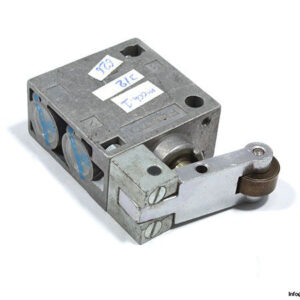

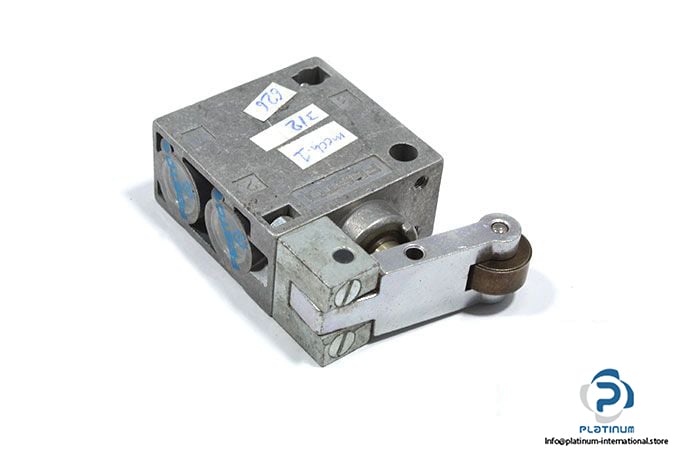

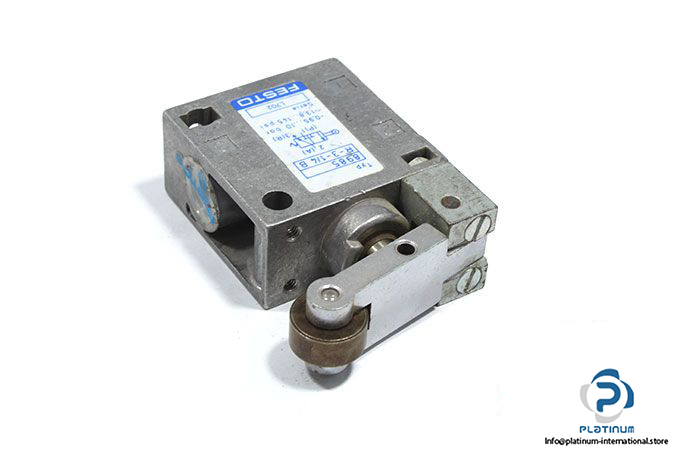

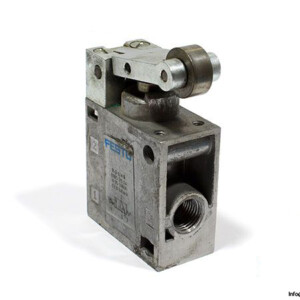

FESTO R-3-1/4-B ROLLER LEVER VALVE
The FESTO R-3-1/4-B is a robust mechanically actuated roller lever valve designed for reliable pneumatic control. Its 3/2-way closed, monostable function makes it suitable for high-performance automation systems. Built from die-cast aluminium, it ensures durability in a wide range of industrial environments.
Manufacturer: FESTO
Type: Roller Lever Valve
Model: R-3-1/4-B
Part No.: 8985
Technical Information
- Fluid: Air
- Design: Piston seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Mechanically
- Operating Pressure: -0.95 to 10 bar
- Nominal Flow Rate: 600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminium
- Ambient Temperature: -10 to 60 °C
