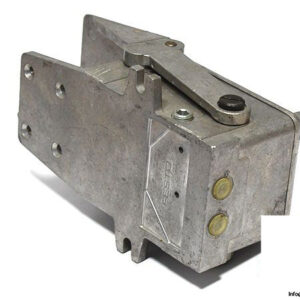

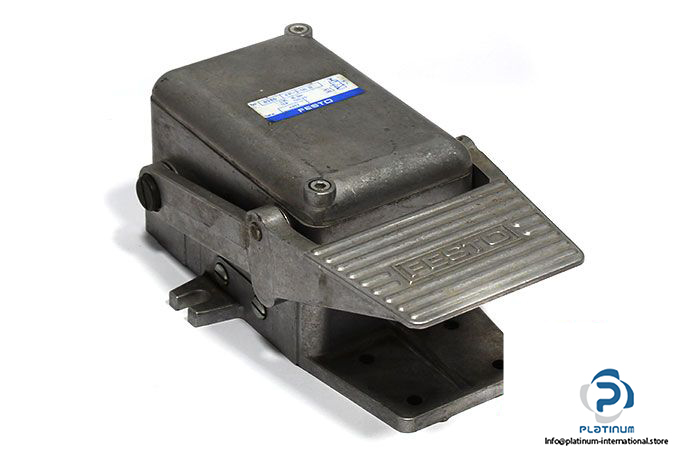

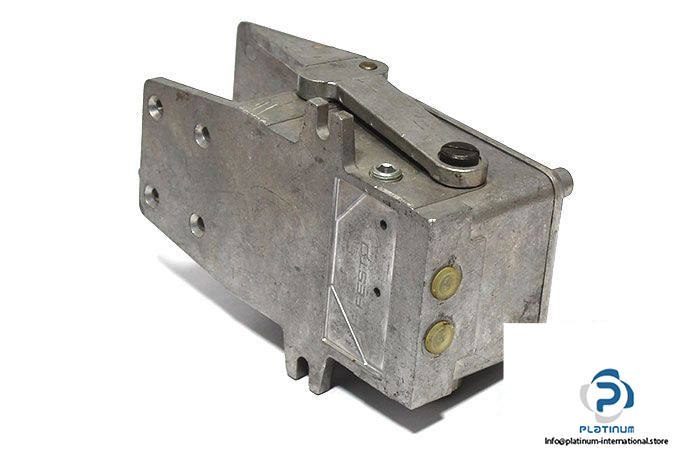

FESTO FP-3-1/4-B FOOT VALVE WITH DETENT

The FESTO FP-3-1/4-B is a high-performance foot valve with detent, engineered for manual pneumatic control applications. Designed with a durable die-cast aluminum body and poppet seat mechanism, it offers reliable operation in demanding industrial environments.

Manufacturer: FESTO
Type: Foot Valve with Detent
Model: FP-3-1/4-B
Part No.: 8986

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 5/2-way, monostable
• Type of Actuation: Manually
• Operating Pressure: -0.95 … 10 bar
• Nominal Flow Rate: 600 l/min
• Actuating Force: 58.5 N
• Pneumatic Connection: G1/4
• Material: Die-cast aluminum
• Ambient Temperature: -10 / 60 °C
