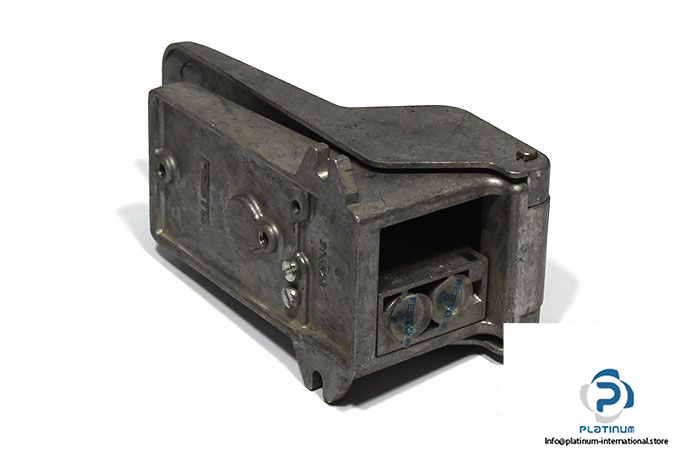

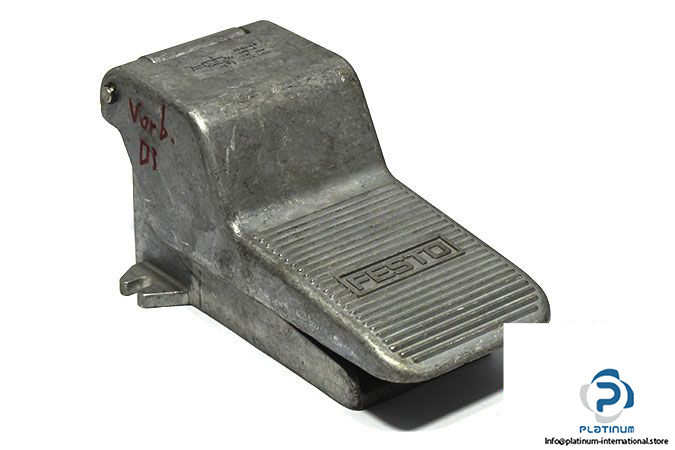

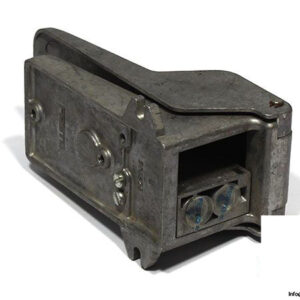

FESTO FO-3-1/4-B FOOT VALVE
The Festo FO314B foot valve is designed for reliable manual control of pneumatic systems. Featuring a poppet seat design and 3/2 monostable function, this valve is ideal for applications requiring hands-free operation with robust pressure handling.
Manufacturer: FESTO
Type: Foot Valve
Model: FO-3-1/4-B
Part No.: 8988
Technical Information
- Fluid: Air
- Design: Poppet seat

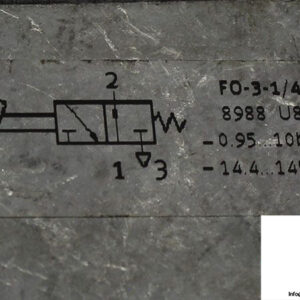

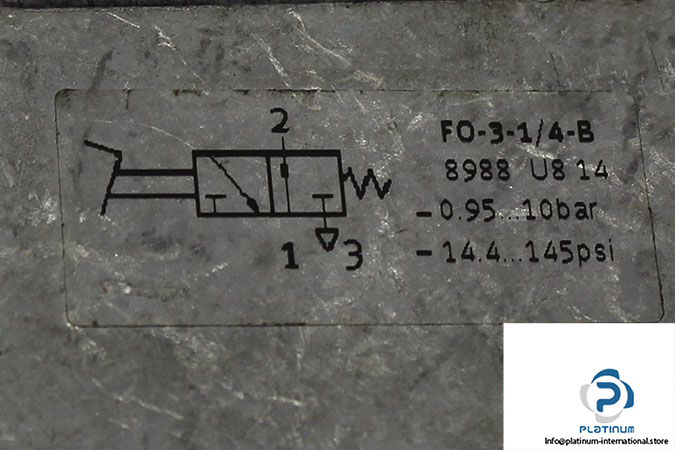

- Function: 3/2 open, monostable
- Type of Actuation: Manually
- Operating Pressure: -0.95 to 10 bar
- Nominal Flow Rate: 600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Actuating Force: 55 N
- Temperature Range: -10 to 60 °C
