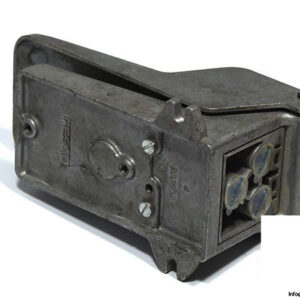

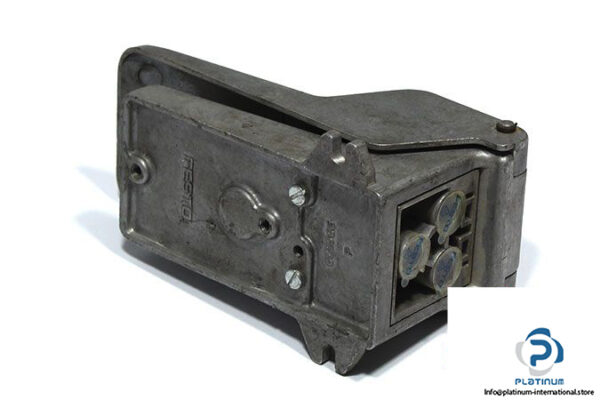

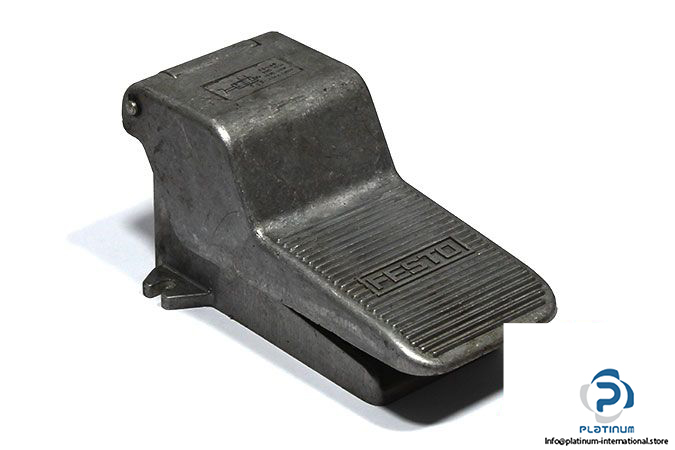

FESTO F-5-1/4-B FOOT VALVE

The FESTO F514B is a robust and efficient foot valve designed for precise manual pneumatic control in industrial systems. Built with a durable die-cast aluminum body and poppet seat design, this valve delivers reliable 5/2-way monostable functionality and high flow performance.

Manufacturer: FESTO
Type: Foot Valve
Model: F-5-1/4-B
Part No.: 8992

Technical Information

• Fluid: Air
• Design: Poppet seat

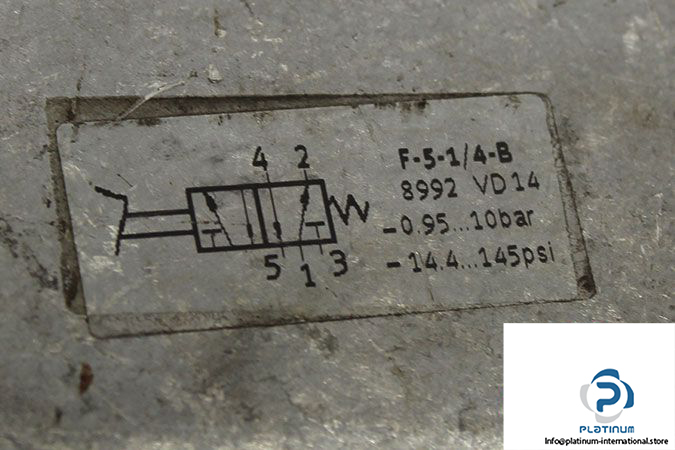

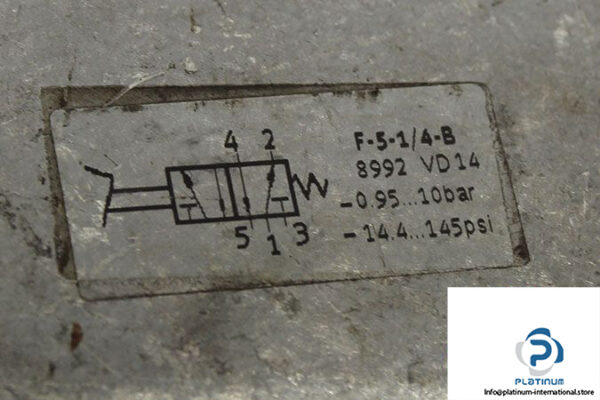

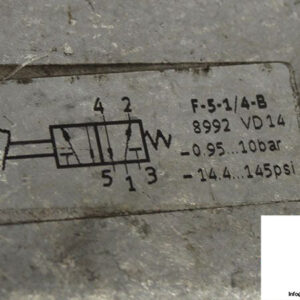

• Function: 5/2-way, monostable
• Type of Actuation: Manually
• Operating Pressure: -0.9 / 10 bar
• Nominal Flow Rate: 550 l/min
• Pneumatic Connection: G1/4
• Material: Die-cast aluminum
• Actuating Force: 87 N
• Temperature Range: -10 … 60 °C
