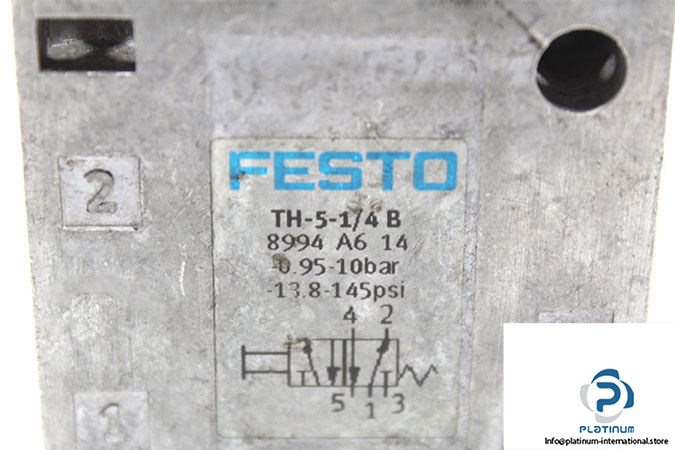

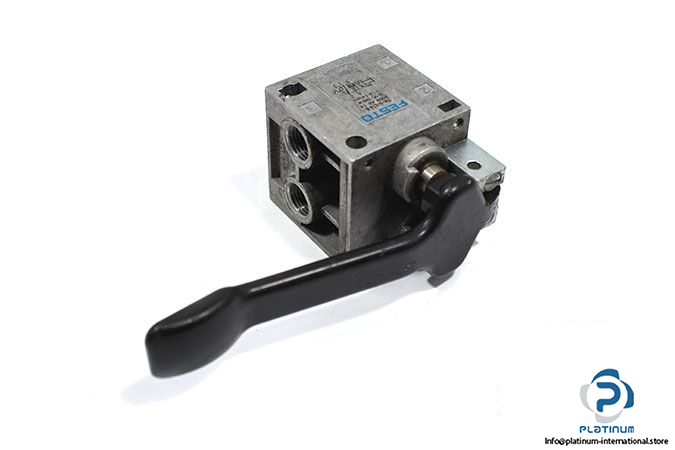

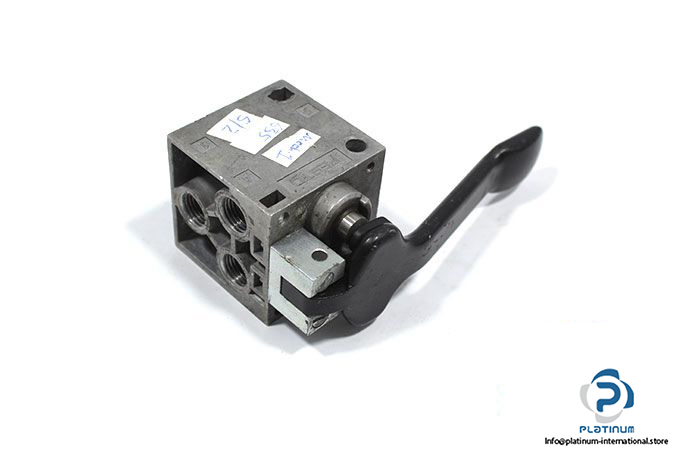

FESTO TH-5-1/4-B FINGER LEVER VALVE

The FESTO TH-5-1/4-B is a durable and compact finger lever valve designed for manual pneumatic control. Built with anodized aluminum, this 5/2-way monostable valve features high flow capacity and mechanical actuation, making it ideal for demanding industrial automation systems.

Manufacturer: FESTO
Type: Finger Lever Valve
Model: TH-5-1/4-B
Part No.: 8994

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 5/2-way, monostable
• Type of Actuation: Mechanically
• Operating Pressure: -0.95 … 10 bar
• Nominal Flow Rate: 550 l/min
• Actuating Force: 34 N
• Pneumatic Connection: G1/4
• Material: Anodized aluminum
• Ambient Temperature: -10 / 60 °C
