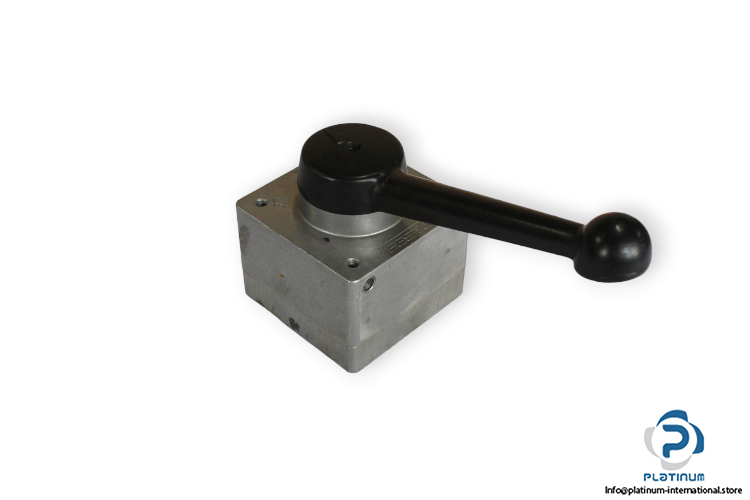

FESTO HS-4/3-1/2-B HAND LEVER VALVE
The FESTO HS4312B is a high-performance manually actuated hand lever valve, ideal for precise control in pneumatic systems. With robust construction and rotary slide valve design, it delivers reliable operation in demanding industrial applications.
Manufacturer: FESTO
Type: Hand Lever Valve

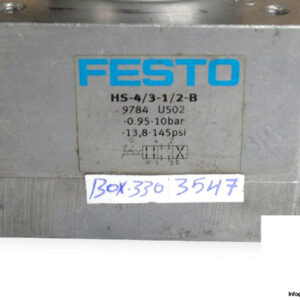

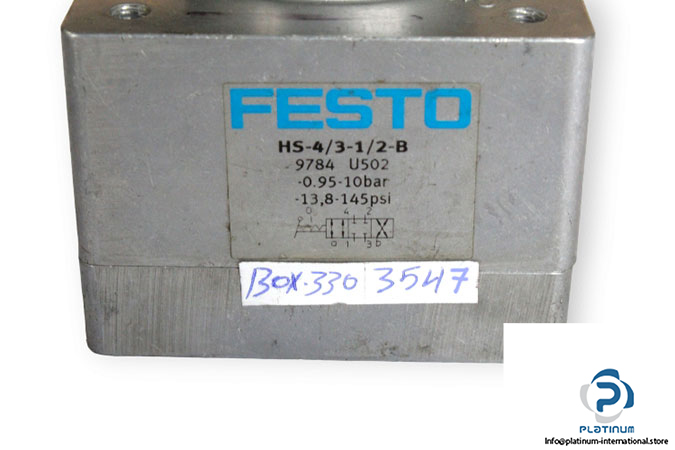

Model: HS-4/3-1/2-B
Part No.: 9784
Technical Information
- Fluid: Air
- Design: Rotary Slide Valve
- Valve Function: 4/3 Way Valve
- Type of Actuation: Manually
- Working Pressure: -0.95 to 10 bar
- Flow Rate: 3500 l/min
- Actuating Force: 26 N
- Nominal Diameter: 12 mm
- Pneumatic Connection: G1 1/2
- Ambient Temperature: -20 to 80 °C
