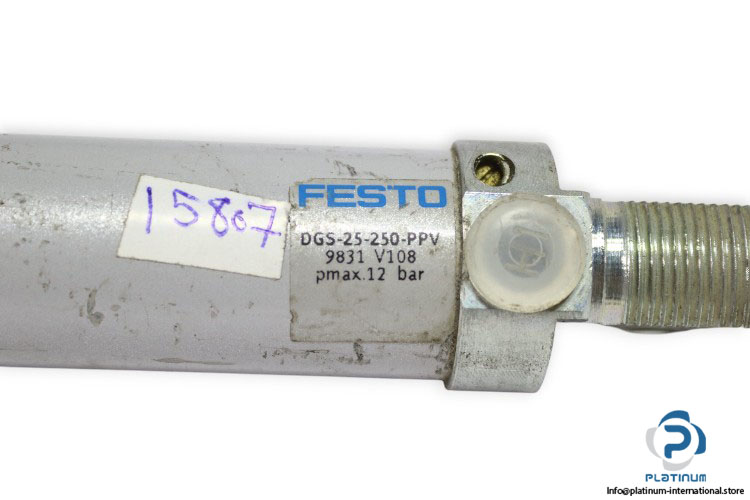

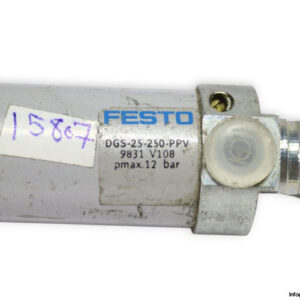

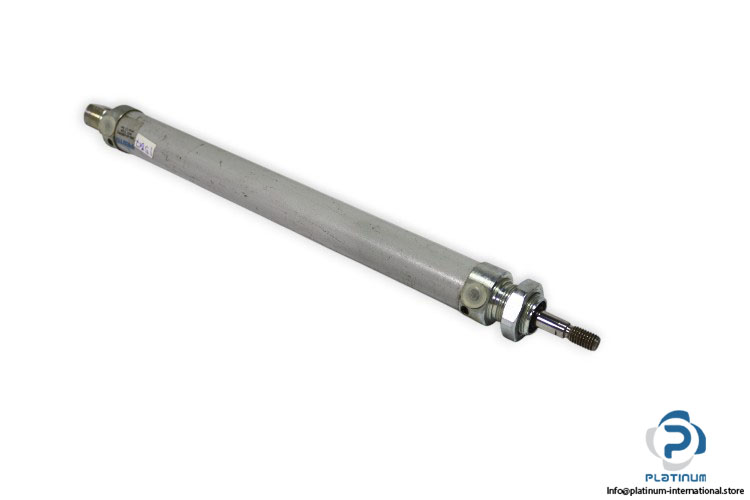

Festo DGS-25-250-PPV Round Cylinder
The Festo DGS-25-250-PPV is a high-performance pneumatic round cylinder designed for reliable operation in industrial automation and motion control applications. With a 250 mm stroke length, precision piston design, and adjustable cushioning, it provides smooth, efficient performance under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-25-250-PPV
Part No.: 9831
Ref. Code: V108
Technical Information
- Stroke Length: 250 mm
- Piston Diameter: 25 mm
- Rod Diameter: 10 mm
- Pneumatic Connection: G1/8
- Mode of Operation: Double Acting
- Operating Medium: Compressed Air
- Max. Operating Pressure: 12 bar
- Shape: Circular
- Ambient Temperature: -20 to 80 °C
- Cushioning: Pneumatic cushioning adjustable at both ends
- Variants: Single-ended piston rod
