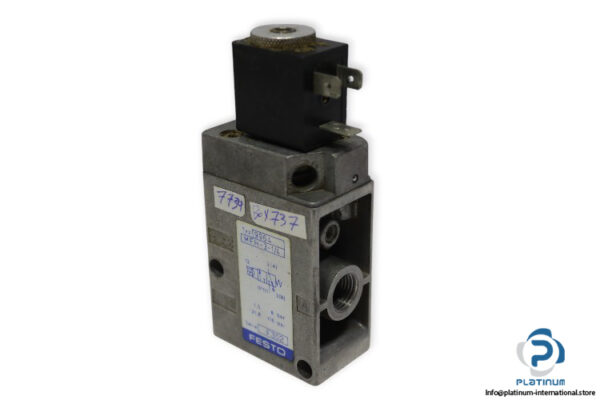

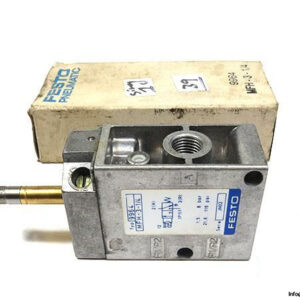

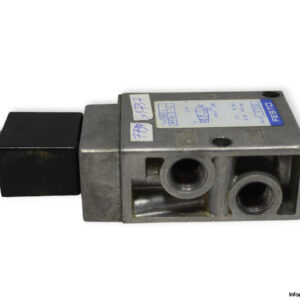

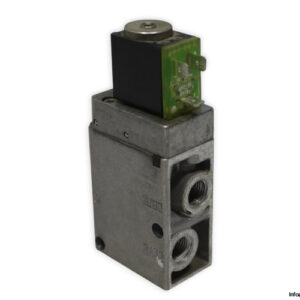

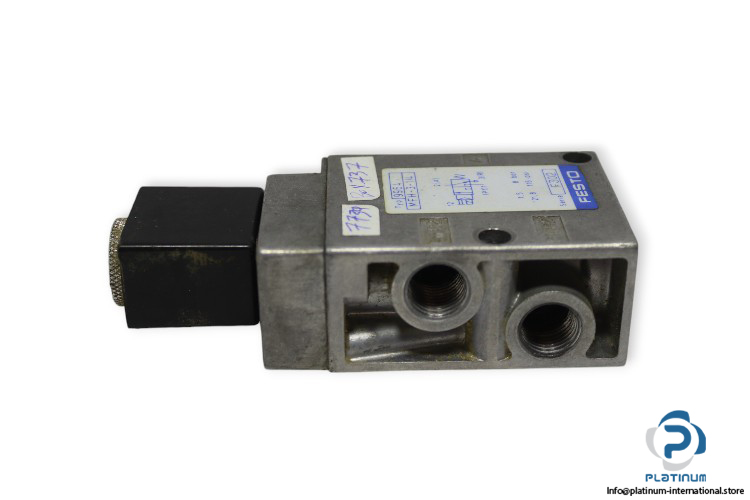

FESTO MFH-3-1/4 SINGLE SOLENOID VALVE WITH COIL
The FESTO MFH-3-1/4 is a high-performance single solenoid valve designed for reliable air control in industrial automation. Featuring a robust die-cast aluminum body and a poppet seat design, this 3/2-way valve is monostable and electrically actuated for efficient switching. It comes equipped with the FESTO MSFW-24-50/60 solenoid coil for consistent operation under varying conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve

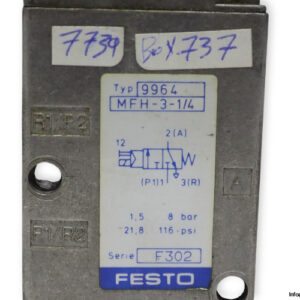

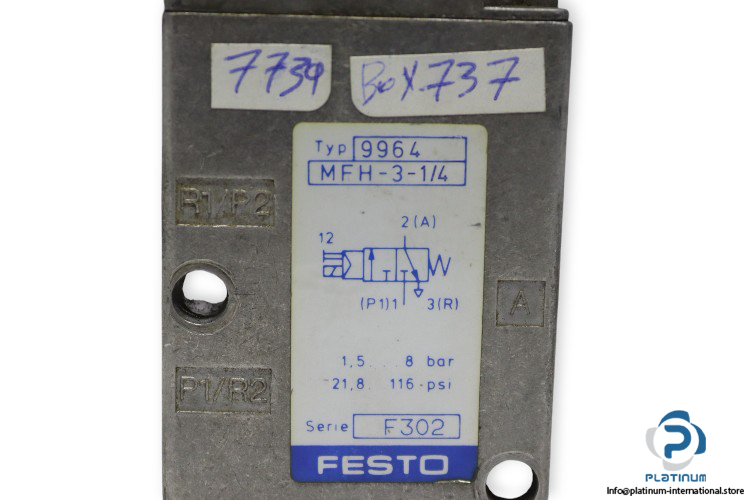

Model: MFH-3-1/4
Part No.: 9964
Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 1.5 / 8 bar
- Nominal Flow Rate: 800 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 / 40 °C

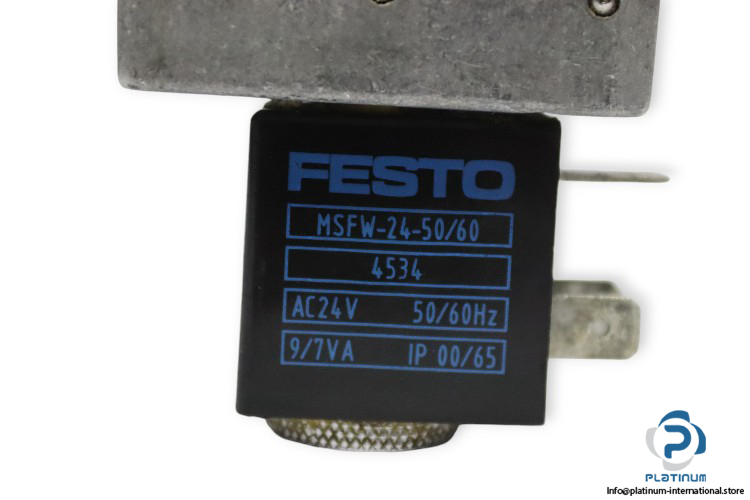

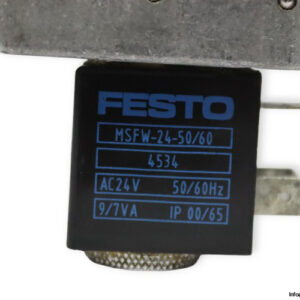

Solenoid Coil Attachment: FESTO MSFW-24-50/60
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFW-24-50/60
Part No.: 4534
- Supply Voltage: 24 V AC
- Frequency: 50 / 60 Hz
- Power Consumption: 9/7 VA
- Protection Class: IP00 / IP65
