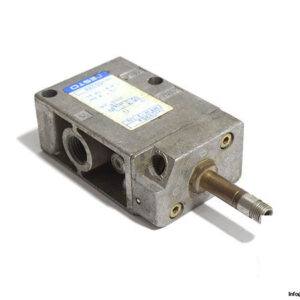

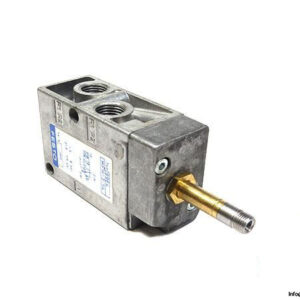

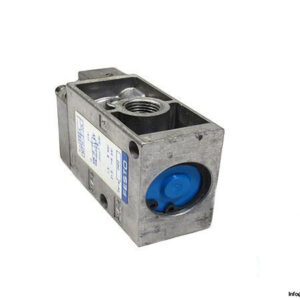

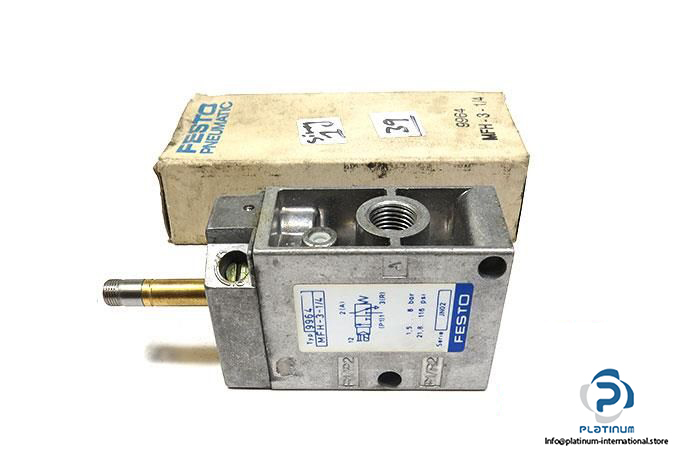

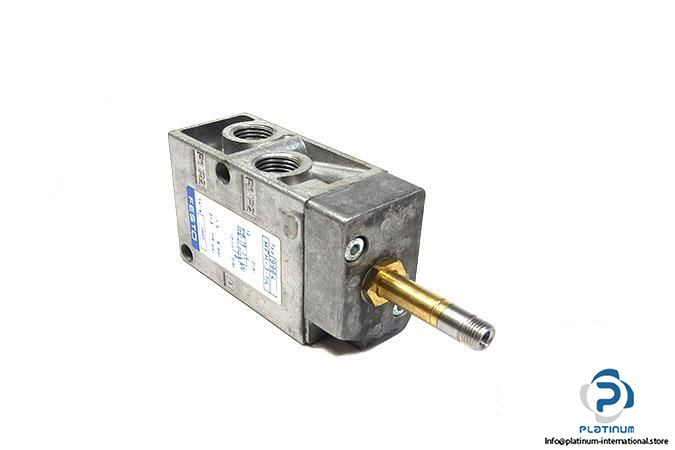

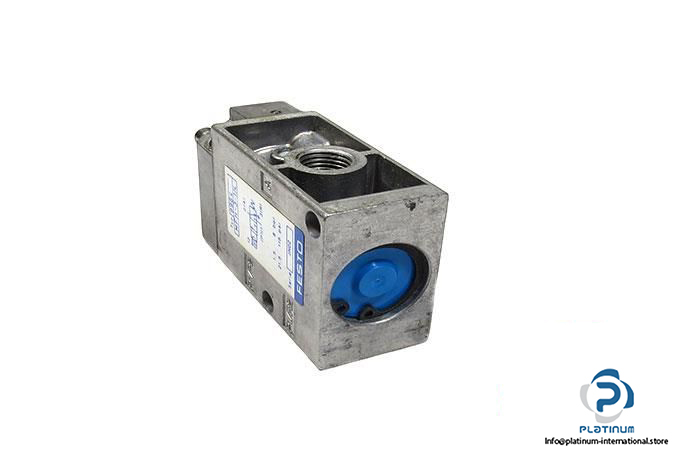

FESTO MFH-3-1/4 Single Solenoid Control Valve

The FESTO MFH-3-1/4 is a high-performance single solenoid control valve designed for precise pneumatic control in industrial applications. With a nominal flow rate of 800 l/min, it offers efficient performance with adjustable operating pressure and a compact design for easy integration.

Manufacturer: FESTO

Type: Single Solenoid Control Valve

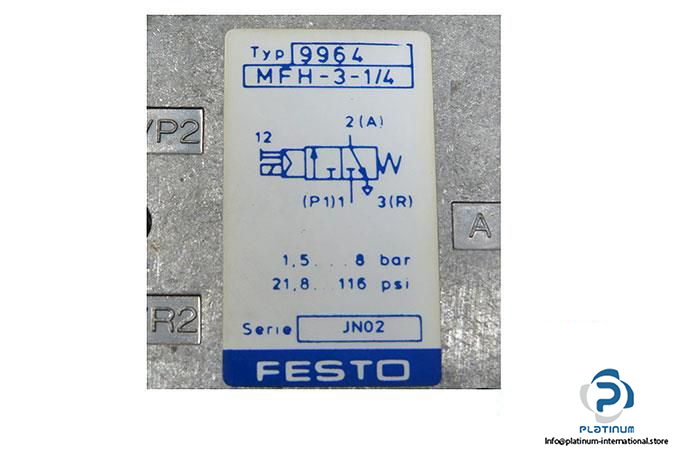

Model: MFH-3-1/4

Part No.: 9964

Technical Data:

• Standard Nominal Flow Rate: 800 l/min
• Type of Actuation: Electrical
• Operating Pressure: 1.5 “ 8 bar
• Ambient Temperature: -5 / +40 °C
• Pneumatic Connection: G1/4
• Plug Diameter: 7.8 mm
• Pilot Exhaust Air Port 82: M5
