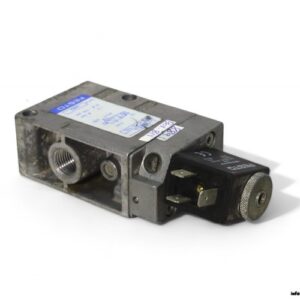

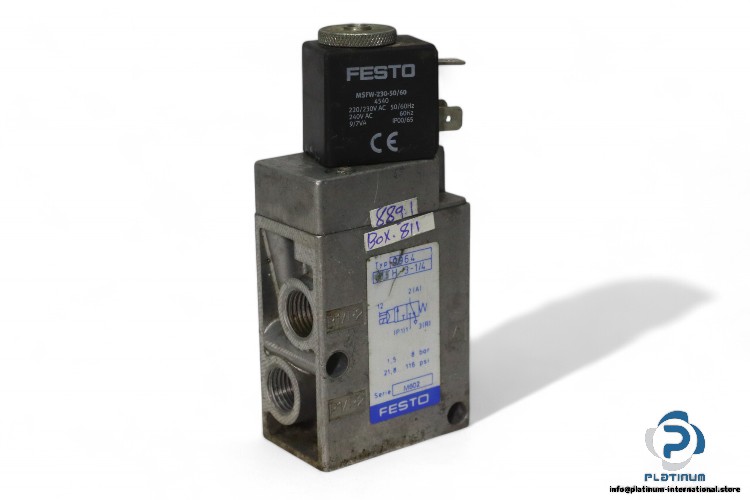

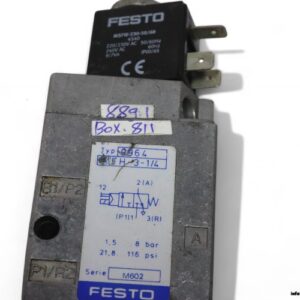

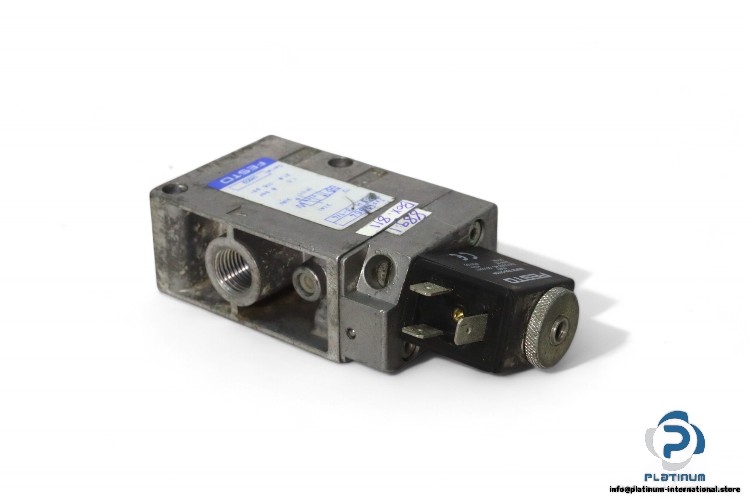

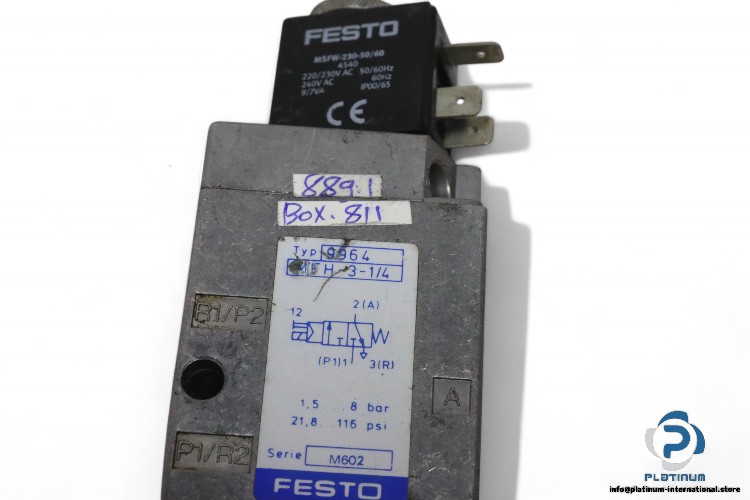

FESTO MFH-3-1/4 SINGLE SOLENOID VALVE WITH MSFW-230-50/60 COIL
The FESTO MFH-3-1/4 is a robust and efficient single solenoid valve designed for high-speed air control. This 3/2-way valve is electrically actuated and features a monostable, closed function. Engineered with die-cast aluminum and equipped with a powerful FESTO MSFW-230-50/60 solenoid coil, it ensures reliable operation in industrial pneumatic systems.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-1/4
Part No.: 9964
Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 1.5 … 8 bar
- Nominal Flow Rate: 800 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 … 40 °C
Attachment: FESTO 4540 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFW-230-50/60
Part No.: 4540
Solenoid Coil Technical Data
- Supply Voltage: 230 V AC
- Frequency: 50 / 60 Hz
- Power Consumption: 9/7 VA
- Protection Class: IP00 / IP65
