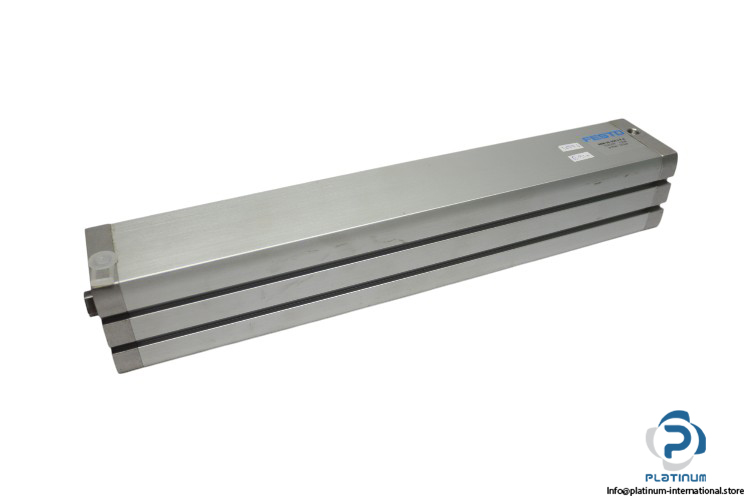

FESTO COMPACT CYLINDER

The Festo Compact Cylinder (Model: ADN-50-350-I-P-A, Part No. 536309) is designed for reliable and efficient operation in a variety of industrial applications. With a stroke length of 350 mm and a piston diameter of 50 mm, this double-acting cylinder is built to handle high-pressure environments up to 10 bar and offers precision with proximity sensing for accurate positioning.

Manufacturer: Festo

Type: Compact Cylinder

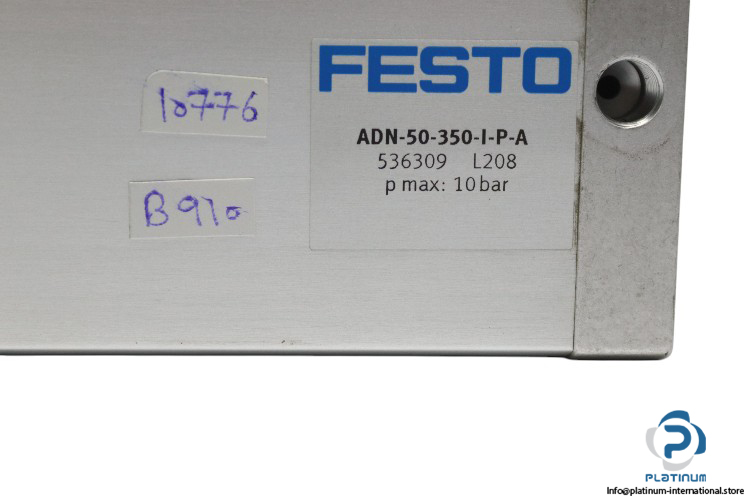

Model: ADN-50-350-I-P-A

Part No.: 536309

Technical Specifications

• Stroke Length: 350 mm
• Piston Diameter: 50 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Pneumatic Connection: G1/8
• Ambient Temperature: -40 °C … 120 °C
