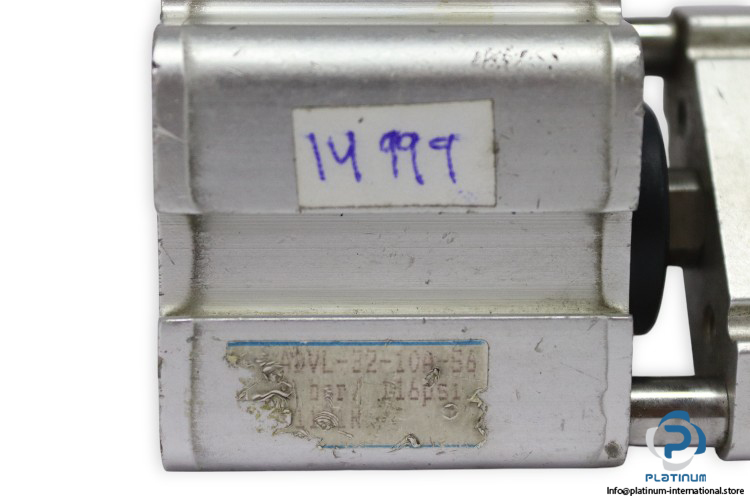

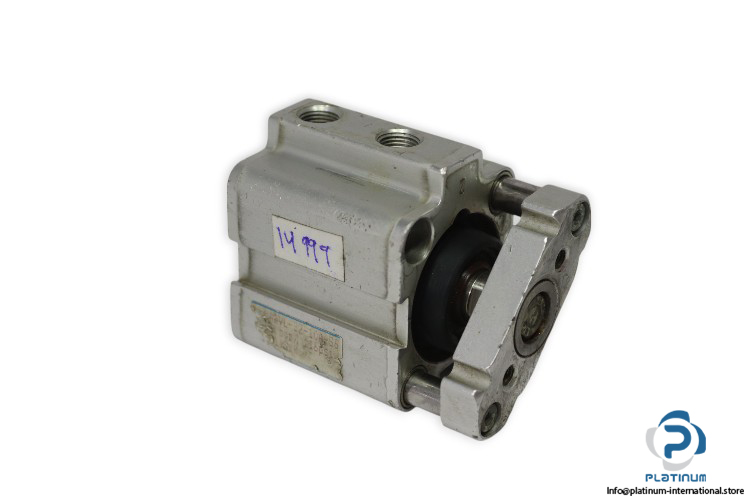

Festo ADVL-32-10A-S6 Short-Stroke Cylinder
A compact and efficient pneumatic cylinder designed for precise linear motion, high repeatability, and long-term reliability. Ideal for automation tasks requiring short strokes, fast response, and consistent force output.
Manufacturer: Festo
Type: Short-Stroke Cylinder
Model: ADVL-32-10A-S6
Technical Information
- Media: Fluid
- Operating Pressure: 8 bar
- Connection: 1/8 inch
- Mode of Operation: Double Acting
- Shape Piston: Cylinder
- Sensing Type: Magnetic
- Piston, Nominal Size: 32
- Stroke: 10 mm
- Piston Rod Diameter: 12 mm
- End of Piston Rod: Female Thread
- Piston Rod Thread: M6
- Housing Material: Anodized Aluminum
- Ambient Temperature: -20 to 60 °C
Enhance your system performance: The ADVL-32-10A-S6 offers a powerful combination of compact design, smooth movement, and long service life. Its durable anodized aluminum body, precise double-acting mechanism, and magnetic sensing compatibility make it an excellent choice for robotics, pick-and-place systems, high-speed automation lines, and space-constrained industrial applications.
