Manufacturer: FESTO

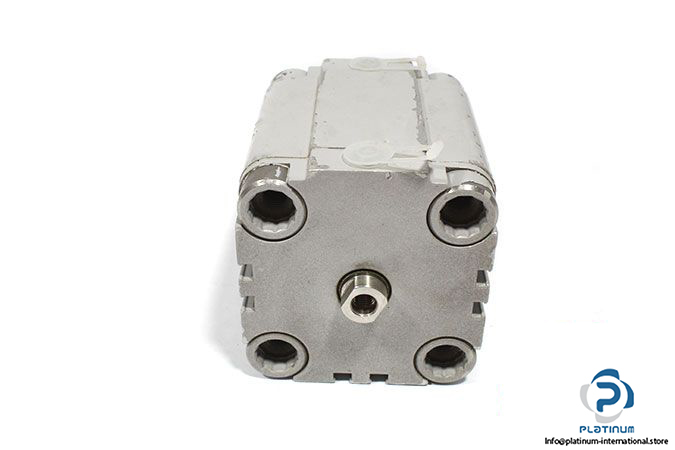

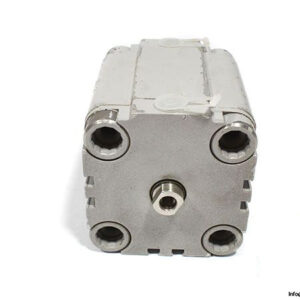

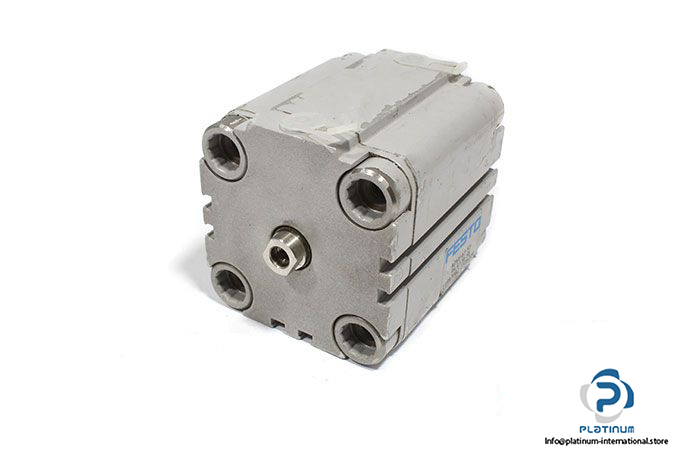

Type: Double-Acting Compact Cylinder

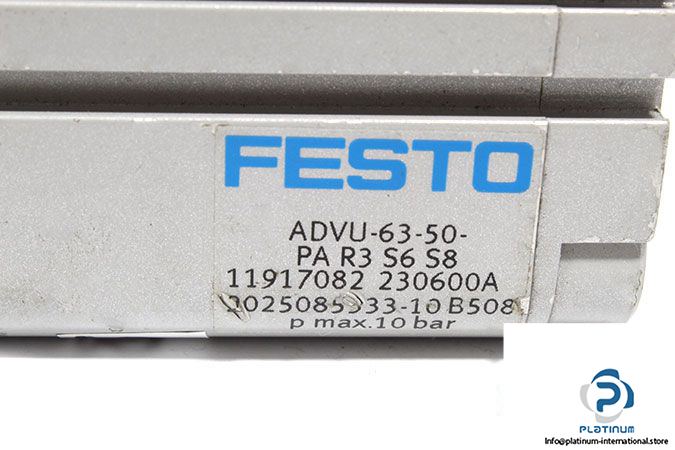

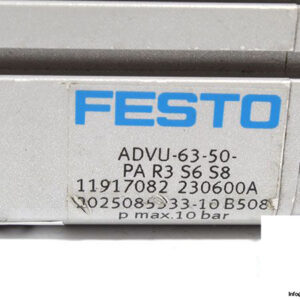

Model: ADVU-63-50-PA-R3-S6-S8

Part No.: 11917082

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 50 mm

Piston Diameter: 63 mm

Piston rod thread: Female thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Variant: Increased corrosion protection

Pneumatic Connection: G 1/8

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 120 °C

Weight: 1.6 kg
