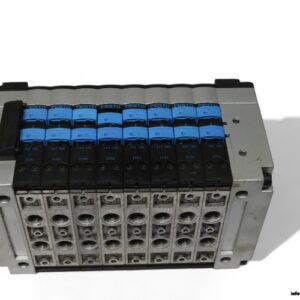

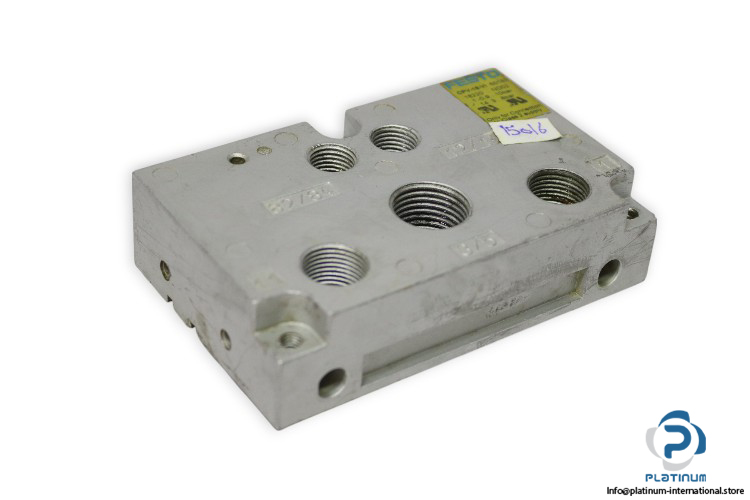

FESTO CPV-18-VI VALVE TERMINAL

The Festo CPV-18-VI is a high-performance valve terminal system designed for modular and flexible pneumatic automation. With multiple connection options and robust construction, this valve terminal provides superior integration and control in demanding environments.

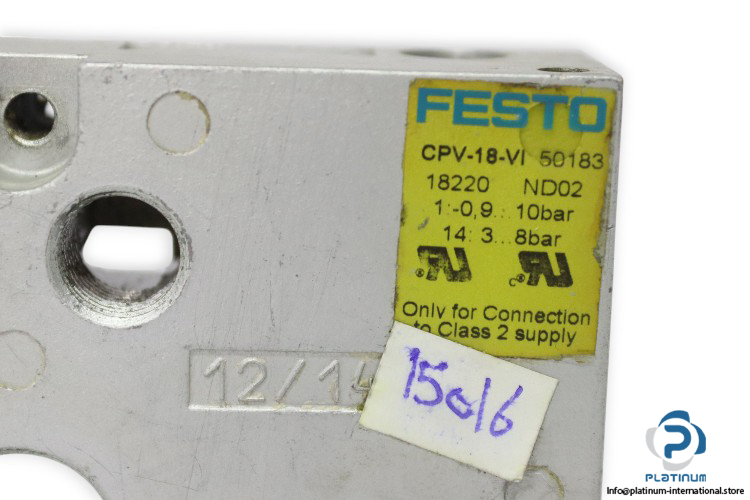

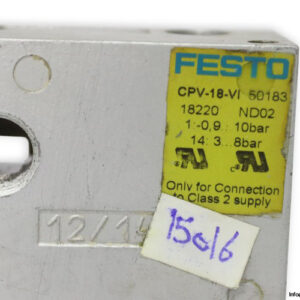

Manufacturer: Festo
Type: Valve Terminal
Model: CPV-18-VI
Part No.: 18220
Code: 50183
Series: ND02

Technical Information

• Pressure: 1
• Only for: Connection to Class 2 supply
• Electrical Control: AS-Interface, CPI installation system, Individual connection, Fieldbus, Multi-pin plug
• Terminal Type: 10
• Operating Medium: Compressed air
• Ambient Temperature: -5 °C to 50 °C
• Degree of Protection: IP65
• Operating Pressure: -0.9 bar to 10 bar
• Pilot Pressure: 3 bar to 8 bar
• Max. Number of Valve Positions: 8
• Max. Number of Valve Functions: 16
• Max. Number of Pressure Zones: 2
• Type of Actuation: Electric
• Valve Size: 18 mm
• Max. Standard Nominal Flow Rate: 1600 l/min at 18 mm
• Width: 18 mm
• Pneumatic Connection: ¼ inch

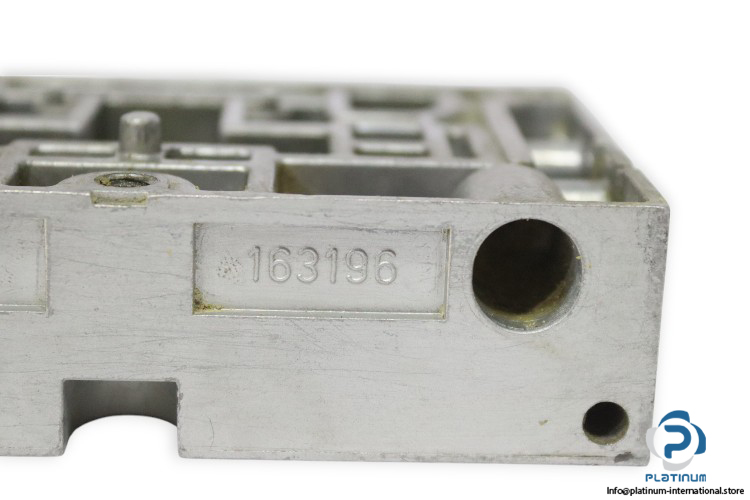

• Attached With: FESTO 163196 END PLATE (Model: CPV18-EPL-E)
