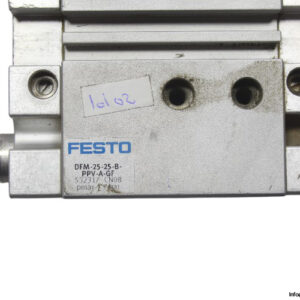

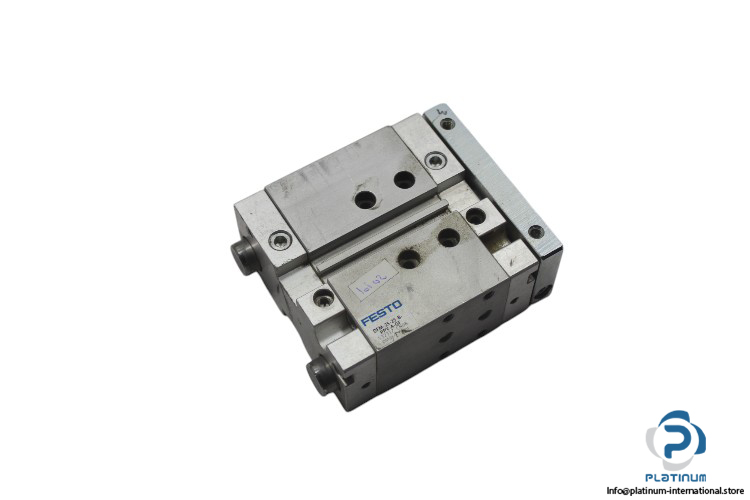

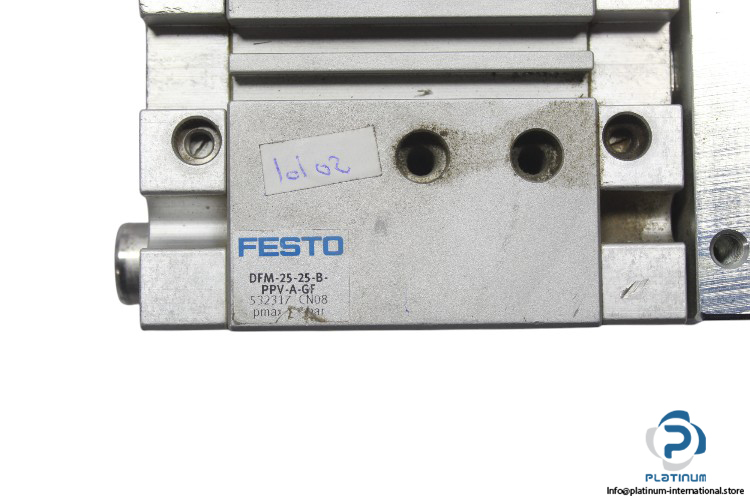

FESTO DFM-25-25-B-PPV-A-GF GUIDED ACTUATOR

festo-DMF-25-25-B-PPV-A-GF-guided-actuator(used)
festo-DMF-25-25-B-PPV-A-GF-guided-actuator(used)-1
festo-DMF-25-25-B-PPV-A-GF-guided-actuator(used)
festo-DMF-25-25-B-PPV-A-GF-guided-actuator(used)-1
Used
Manufacturer: Festo

FESTO DFM-25-25-B-PPV-A-GF GUIDED ACTUATOR

Guided Actuator

FESTO DFM-25-25-B-PPV-A-GF is a precision-engineered guided actuator featuring a 25 mm stroke length, sliding guide, and double-acting operation. Designed for industrial applications requiring stability, accuracy, and high durability, it operates at pressures up to 10 bar and temperatures up to 120°C.

SKU: 1073175 Category: Tags: , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

FESTO DFM-25-25-B-PPV-A-GF Guided Actuator

The FESTO DFM-25-25-B-PPV-A-GF Guided Actuator is a precision-engineered pneumatic actuator designed for applications requiring high accuracy and durability. Featuring a sliding guide for stable movement, this double-acting actuator provides consistent performance in demanding industrial environments. It is built with heat-resistant seals for operation up to 120°C and includes elastic cushioning rings for smooth motion control.

  • Manufacturer: FESTO
  • Type: Guided Actuator
  • Model: DFM-25-25-B-PPV-A-GF
  • Part No.: 532317

Technical Specifications

  • Stroke Length: 25 mm
  • Piston Diameter: 25 mm
  • Max. Operating Pressure: 10 bar
  • Mode of Operation: Double acting
  • Cushioning: Elastic cushioning rings/pads at both ends
  • Guide: Sliding guide
  • Structural Design: Guide
  • Position Sensing: For proximity sensing
  • Variant: Heat-resistant seals max. 120°C
  • Pneumatic Connection: G1/8
  • Housing Material: Wrought aluminum alloy
  • Ambient Temperature: -20 … 120 °C
Weight1,5 kg
