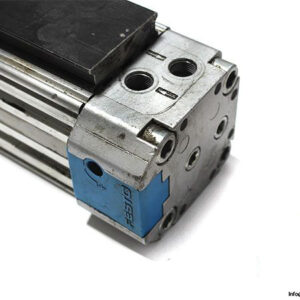

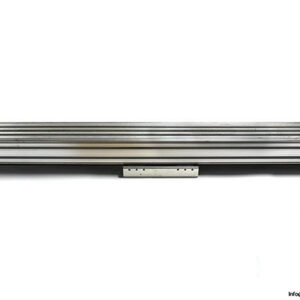

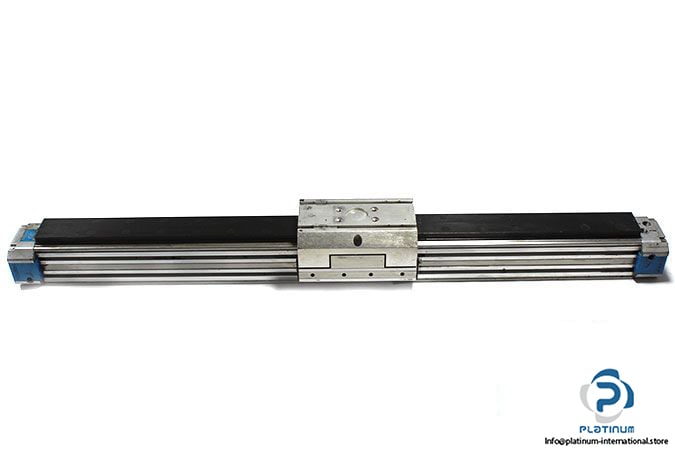

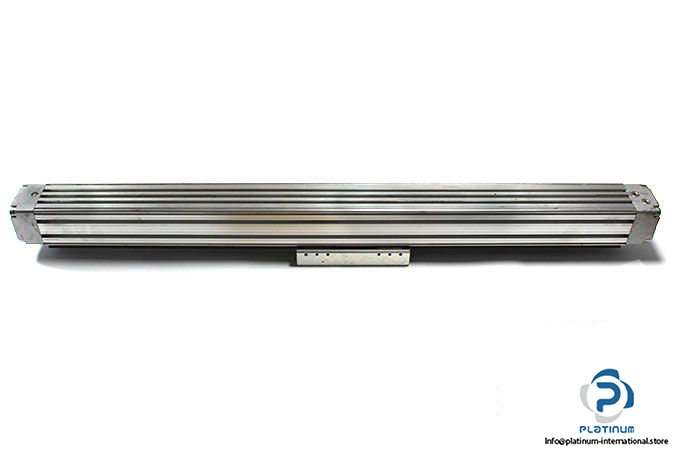

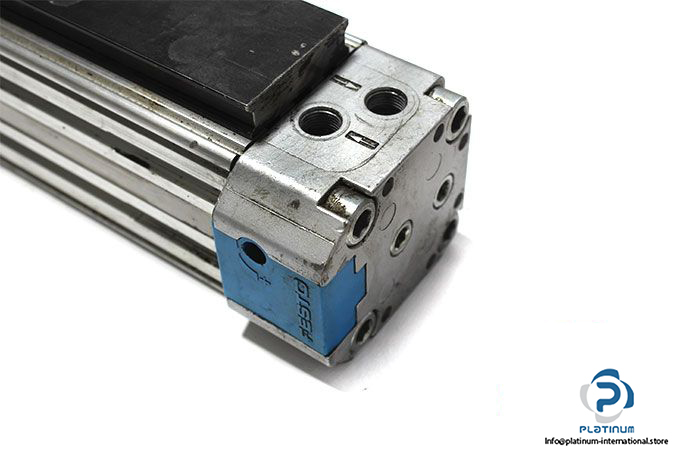

Manufacturer: FESTO

Type: Linear Actuator

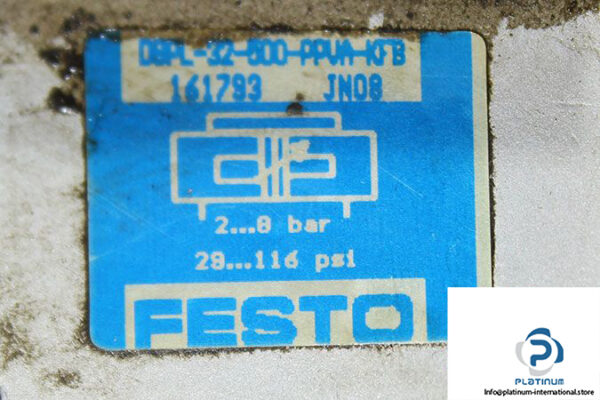

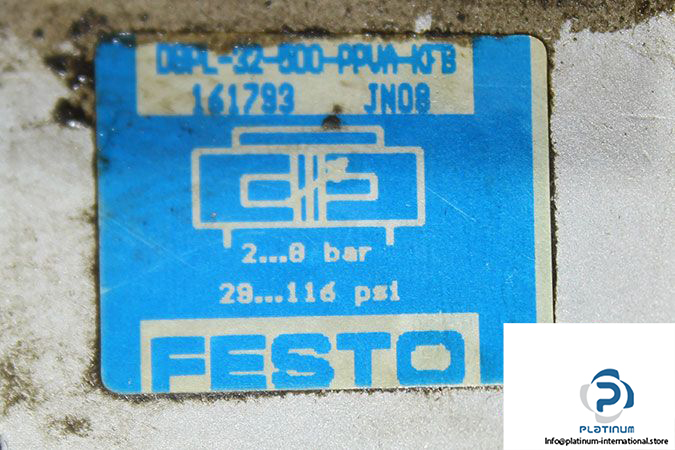

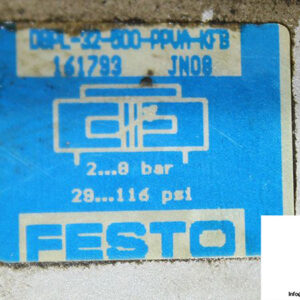

Model: DGBL-32-500-PPVA-KFB

Part No: 161793

Materials

• Cover: Coated Cast Aluminum
• Seals: NBR TPE-U(PU)
• Housing Material: Aluminum Anodized

Piston Diameter: 32 mm

Cushioning: Adjustable at Both Ends

Stroke: 500 mm

Cushioning Length: 20 mm

Operating Pressure: 2…8 bar

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 6.62 kg
